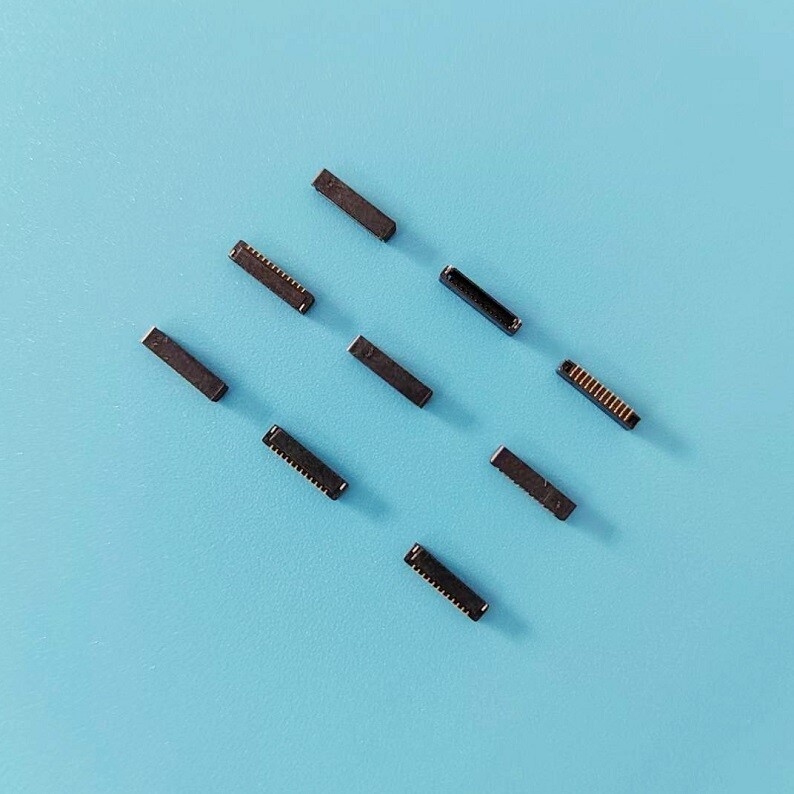

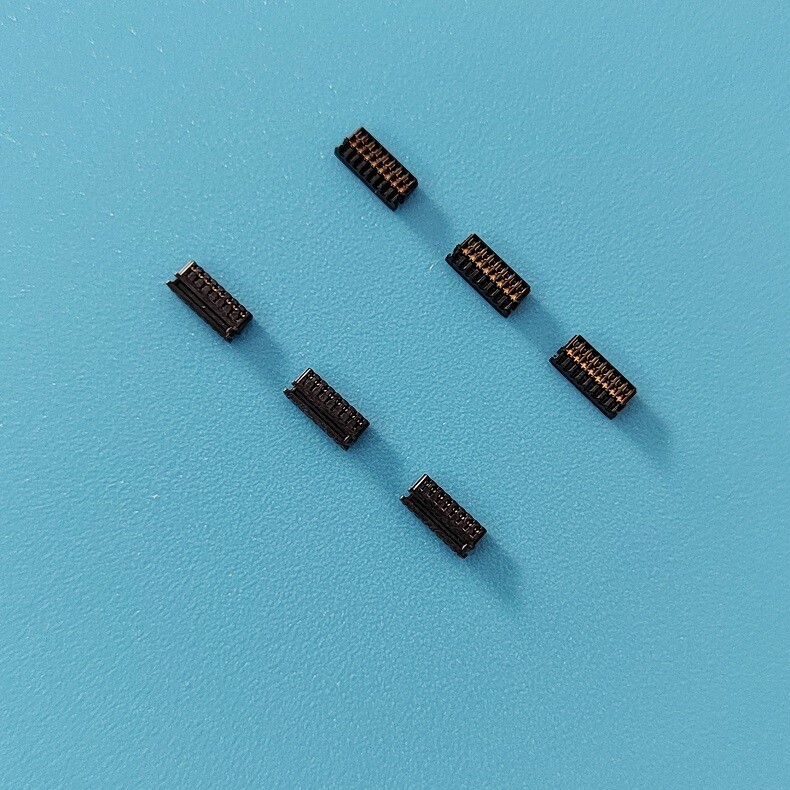

A0600(XSR)Made in China XSR 0.60mm Housing/Terminal/SMT Wafer
Product detailsSpecifications:
Rated current: 0.2A AC, DC
Rated voltage: 30V DC
Temperature range: -40 deg C to +105 deg C
Contact resistance: 30m Omega Max.
Insulation resistance: 100M Omega Min.
Withstand pressure: 200V AC/minute
Housing: LCP 94V-0 black
Terminal material: phosphor copper gold plated
Pin body material: LCP-94V-0 black
PIN Pin material: phosphor copper plated/tin and gold
Pin holder ground disc material: phosphor tin plated
