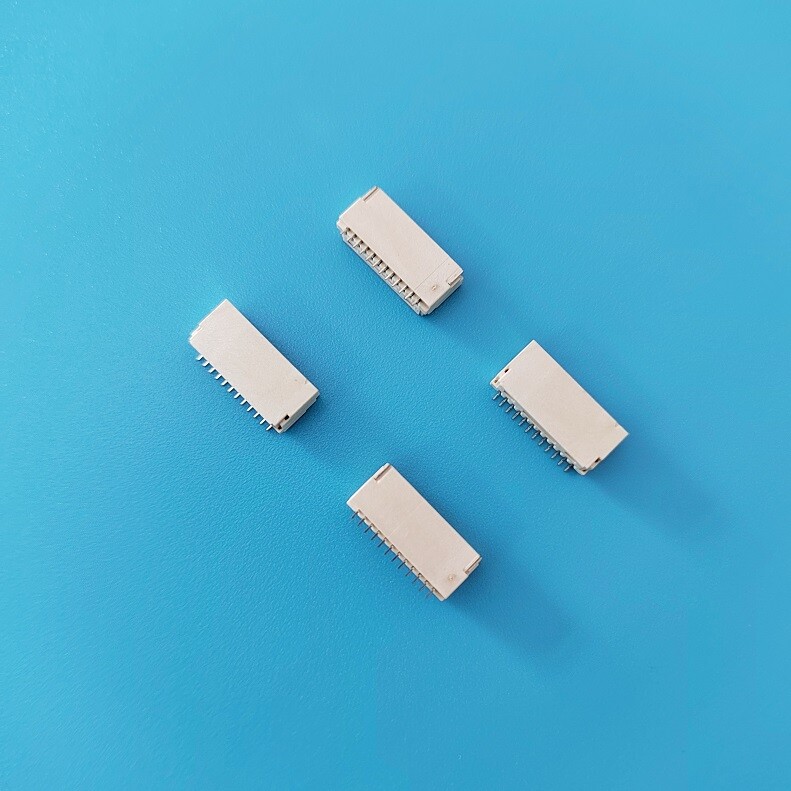

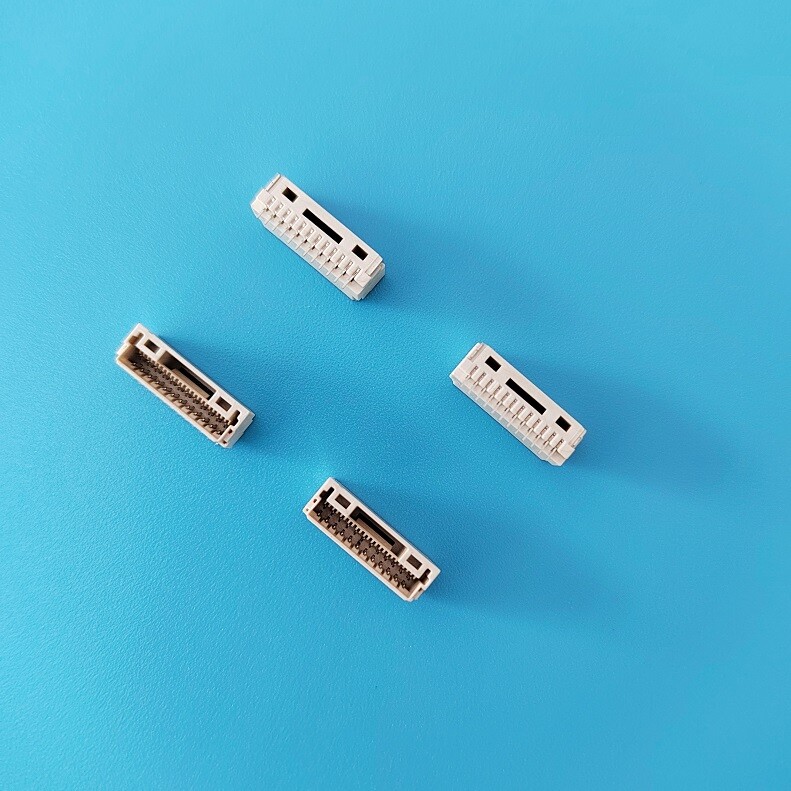

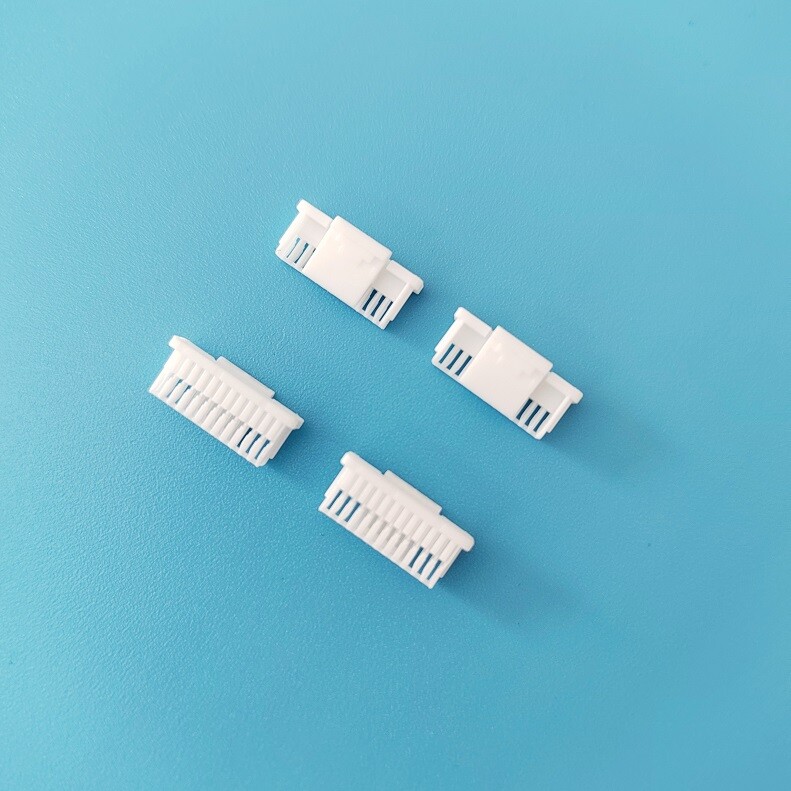

A1010(NSH)alternative NSH 1.00 Housing Terminal Wafer
Product detailsSpecifications:
Rated current: 1A AC, DC
Rated voltage: 50V DC
Temperature range: -25 deg C to +105 deg C
Contact resistance: 30m Omega Max.
Insulation resistance: 100M Omega Min.
Voltage: 500V AC/minute
Housing: PA66 94V-0 White

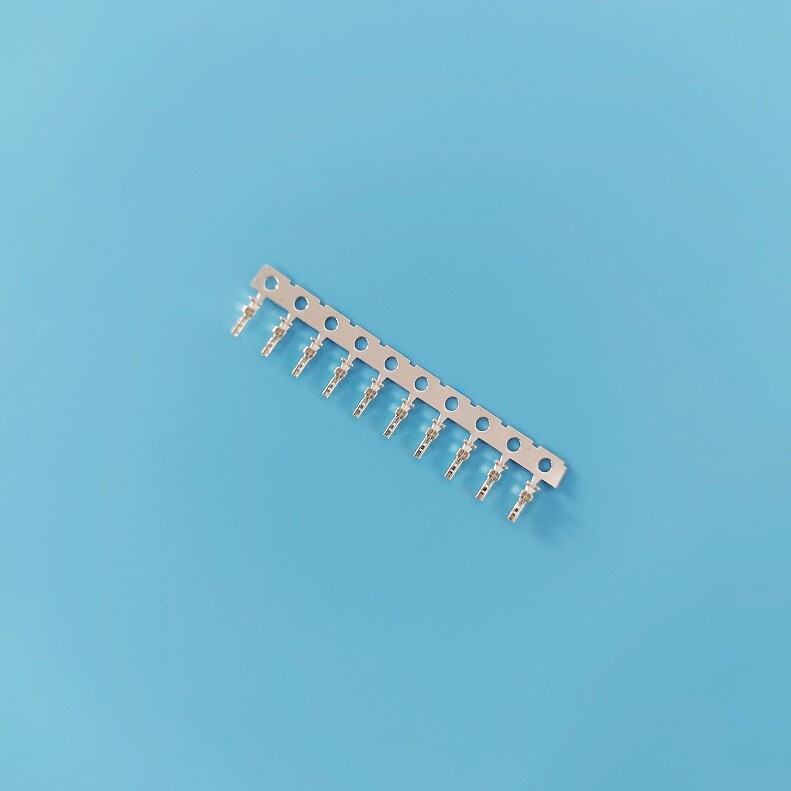

Terminal material: phosphor copper tin/gold plated
SMT pin body material: LCP-94V-0 natural color
PIN PIN material: phosphorus copper tin/gold plating
Pin holder ground disc material: brass tin plated
