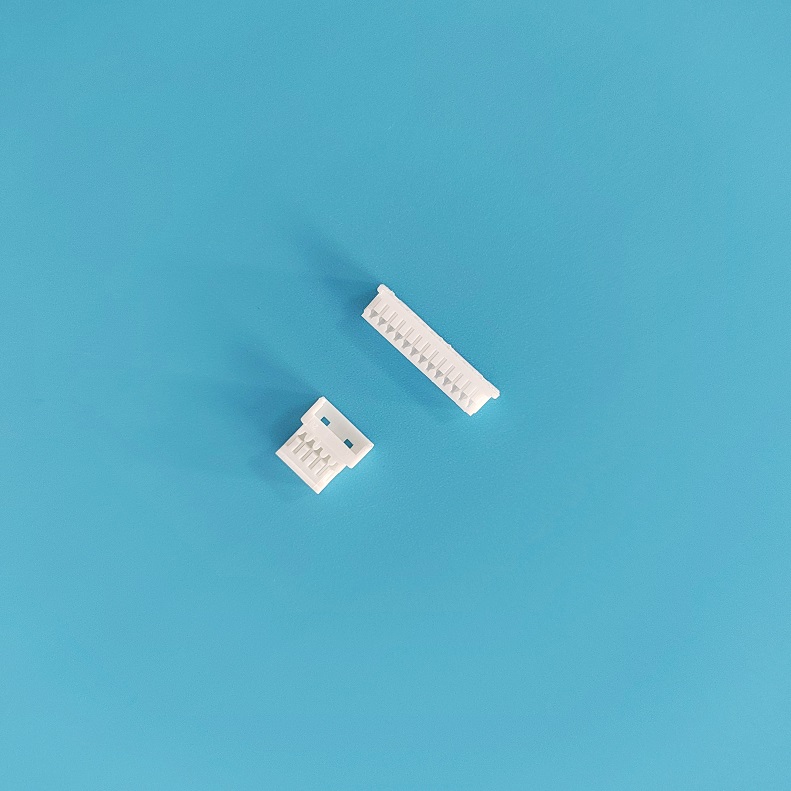

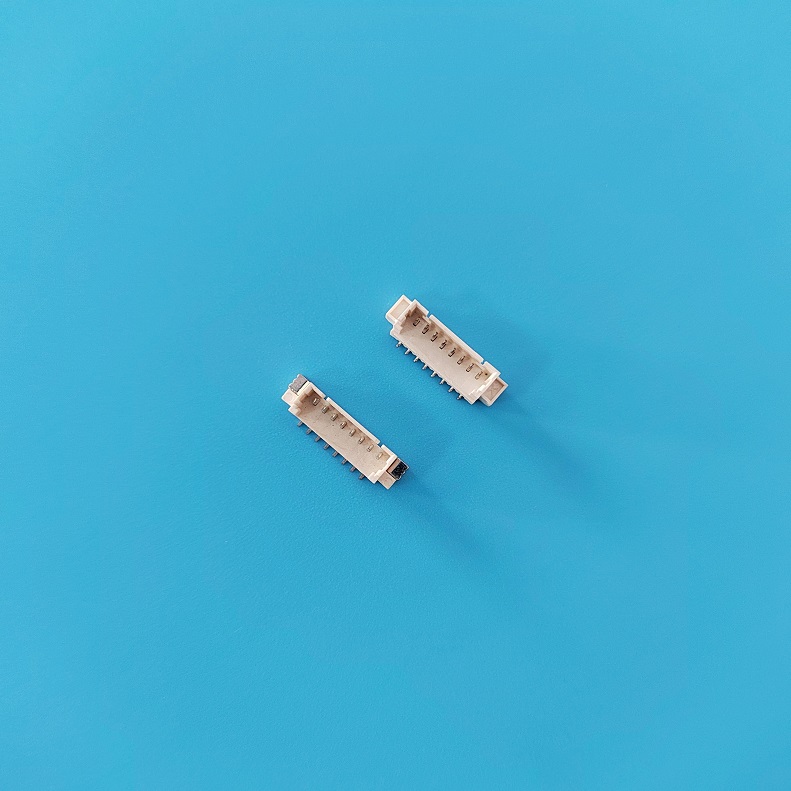

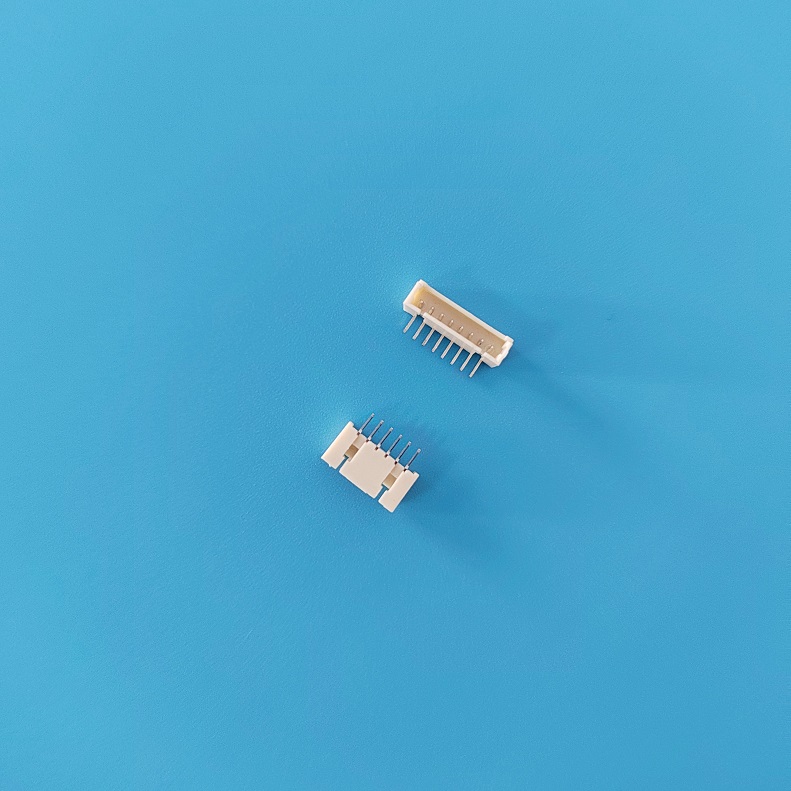

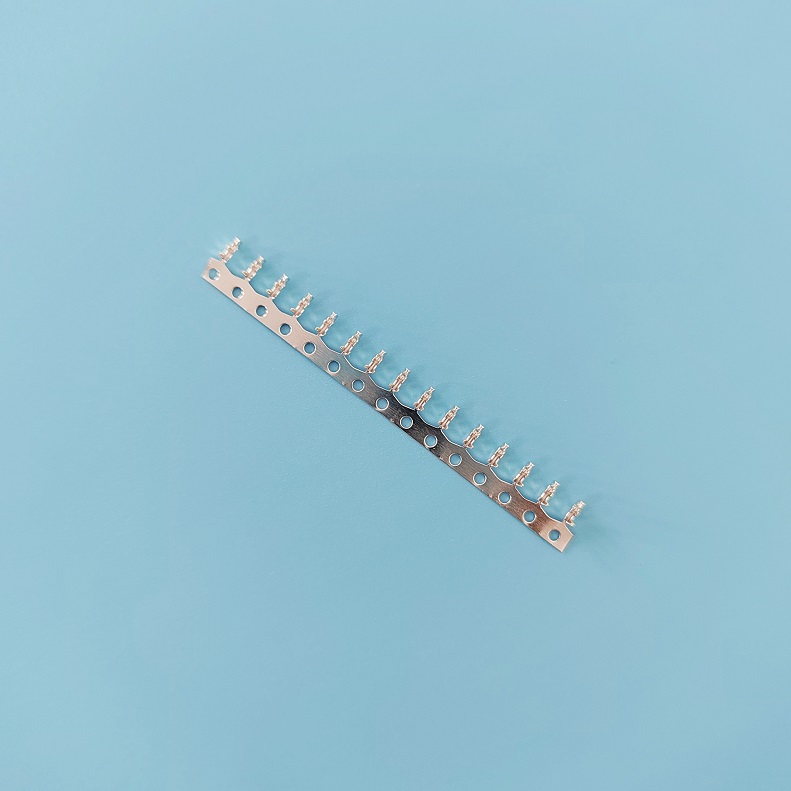

A1250(51021)Made in China 51021Housing Terminal DIP SMT Wafer
Product detailsSpecifications:
Rated current: 1A AC, DC
Rated voltage: 125V DC
Temperature range: -40 deg C to +105 deg C
Contact resistance: 20m Omega Max.
Insulation resistance: 100M Omega Min.
Voltage: 500V AC/minute
Housing: PA66 94V-0 white/black
Terminal material: phosphor copper tin/gold plated
DIP pin body material: PA46/PA66 94V-0 white/gray
SMT pin body material: LCP 94V-0 natural color
PIN PIN material: phosphorus copper tin/gold plating
Pin holder ground disc material: brass tin plated
