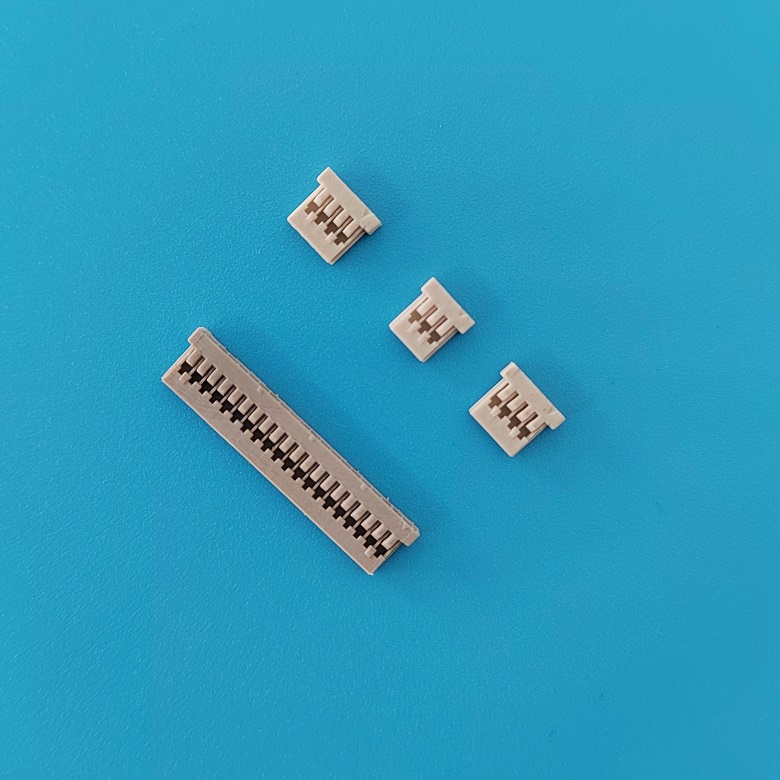

A1253(DF14)Made in China DF14 1.25mm Housing Terminal Wafer Cable
Product detailsSpecifications:
Rated current: 1A AC, DC
Rated voltage: 150V DC
Temperature range: -40 deg C to +105 deg C
Contact resistance: 30m Omega Max.
Insulation resistance: 500M Omega Min.
Voltage: 500V AC/minute
Housing: PA66 94V-0 grey/white/beige

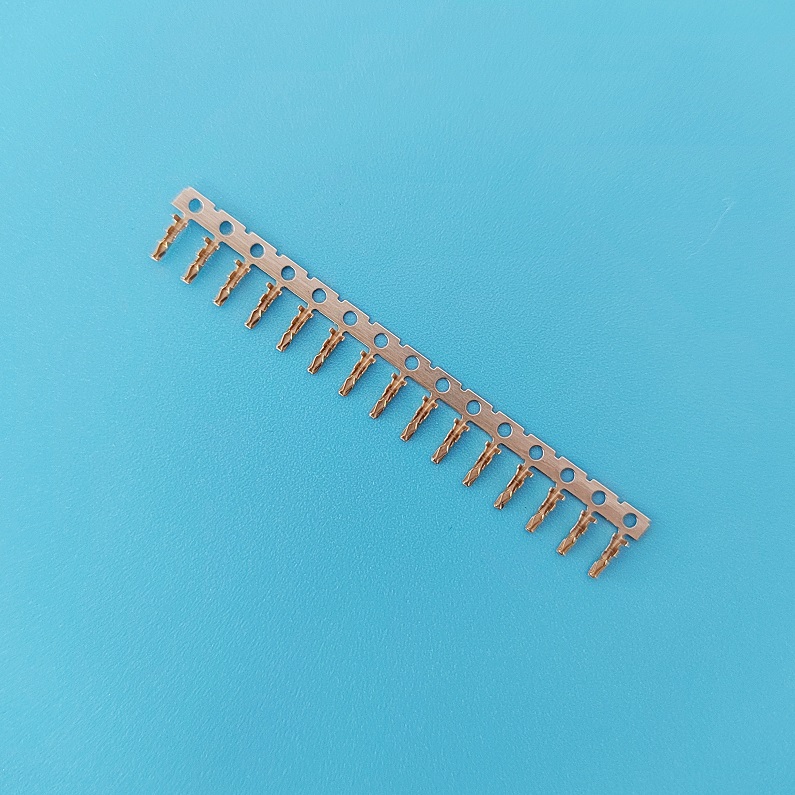

Terminal material: phosphor copper tin/gold plated

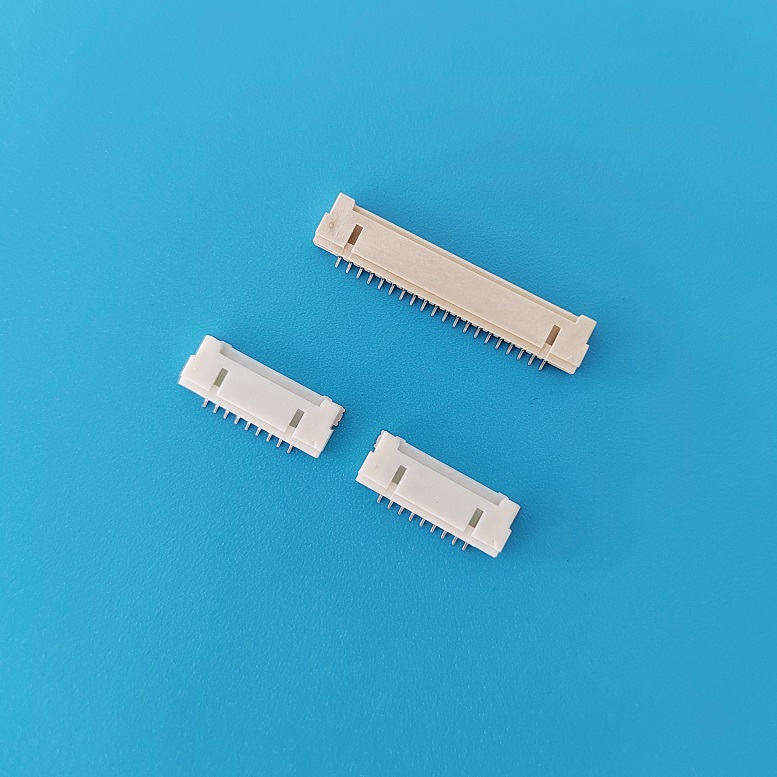

SMT pin body material: PA6T 94V-0 natural color
PIN material: brass tinned/gold
Pin holder ground disc material: brass tin plated
