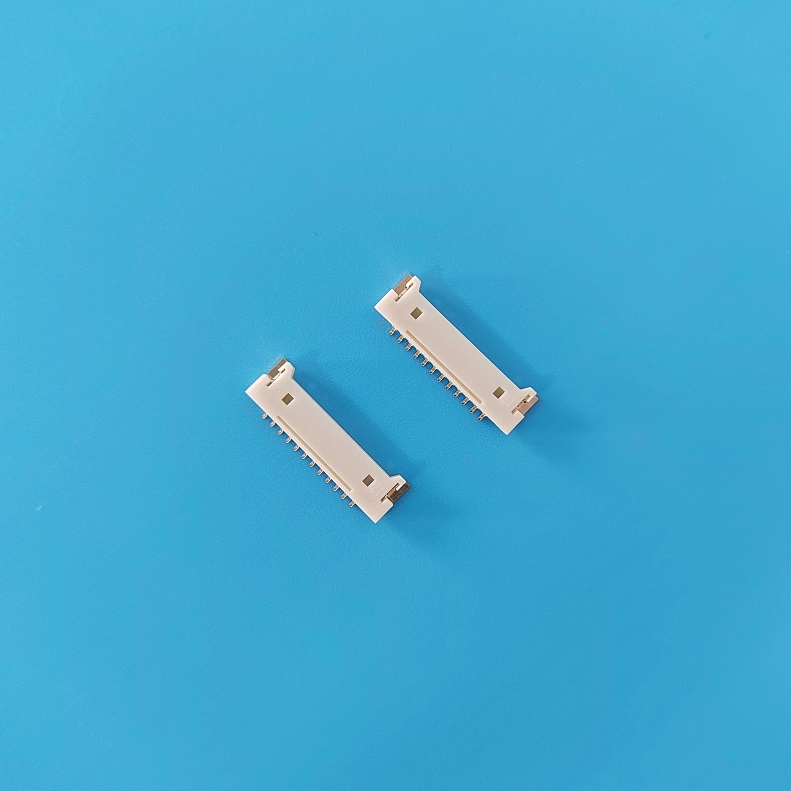

A1254(51146)alternative 1.25mm 51146 Housing Terminal Wafer
Product detailsSpecifications:
Rated current: 1A AC, DC
Rated voltage: 125V DC
Temperature range: -40 deg C to +105 deg C
Contact resistance: 20m Omega Max.
Insulation resistance: 100M Omega Min.
Voltage: 500V AC/minute

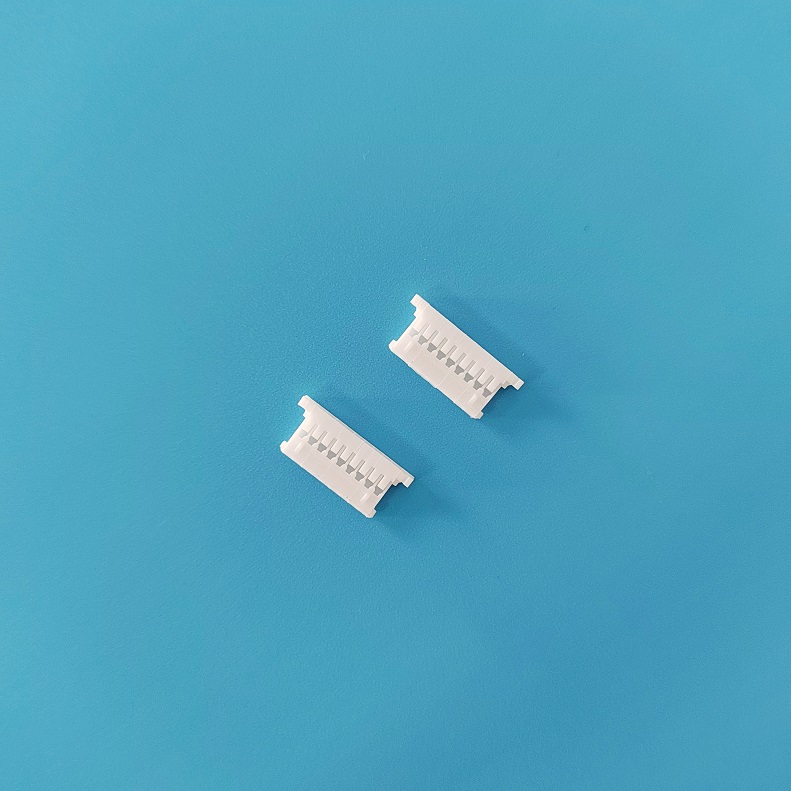

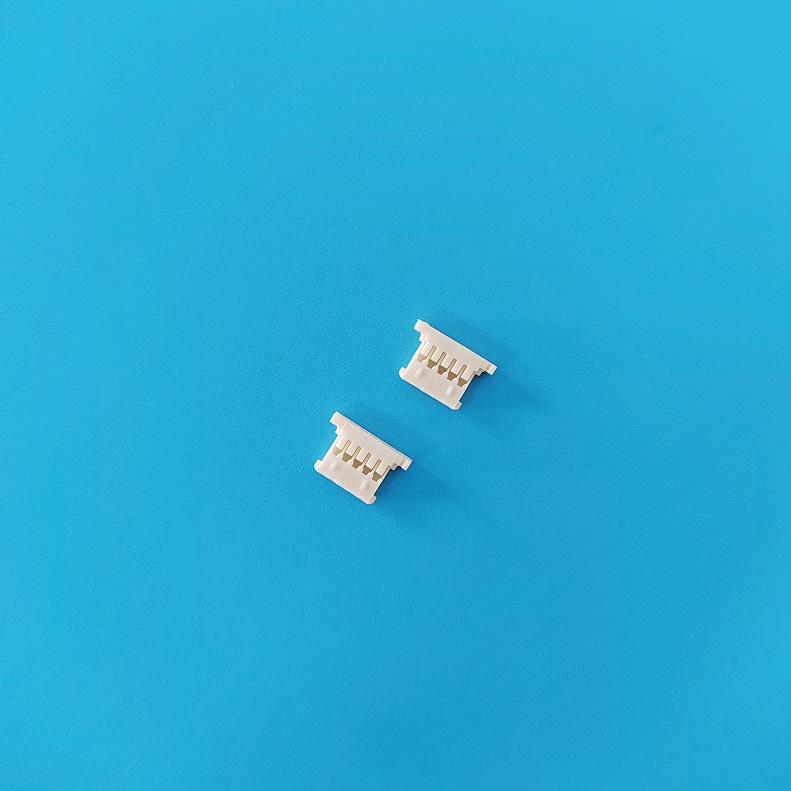

Housing: PA66 94V-0 White/beige

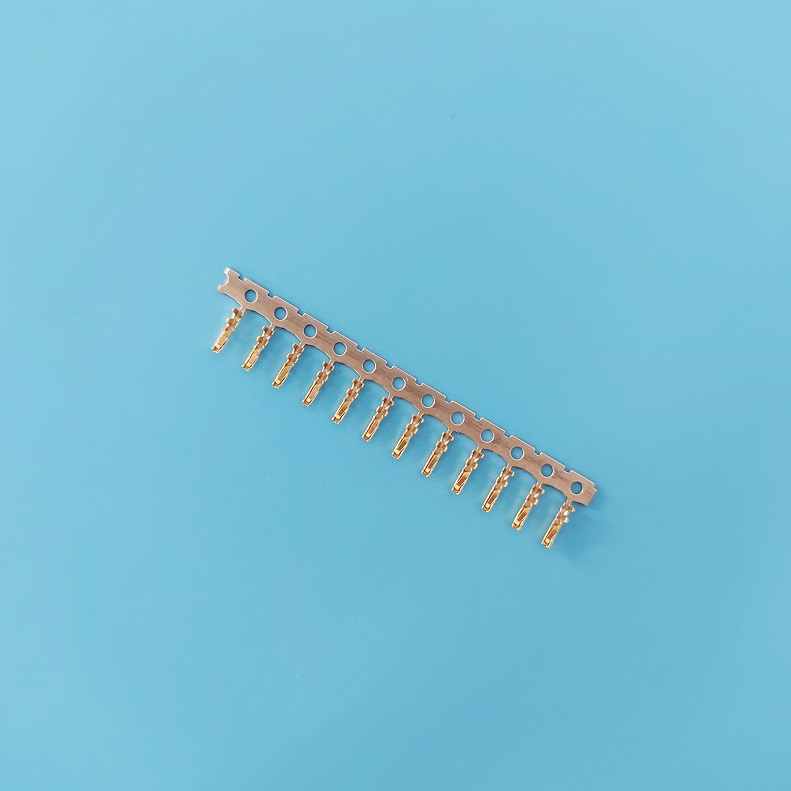

Terminal material: phosphor copper gold plated/tin
SMT pin body material: LCP/PA9T 94V-0 natural color
PIN Pin material: phosphor copper plated/tin
Pin holder ground disc material: brass tin plated
