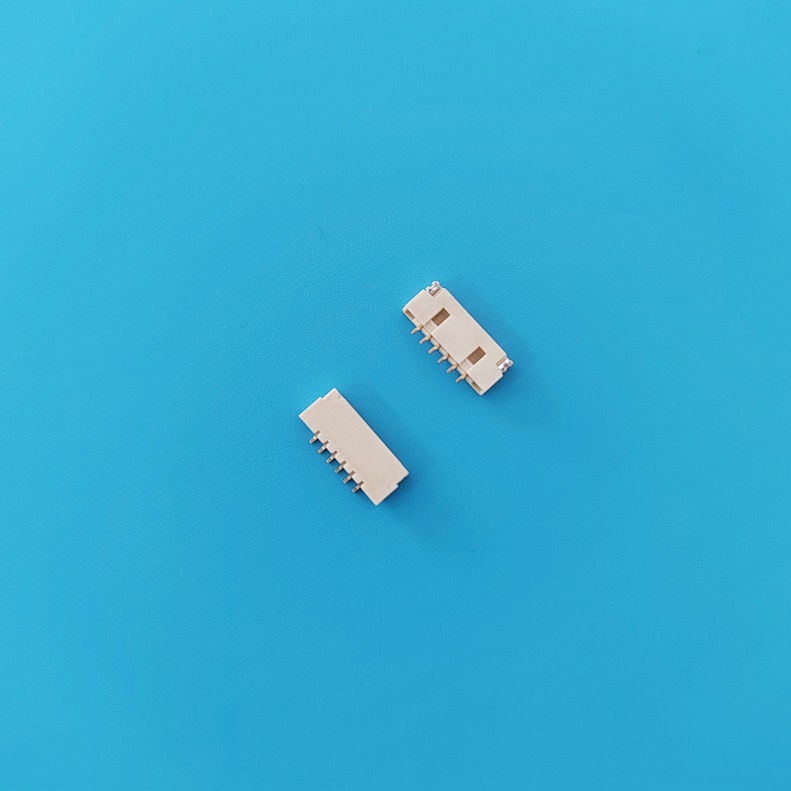

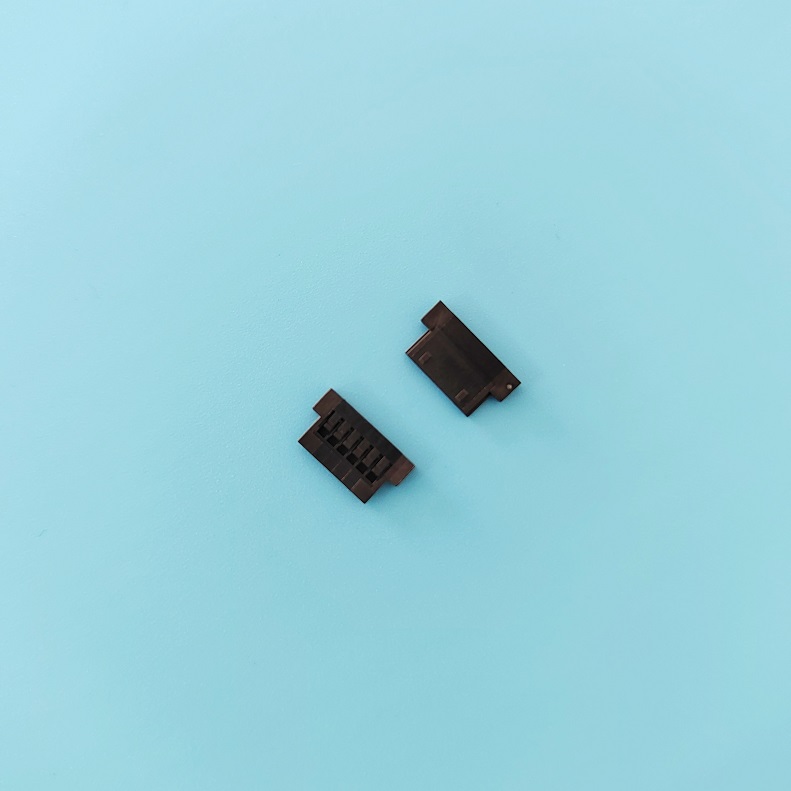

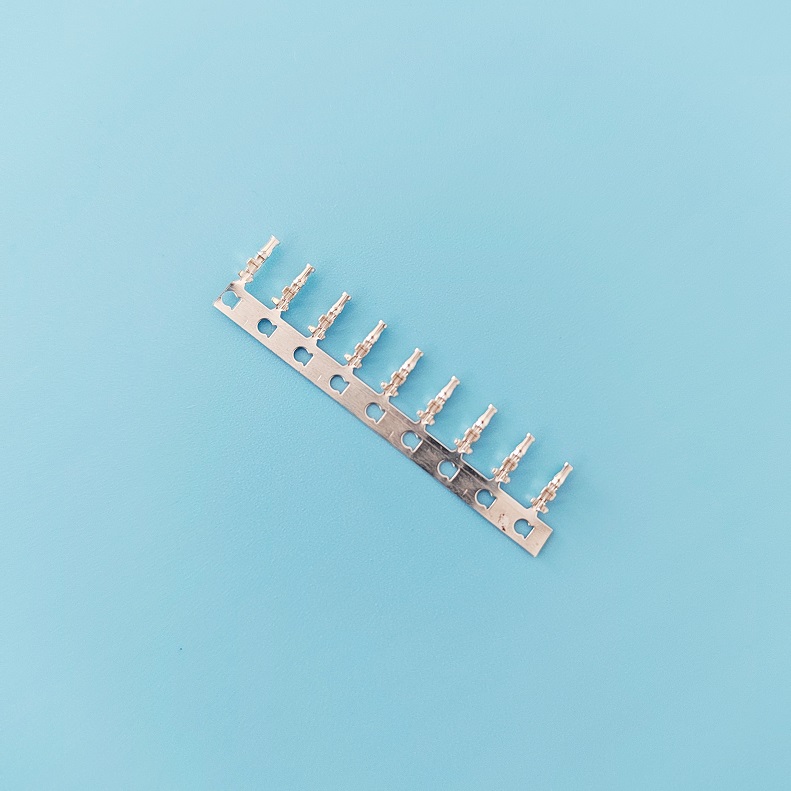

A1255(FI-S)alternative FI-S 1.25mm Housing Terminal Cbale Wafer
Product detailsSpecifications:
Rated current: 1A AC, DC
Rated voltage: 200V DC
Temperature range: -40 deg C to +105 deg C
Contact resistance: 40m Omega Max.
Insulation resistance: 100M Omega Min.
Voltage: 500V AC/minute
Housing: PA66 94V-0 black
Terminal material: phosphor copper gold plated/tin
SMT pin body material: LCP/PA6T 94V-0 natural color
PIN PIN material: phosphorus copper tin/gold plating
Pin holder ground disc material: brass tin plated
