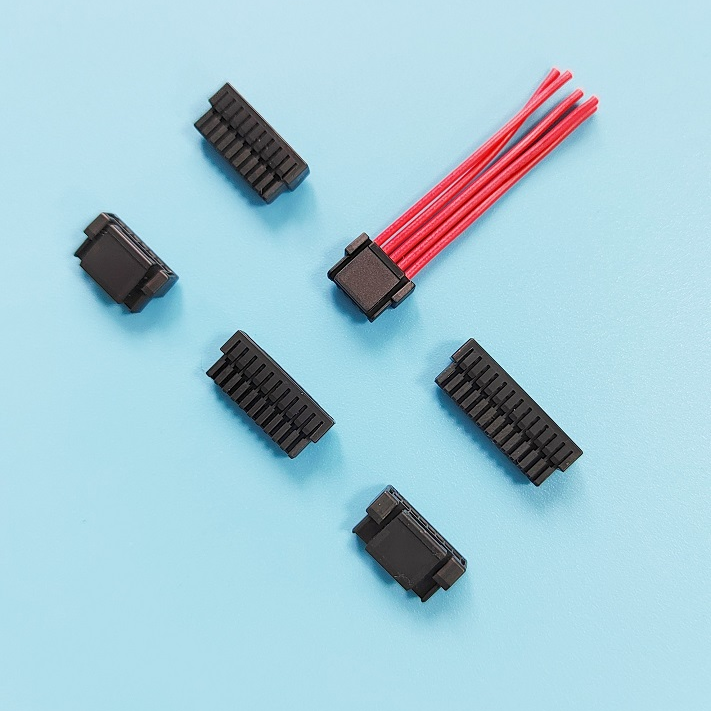

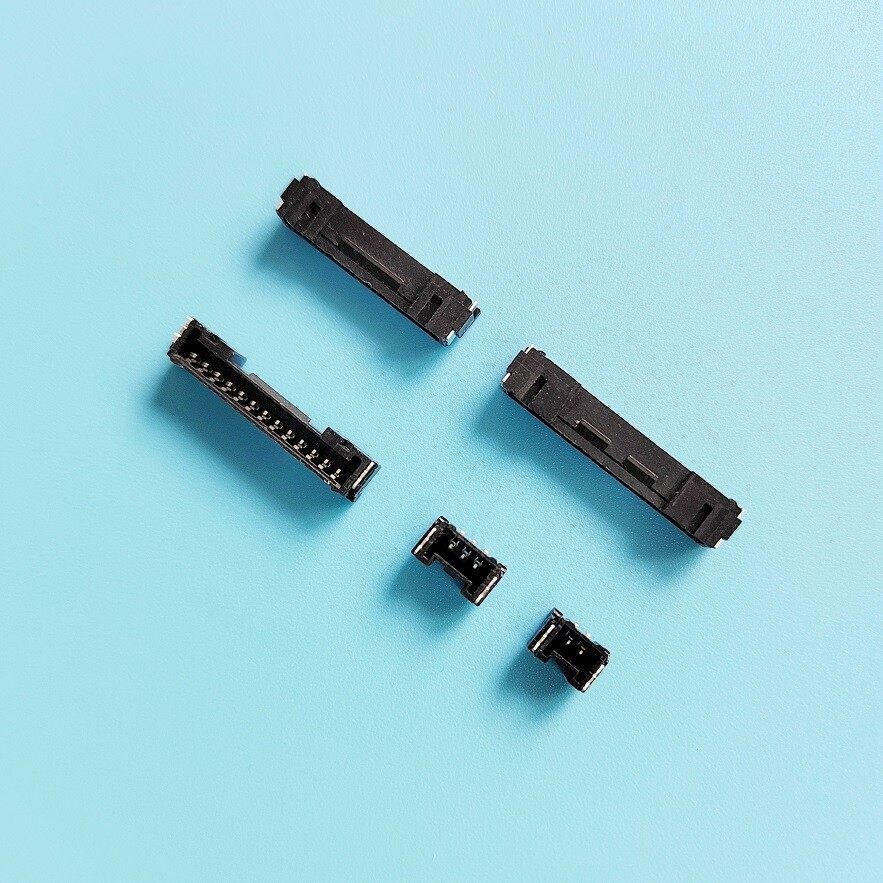

A1256(505565,505567,505567)Domestic replacement 505565,505567,505568 rubber shell terminal 1.25mm pin holder spot
Product detailsSpecifications:
Rated current: 1.5A AC, DC
Rated voltage: 50V DC
Temperature range: -25 deg C to +105 deg C
Contact resistance: 20m Omega Max.
Insulation resistance: 100M Omega Min.
Voltage: 500V AC/minute
Housing: PA66 94V-0 black/natural color
Terminal material: phosphor copper gold plated/tin
SMT pin body material: LCP/PA6T 94V-0 black/natural color
PIN Pin material: brass copper plated/tin
Pin base earth plate material: brass tinned
