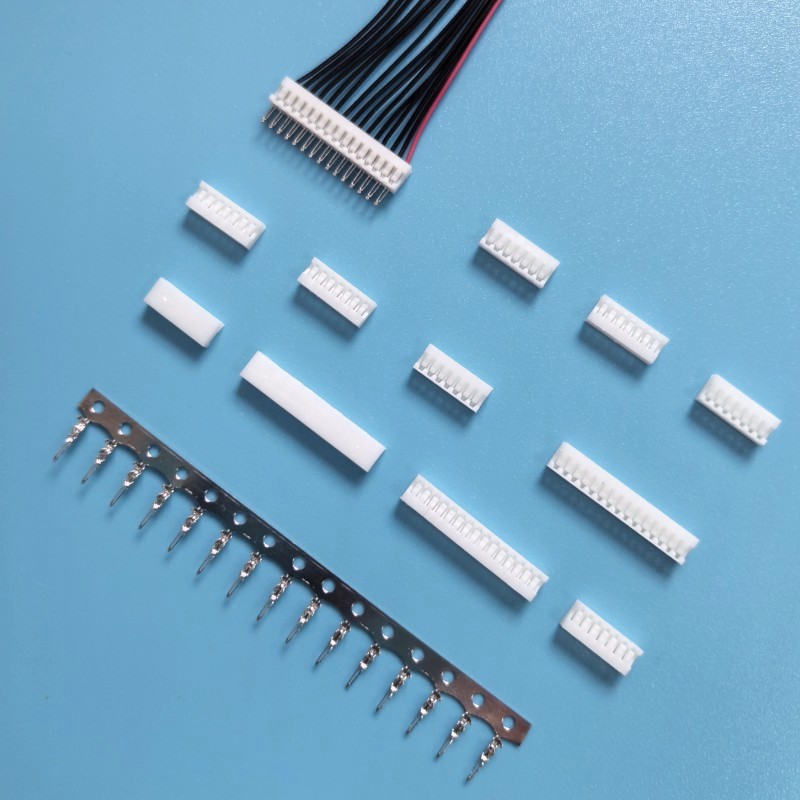

A1258(GH)alternative GH 1.25mm Housing Terminal Cable SMT Wafer
Product detailsSpecifications:
Rated current: 1A AC, DC
Rated voltage: 150V DC
Temperature range: -25 deg C to +105 deg C
Contact resistance: 30m Omega Max.
Insulation resistance: 500M Omega Min.
Voltage: 500V AC/minute

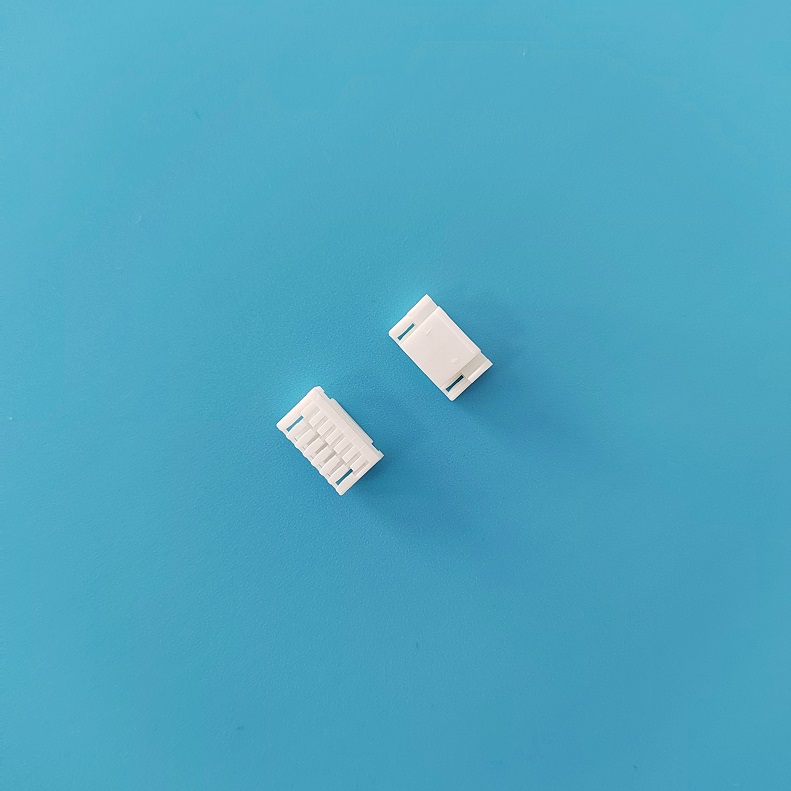

Housing: PA66 94V-0 White

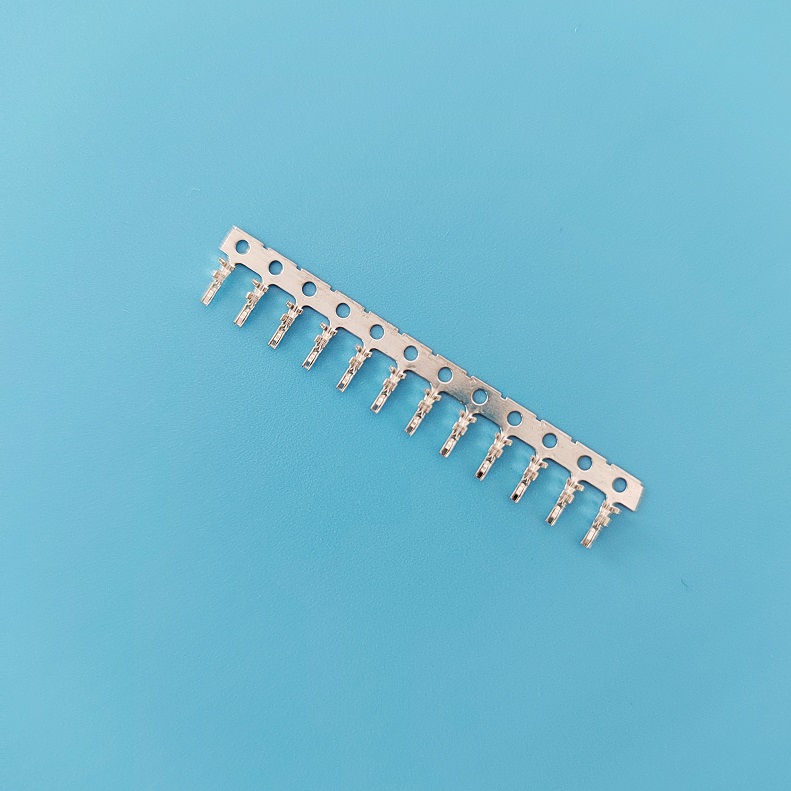

Terminal material: phosphor copper tin plating

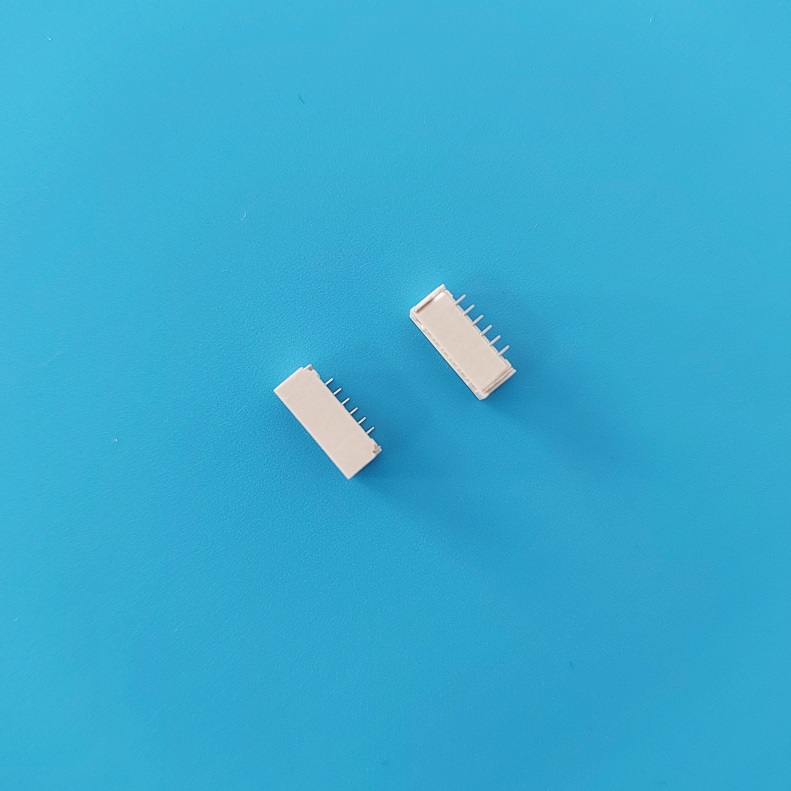

SMT pin body material: LCP 94V-0 natural color
PIN Pin material: phosphorus copper tin plating
Pin holder ground disc material: brass tin plated
