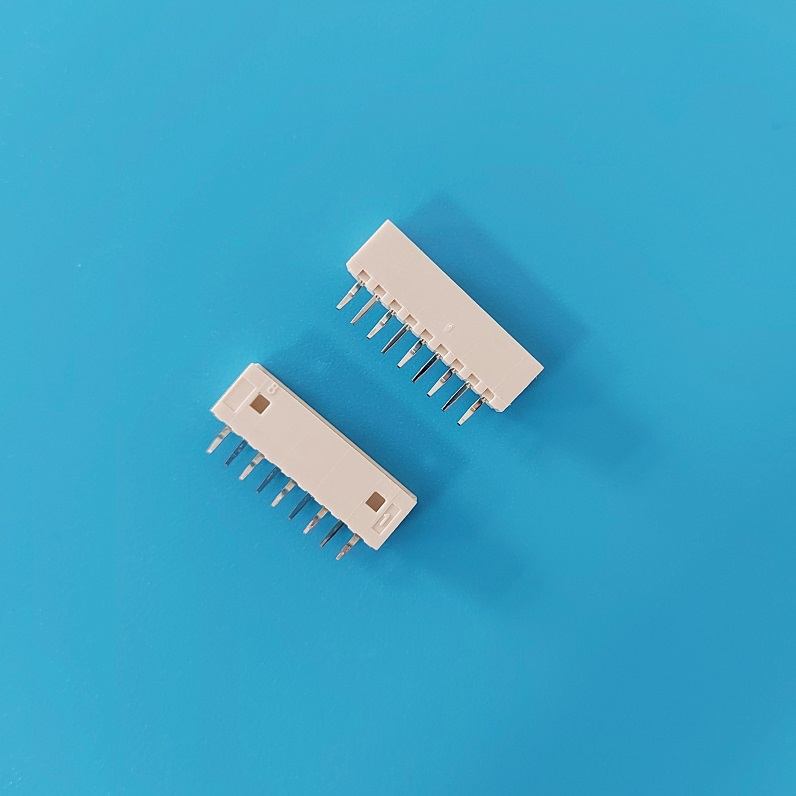

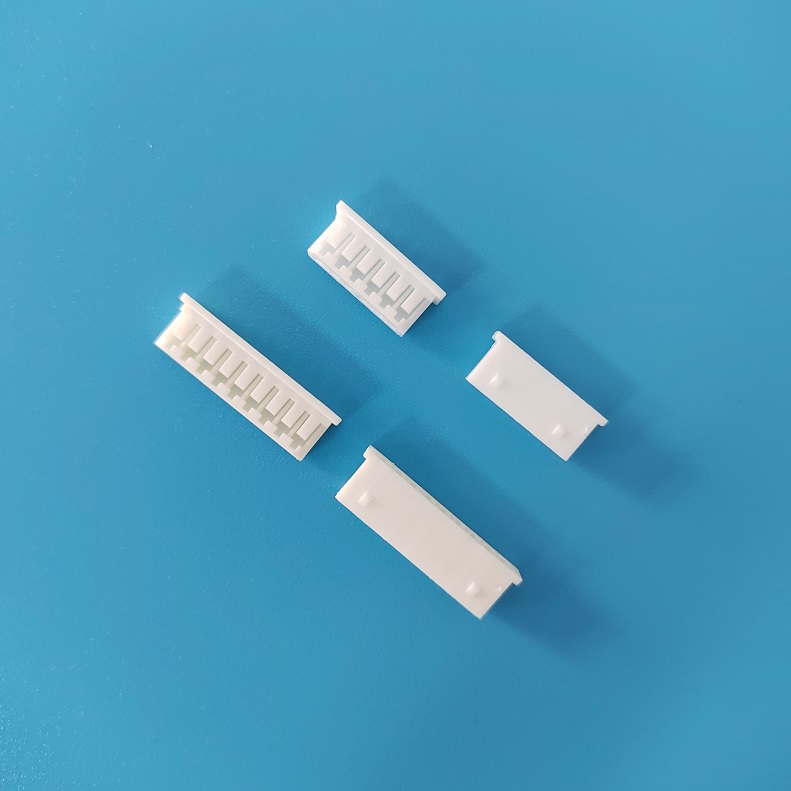

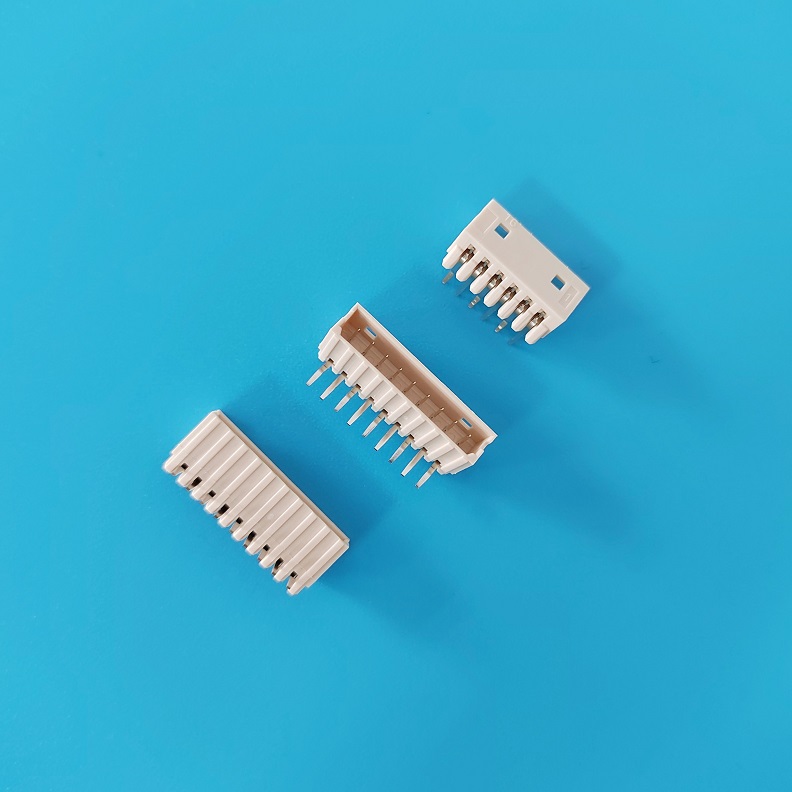

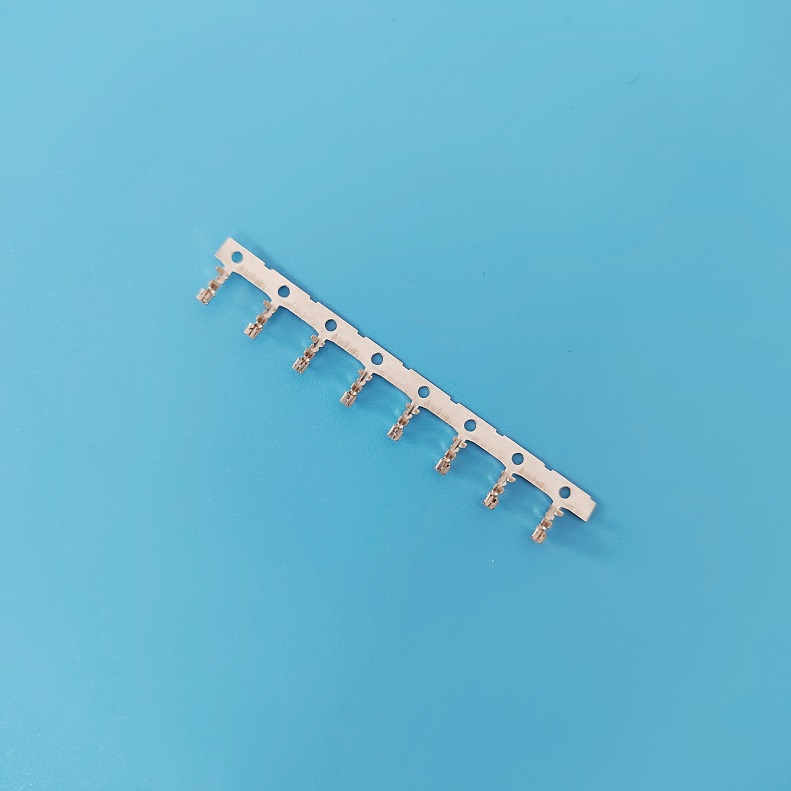

A2000(51004)alternative 51004 2.00mm Housing Terminal Cable Wafer
Product detailsSpecifications:
Rated current: 2A AC, DC
Rated voltage: 125V DC
Temperature range: -40 deg C to +105 deg C
Contact resistance: 20m Omega Max.
Insulation resistance: 1000M Omega Min.
Withstand pressure: 800V AC/minute
Housing: PA66 94V-0 White
Terminal material: phosphor copper tin plating
Pin body material: PA66 94V-0 Beige
PIN Pin material: phosphorus copper tin plating
