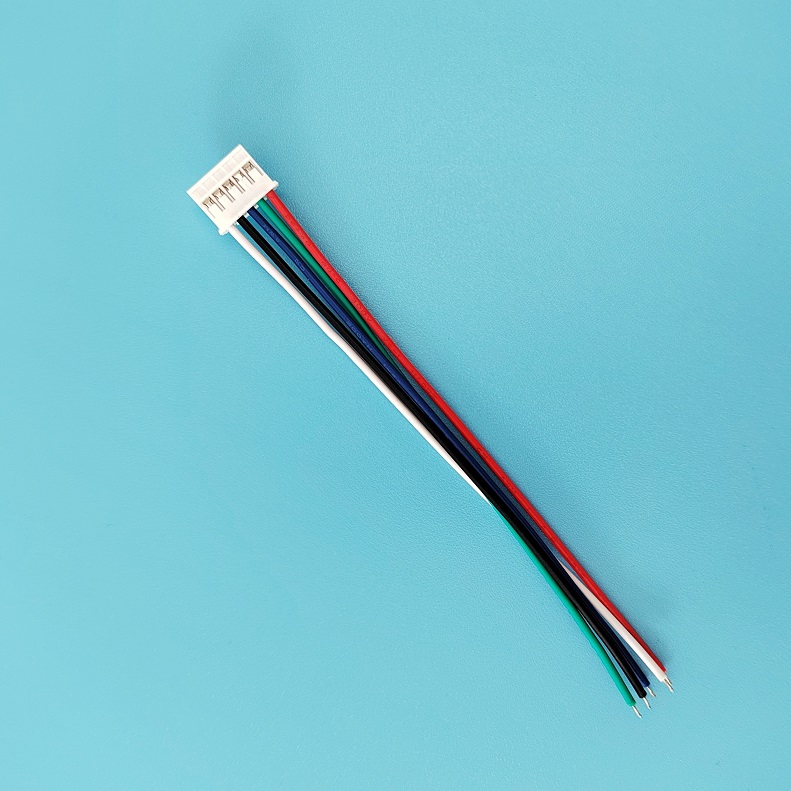

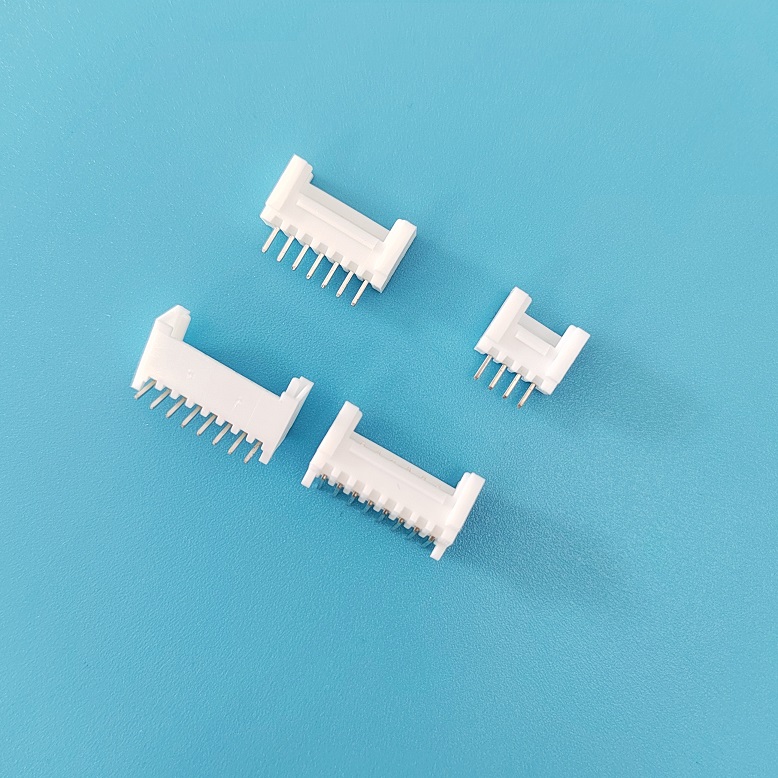

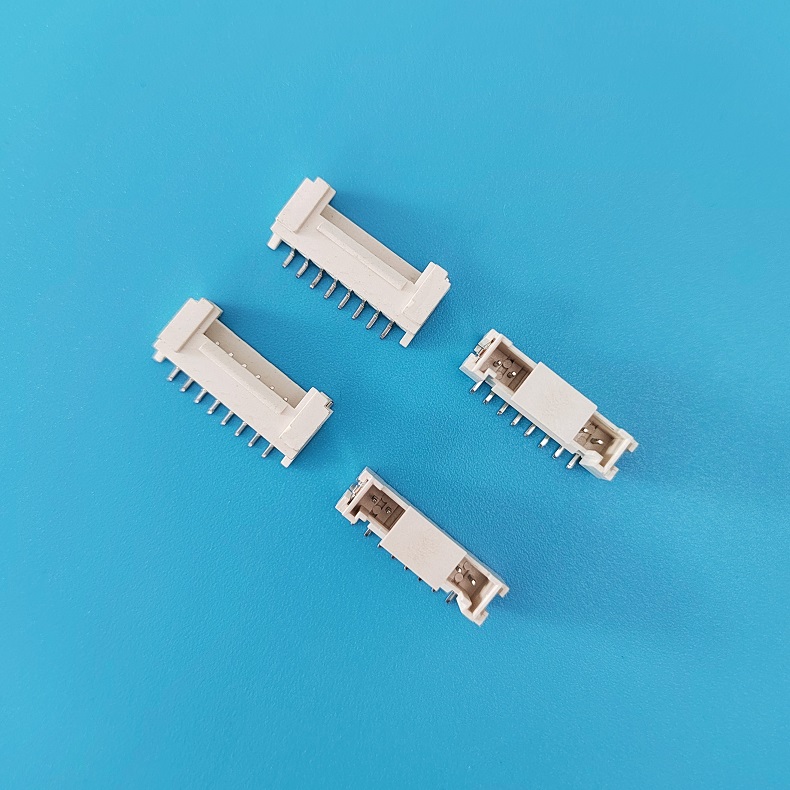

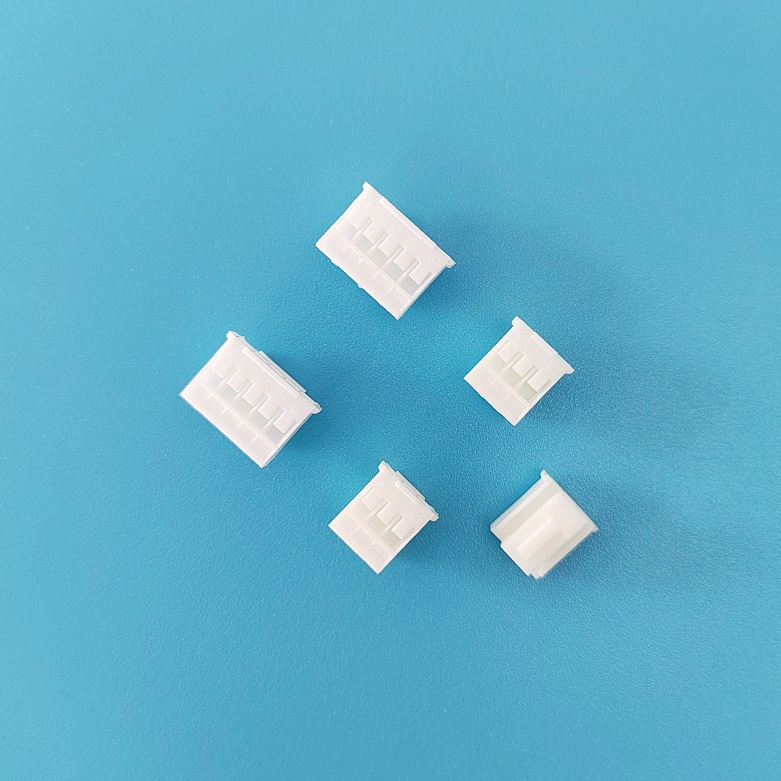

A2003(YH)alternative YH 2.00mm Housing Terminal Cable Wafer
Product detailsSpecifications:
Rated current: 3A AC, DC
Rated voltage: 250V DC
Temperature range: -25 deg C to +105 deg C
Contact resistance: 30m Omega Max.
Insulation resistance: 1000M Omega Min.
Voltage: 1000V AC/minute
Housing: PA66 94V-0 White
Terminal material: phosphor copper tin plating
DIP pin body material: PA66 94V-0 White
SMT pin body material: LCP 94V-0 natural color
PIN material: brass tin plated
Pin holder ground disc material: brass tin plated
