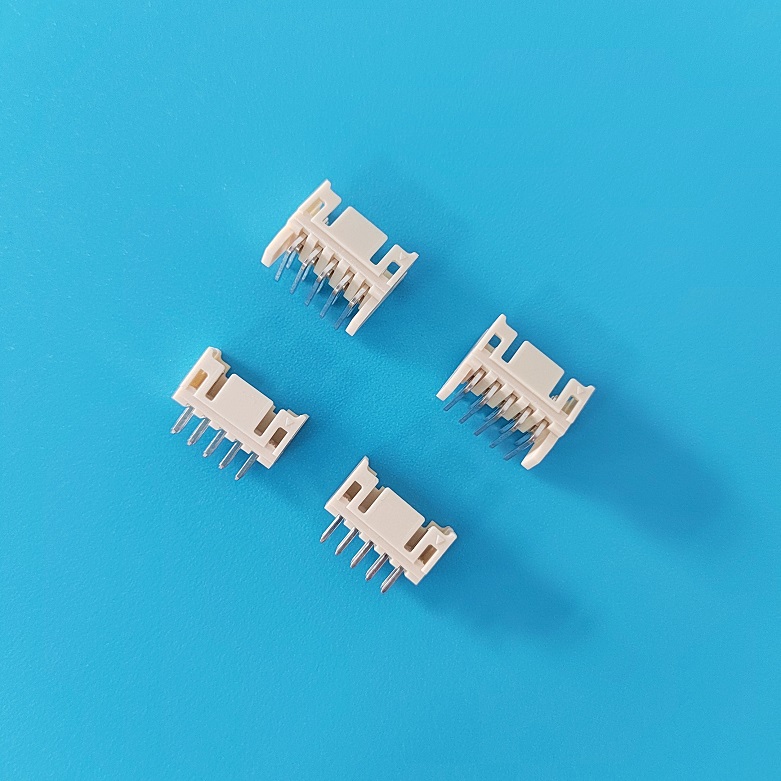

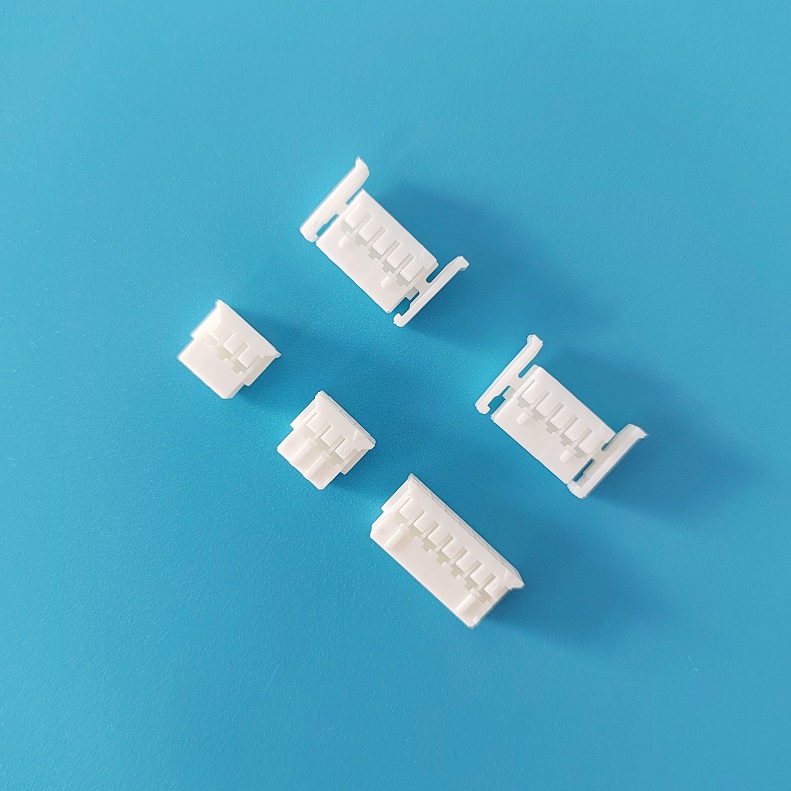

A2004(PHD)Made in China PHD 2.00mm Housing Terminal Cable Wafer
Product detailsSpecifications:
Rated current: 3A AC, DC
Rated voltage: 250V DC
Temperature range: -40 deg C to +105 deg C
Contact resistance: 10m Omega Max.
Insulation resistance: 1000M Omega Min.
Withstand pressure: 800V AC/minute
Housing: PA66 94V-0 White

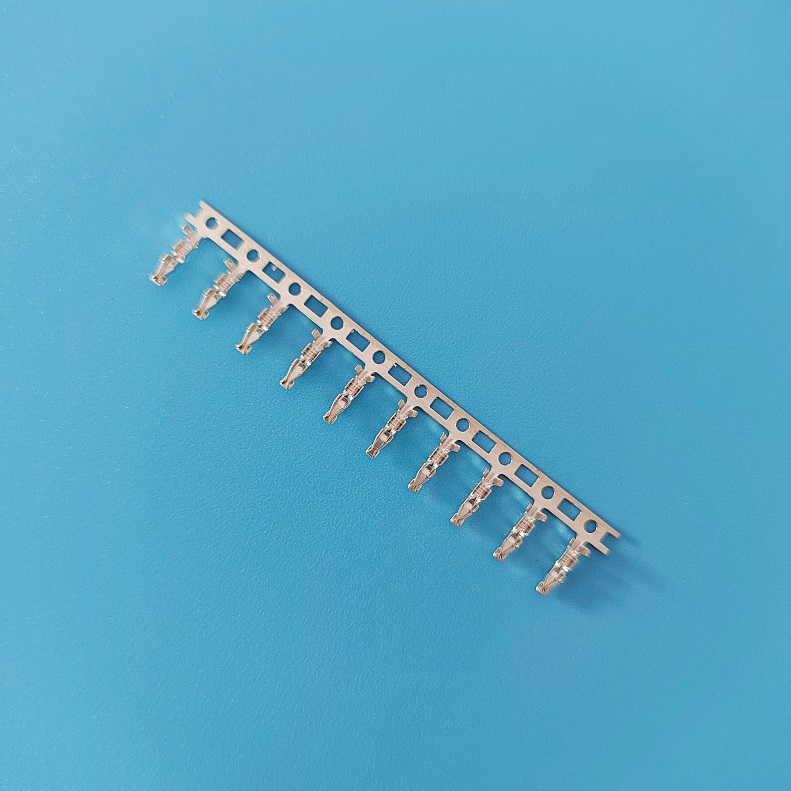

Terminal material: phosphor copper tin plating
DIP pin body material: PA66/PA46/PA9T 94V-0 White/natural color
SMT pin body material: PA9T 94V-0 natural color
PIN material: brass tin plated
