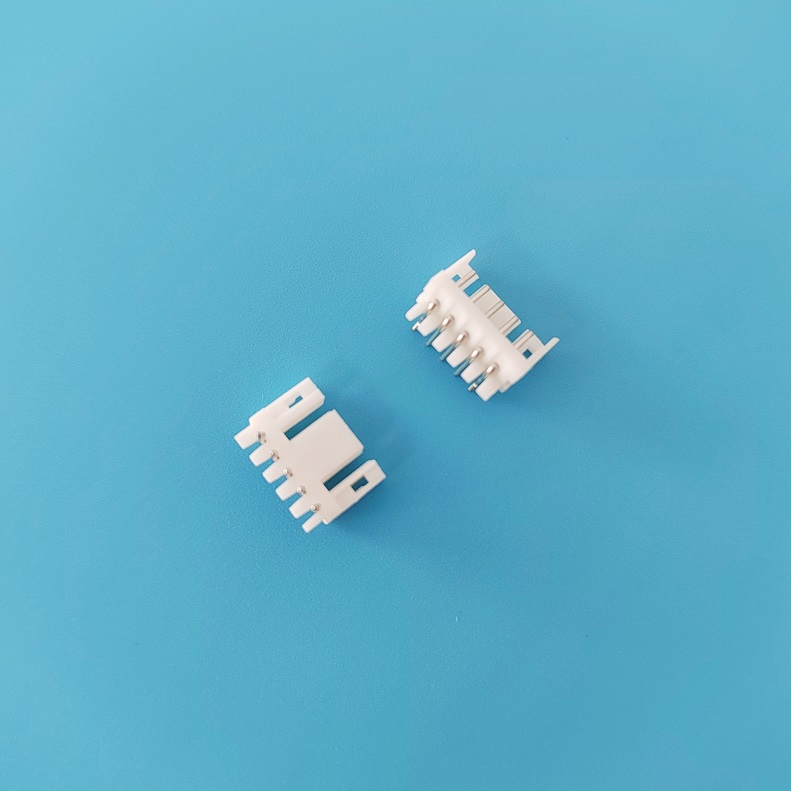

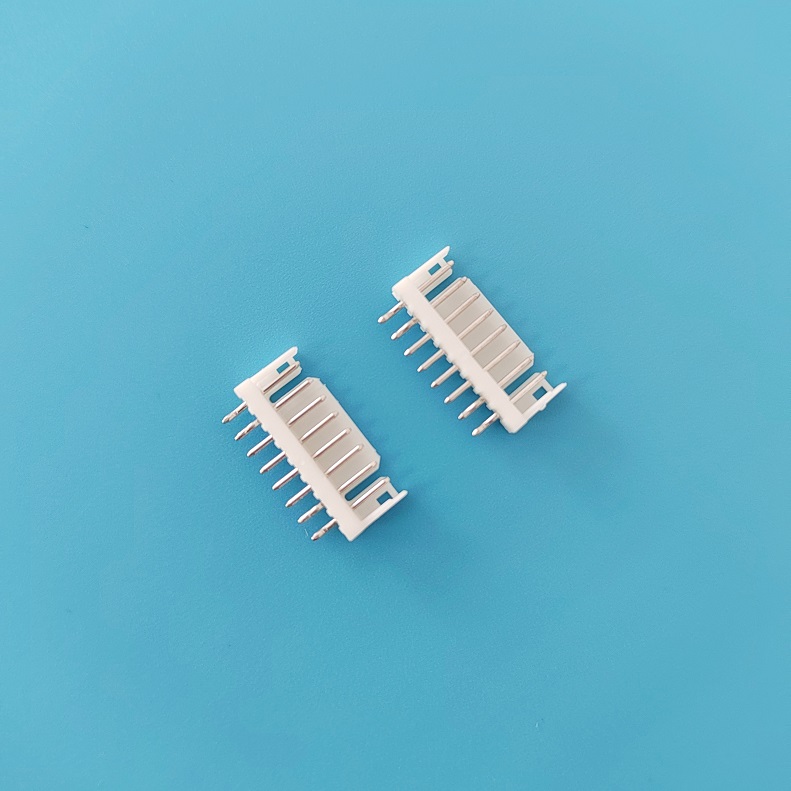

A2009 alternative 2.00 IDC Housing Wafer
Product detailsSpecifications:
Rated current: 2A AC, DC
Rated voltage: 100V DC
Temperature range: -40 deg C to +105 deg C
Contact resistance: 30m Omega Max.
Insulation resistance: 800M Omega Min.
Withstand pressure: 800V AC/minute
Housing: PA66 94V-0 White
Terminal material: phosphor copper tin plating
DIP pin body material: PA66 94V-0 White
PIN material: brass tin plated
