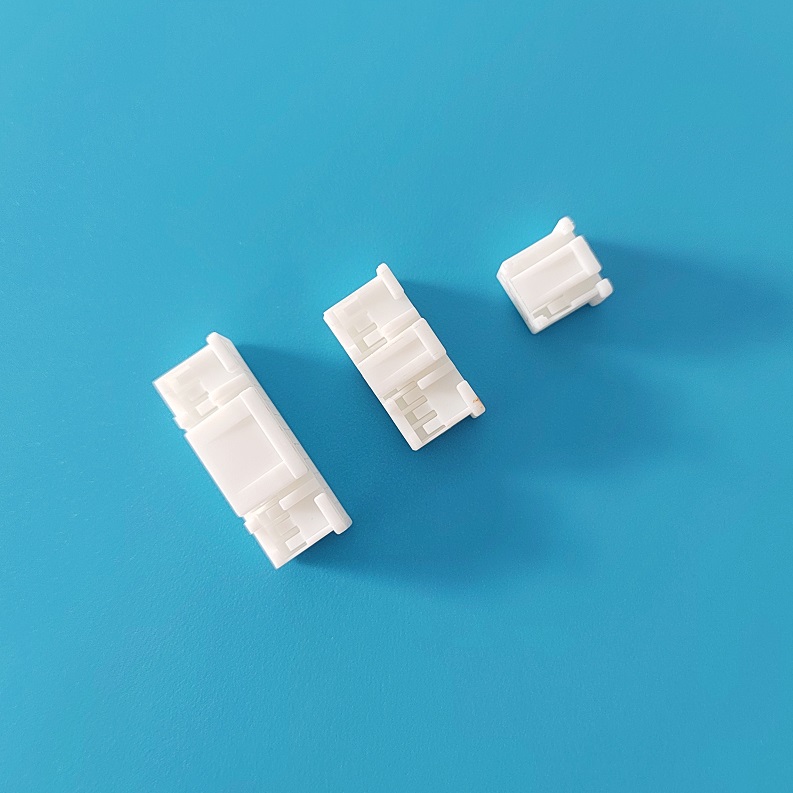

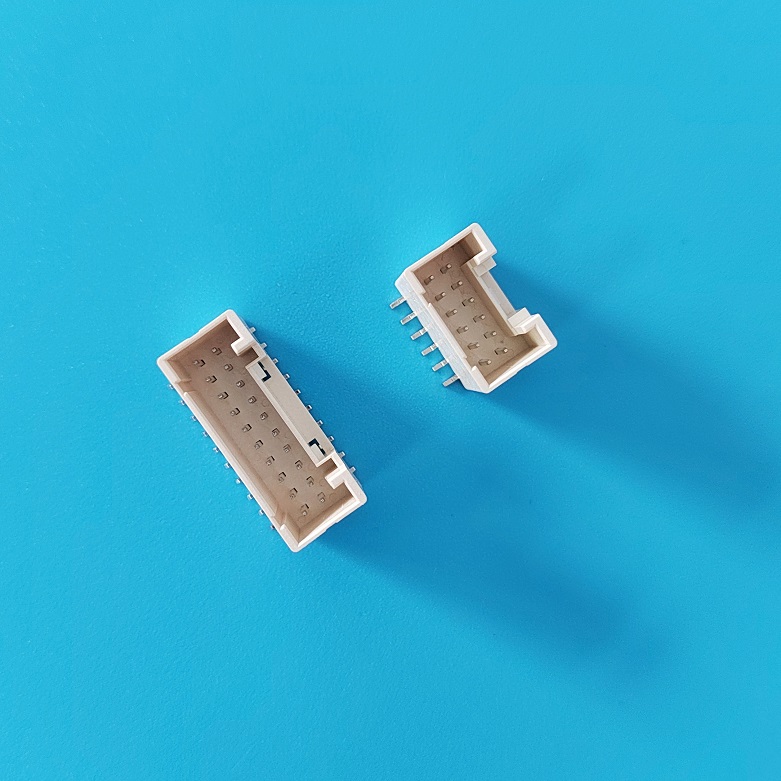

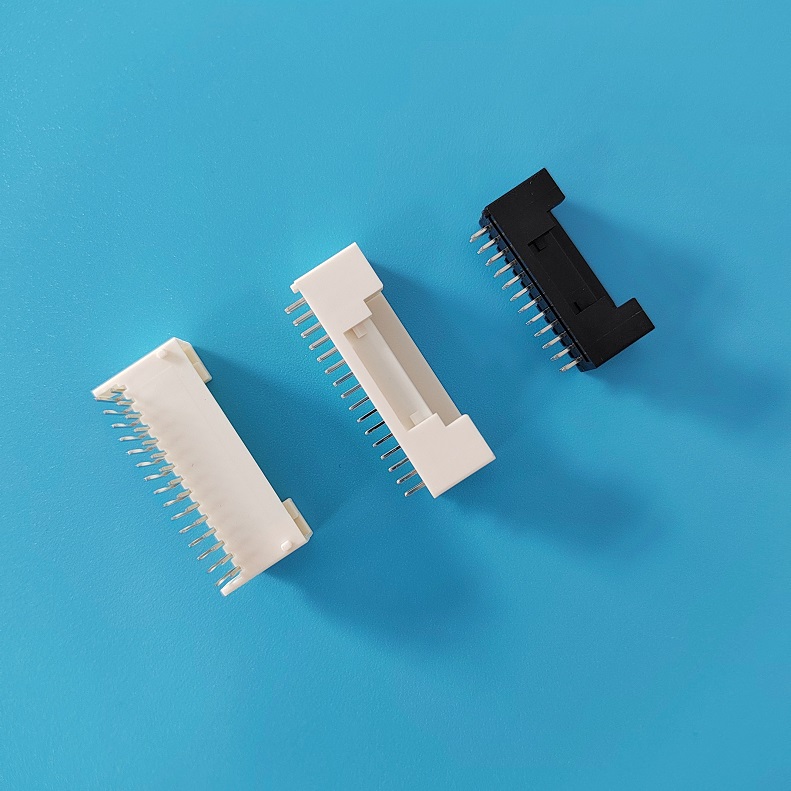

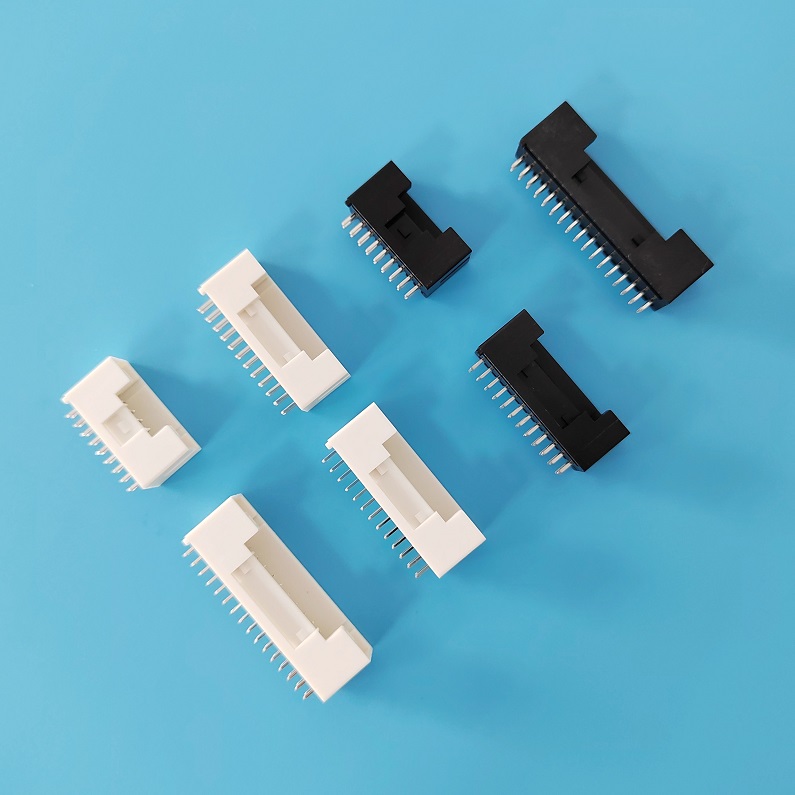

A2018(PUD)alternative PUD 2.00 Housing Terminal Wafer Cable
Product detailsSpecifications:
Rated current: 3A AC, DC
Rated voltage: 250V DC
Temperature range: -25 deg C to +105 deg C
Contact resistance: 30m Omega Max.
Insulation resistance: 500M Omega Min.
Voltage: 500V AC/minute
Housing: PA66 94V-0 White/Black
Terminal material: phosphor copper tin plating
DIP pin body material: PA66 94V-0 White/Black
PIN material: brass tin plated/gold
SMT pin body material: LCP 94V-0 natural/Black
PIN material: brass tin plated/gold
