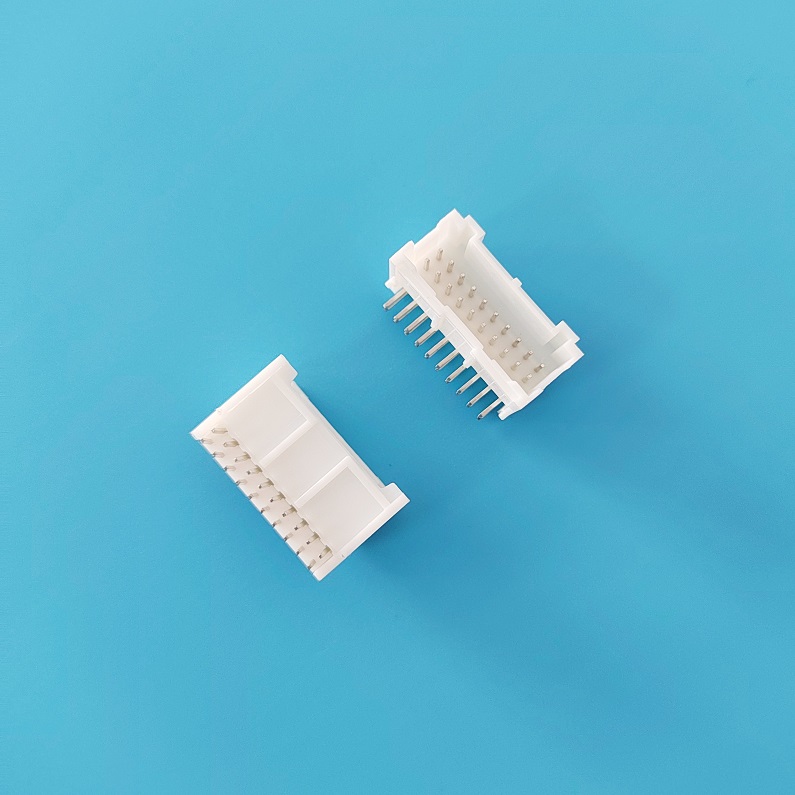

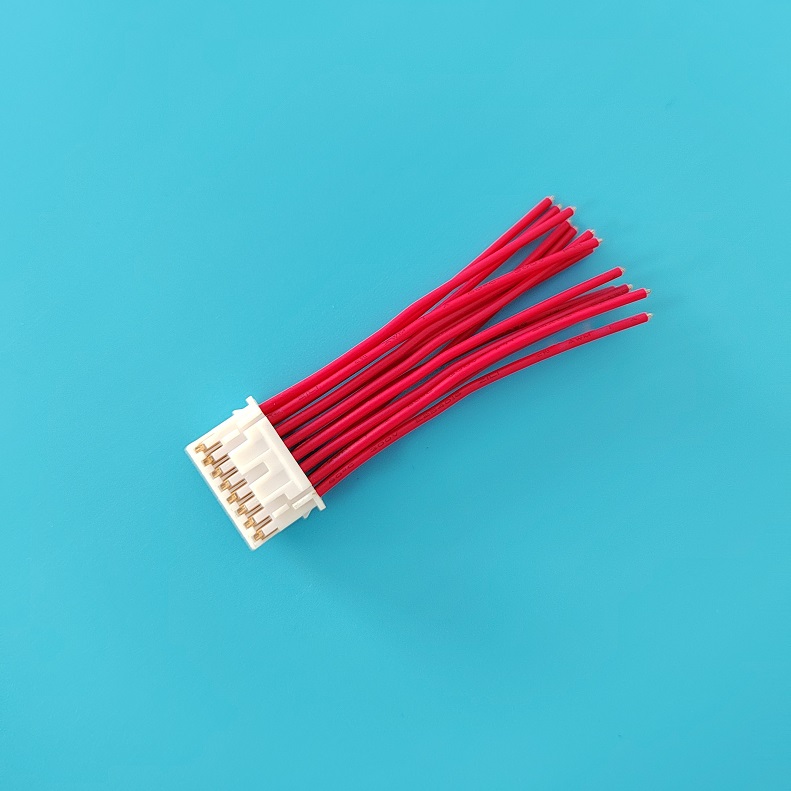

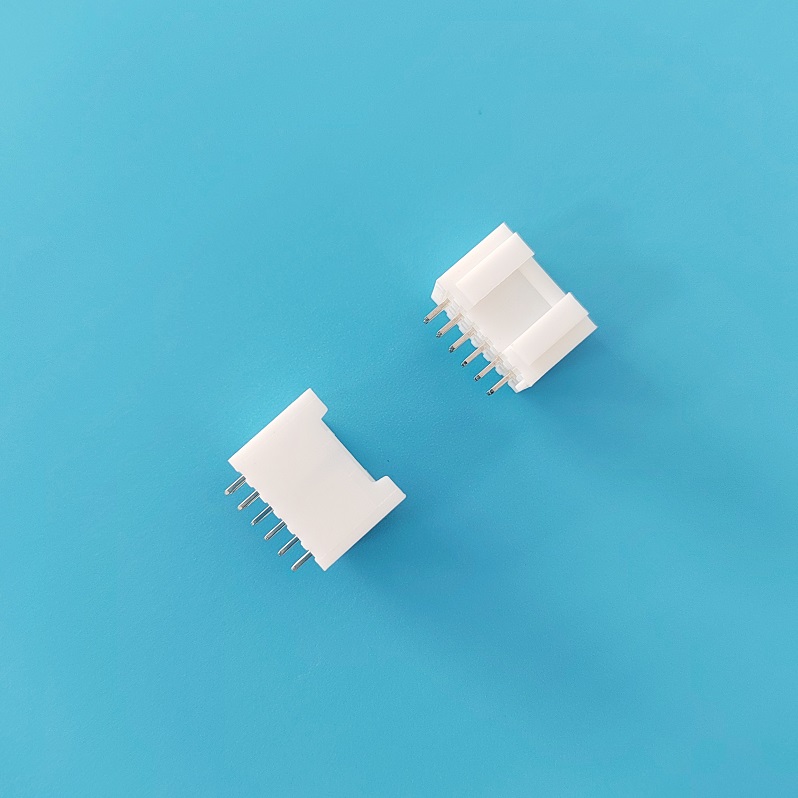

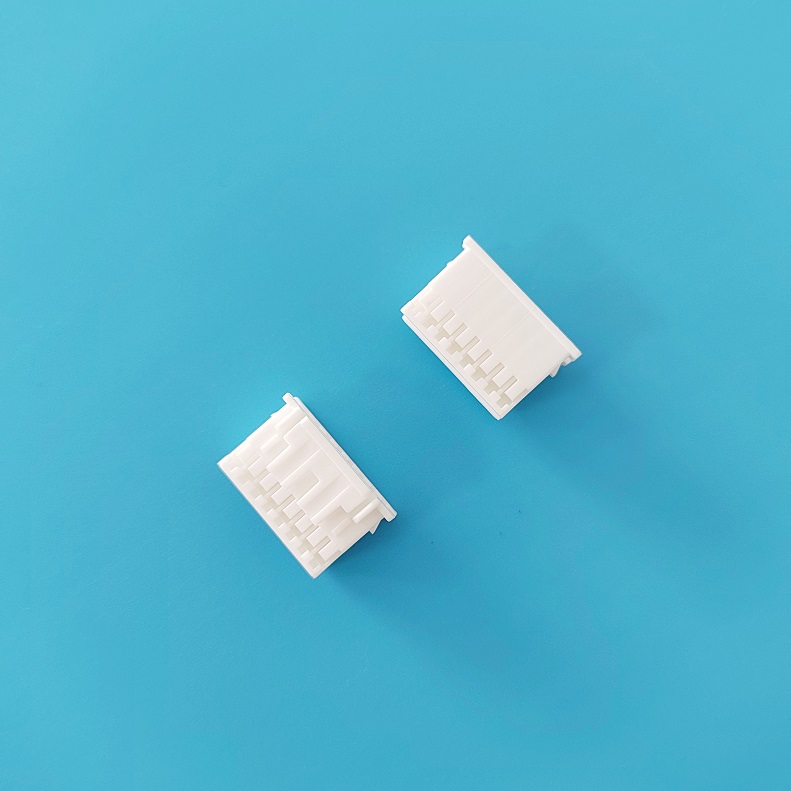

A2022(PAD)alternative PAD 2.00 Housing Terminal Wafer Cable
Product detailsSpecifications:
Rated current: 3A AC, DC
Rated voltage: 250V DC
T Temperature range: -25 deg C to +105 deg C
Contact resistance: 20m Omega Max.
Insulation resistance: 1000M Omega Min.
Withstand pressure: 800V AC/minute
Housing: PA66 94V-0 White
Terminal material: phosphor copper tin plating
DIP pin body material: PA66 94V-0 White
PIN material: brass tin plated
