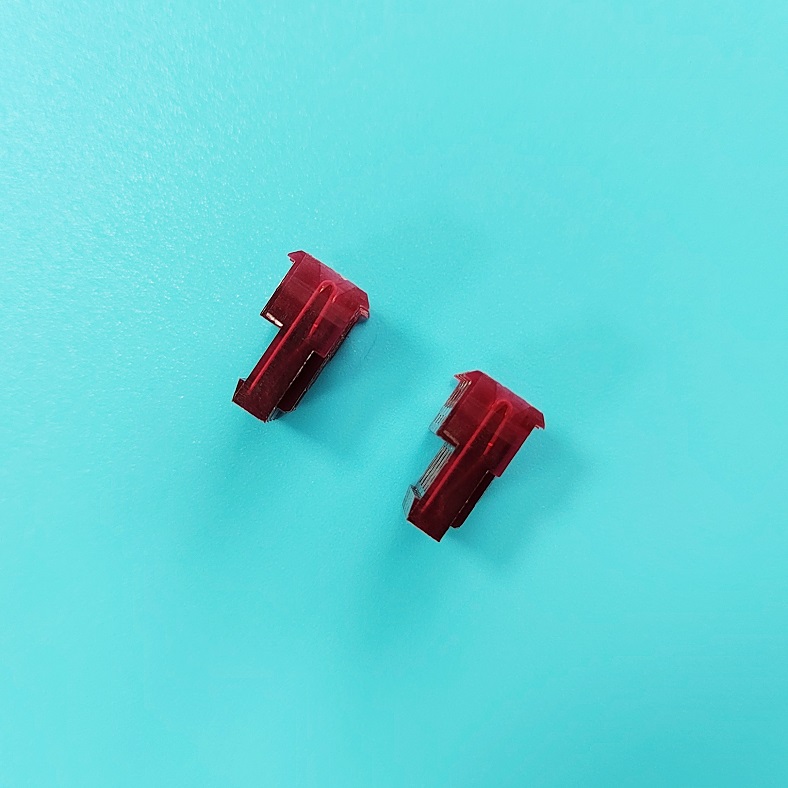

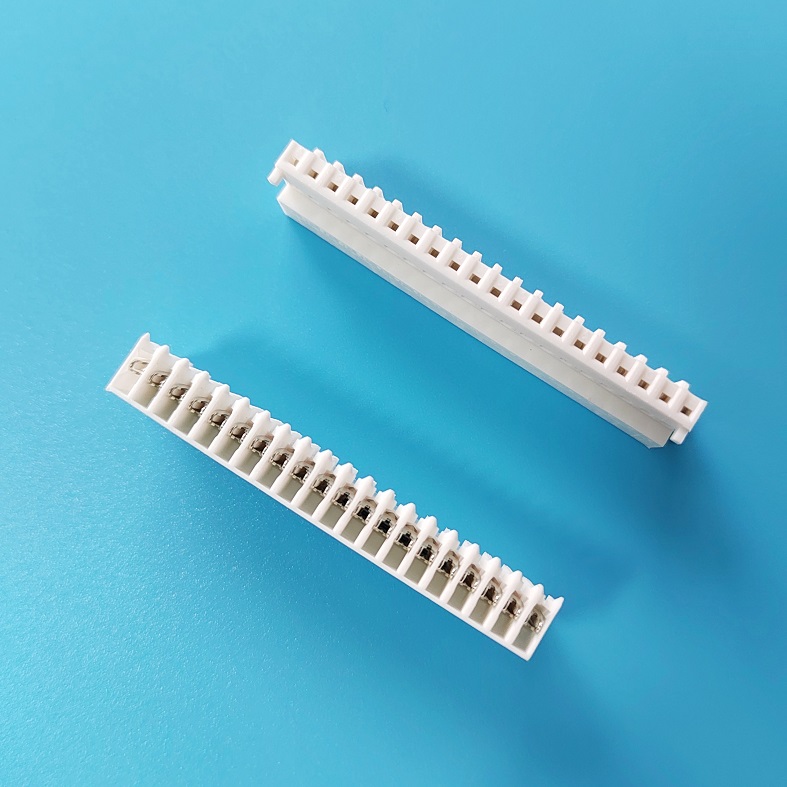

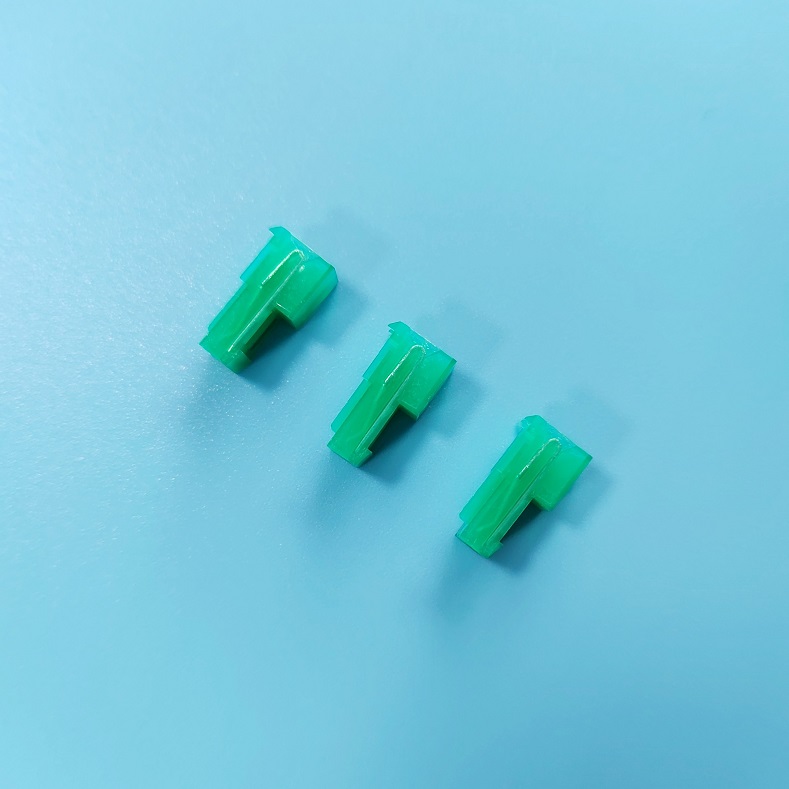

A2546 alternative 2.54mm IDC Housing
Product detailsSpecifications:
Rated current: 3A AC, DC
Rated voltage: 250V DC
Temperature range: -40 deg C to +105 deg C
Contact resistance: 30m Omega Max.
Insulation resistance: 1000M Omega Min.
Withstand pressure: 1500V AC/minute
IDC Housing: PA66 94V-0 White/black/yellow/red/blue/green
Terminal material: phosphor copper tin plating/ sn+GF
