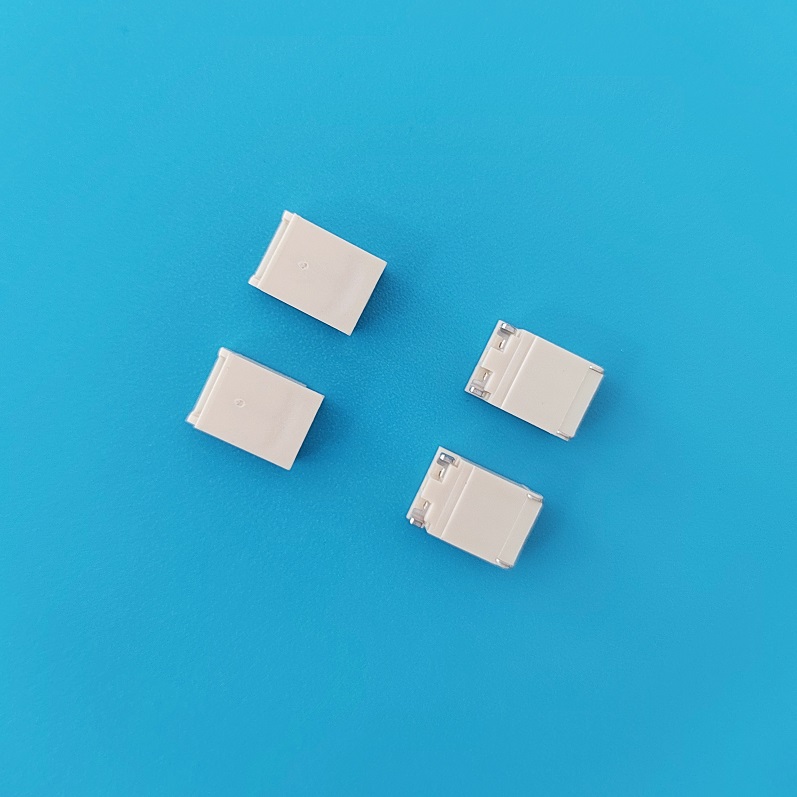

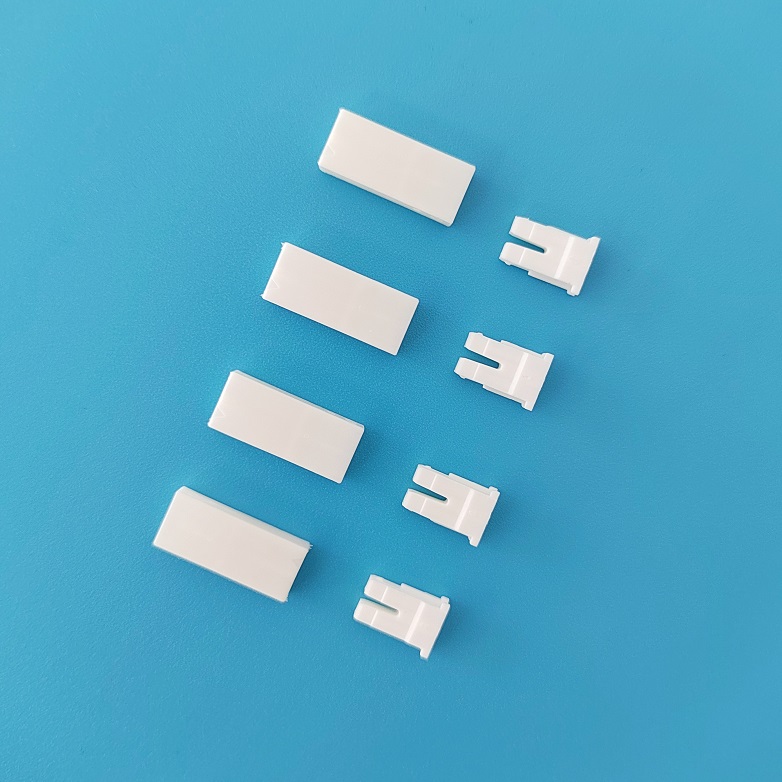

C3500(BH)alternative BH 3.50mm Housing Terminal Wafer
Product detailsSpecifications:
Rated current: 5A AC, DC
Rated voltage: 1400V DC
Temperature range: -40 deg C to +105 deg C
Contact resistance: 20m Omega Max.
Insulation resistance: 1000M Omega Min.
Withstand voltage: 3800V AC/minute
Plastic shell material: PA66 94V-0 natural color

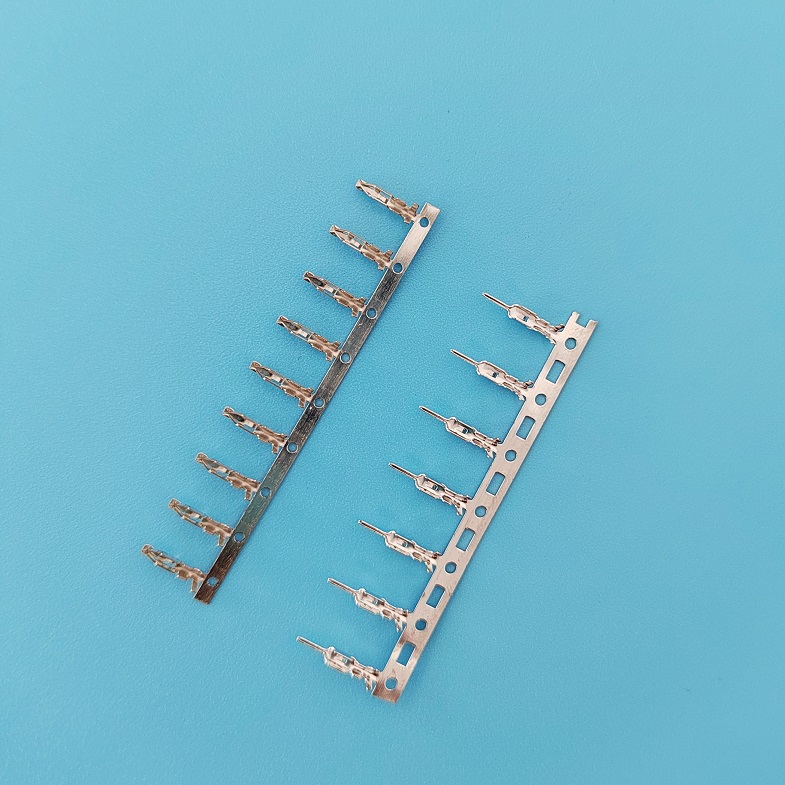

Terminal material: phosphor copper tin plating
SMT pin body material: PA6T 94V-0 color
PIN material: brass tin plated
Ground lug material: brass tin plated
