A2011(502351)alternative 502351 502352 560020 560123 50212 2.00 Housing Terminal Wafer
Product detailsSpecifications:
Rated current: 3A AC, DC
Rated voltage: 125V DC
Temperature range: -25 deg C to +105 deg C
Contact resistance: 20m Omega Max.
Insulation resistance: 1000M Omega Min.
Voltage: 500V AC/minute
Housing: PA66/PBT 94V-0 White
Cable card material: PBT 94V-0 grey

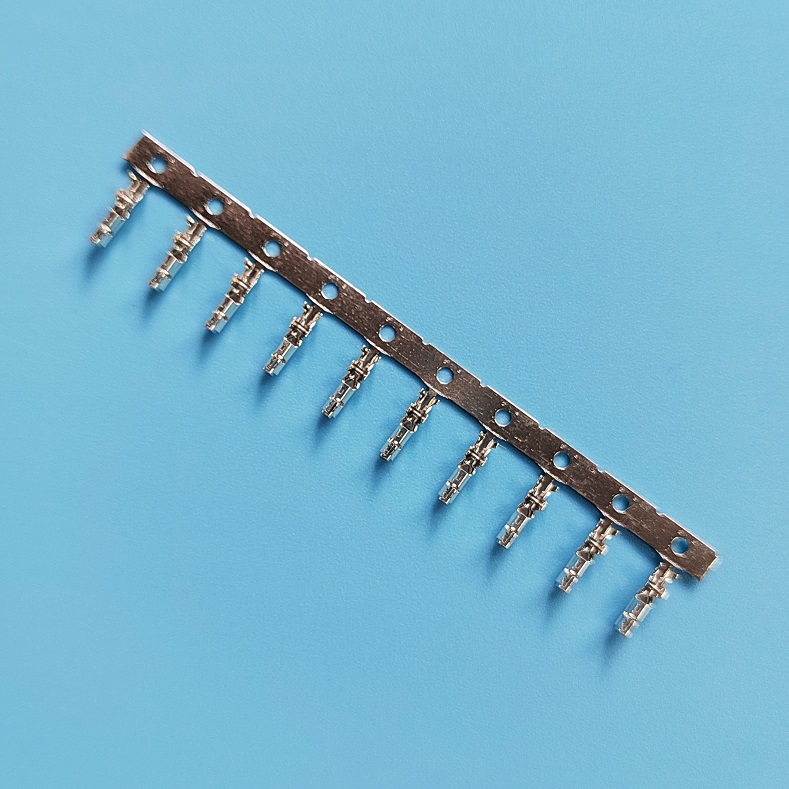

Terminal material: phosphor copper tinned
Needle base material: PA9T 94V-0 beige
PIN PIN material: brass tinned
Pin base ground lug material: brass tinned
