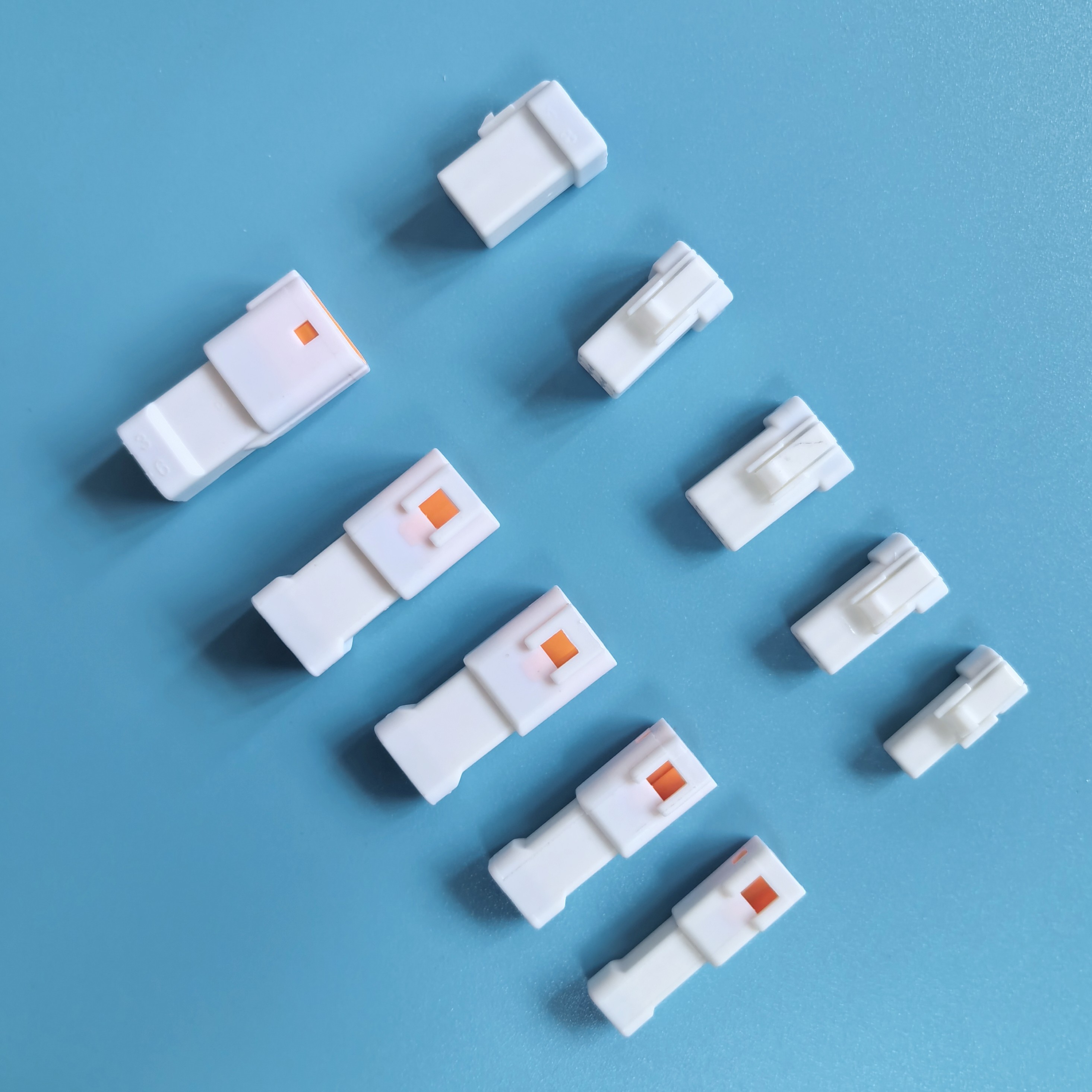

A2007(JWPF)alternative JWPF 2.00 Wire-to-Wire Housing Terminal Wafer
Product detailsSpecifications:
Rated current: 3A AC, DC
Rated voltage: 100V DC
Temperature range: -55 deg C to +105 deg C
Contact resistance: 30m Omega Max.
Insulation resistance: 1000M Omega Min.
Withstand pressure: 1000V AC/minute
Housing: PBT 94V-0 White

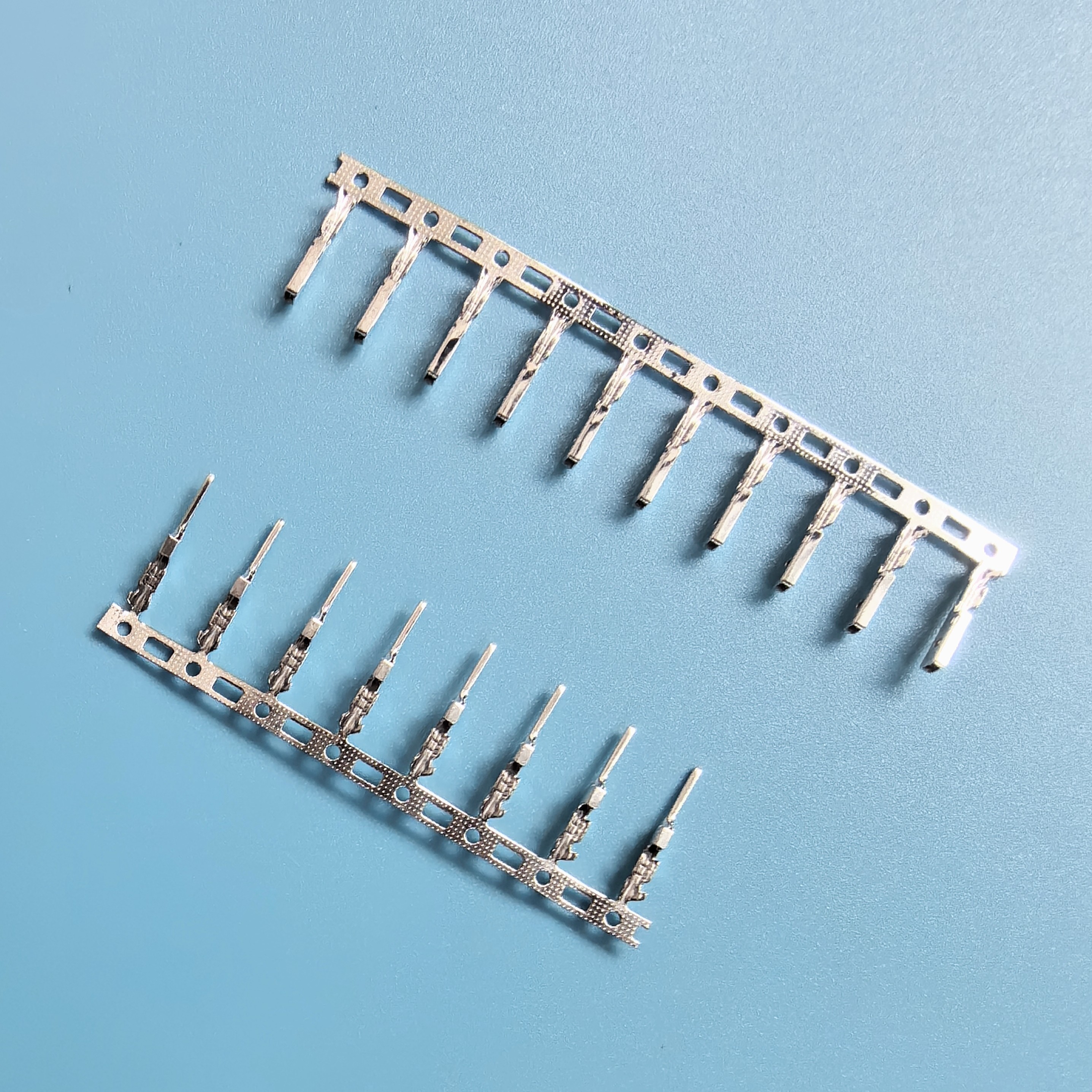

Terminal material: phosphor copper tin plating

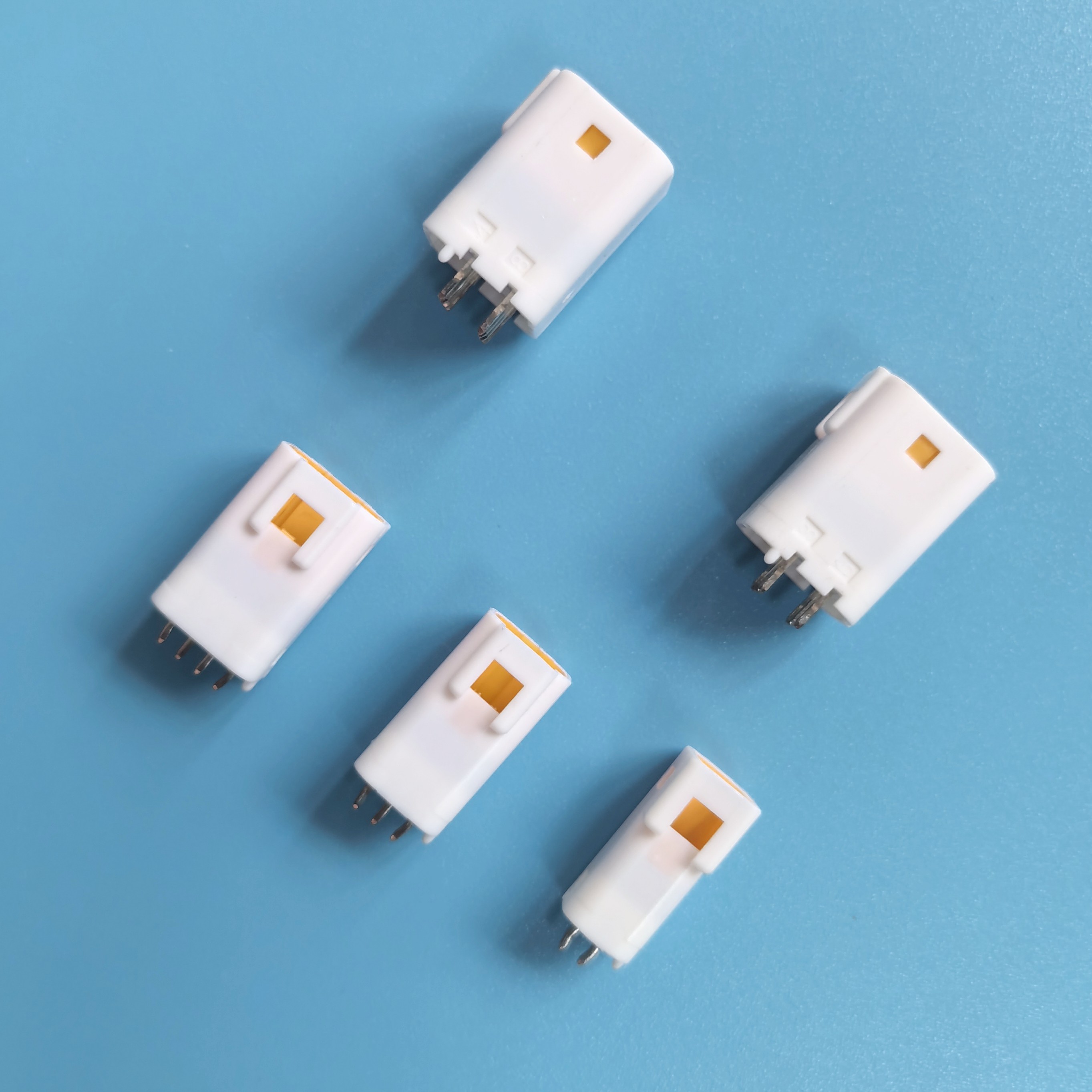

DIP pin body material: PBT 94V-0 White
PIN material: brass tin plated
