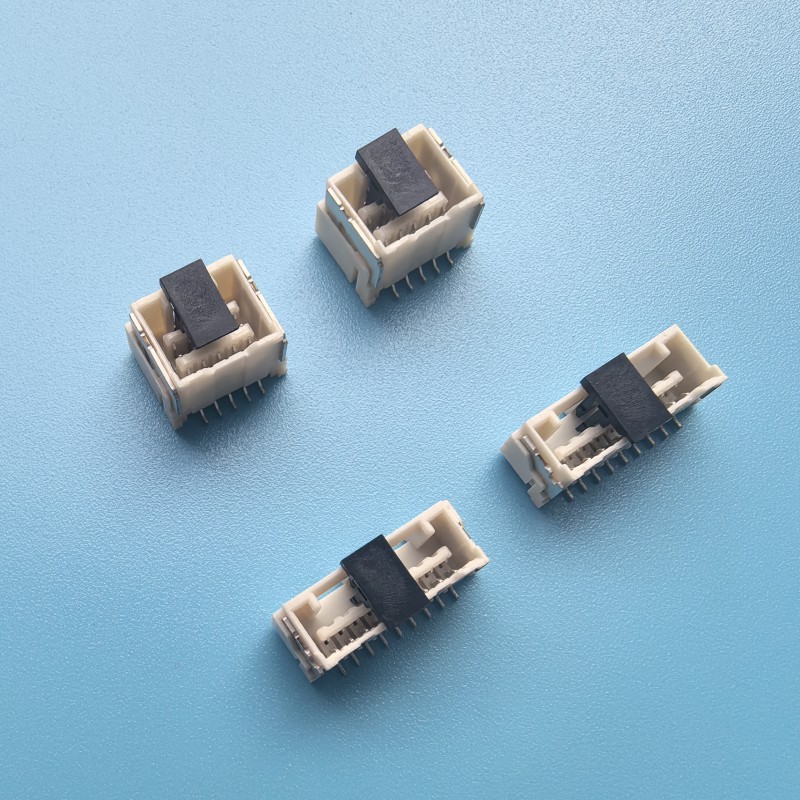

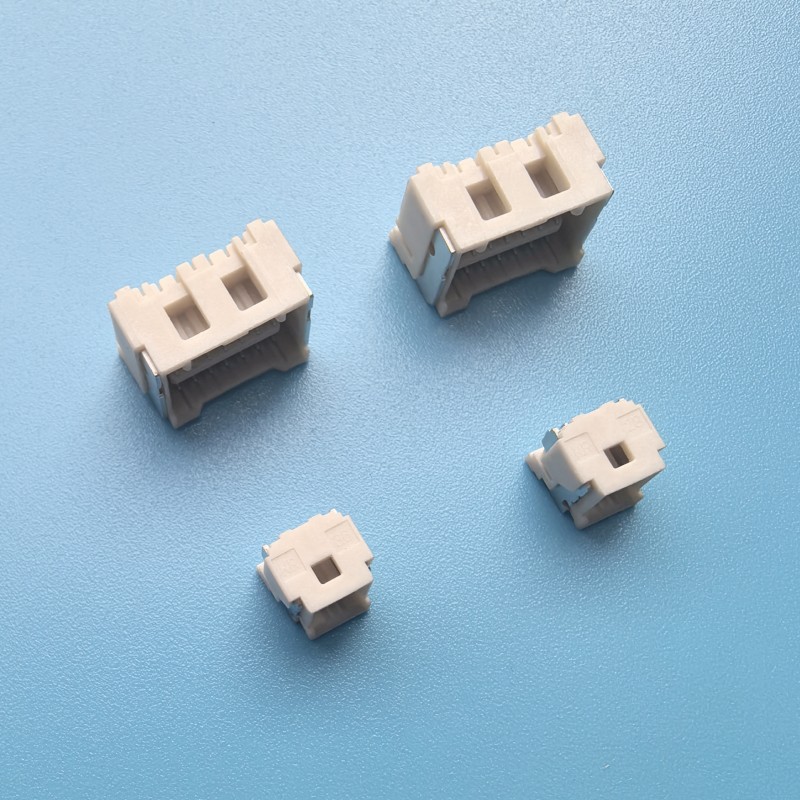

A1506(503149)alternative 503149 1.50mm Housing Terminal Cable Wafer
Product detailsSpecifications:
Rated current: 2A AC, DC
Rated voltage: 100V DC
Temperature range: -25 deg C to +105 deg C
Contact resistance: 20m Omega Max.
Insulation resistance: 500M Omega Min.
Voltage: 500V AC/minute

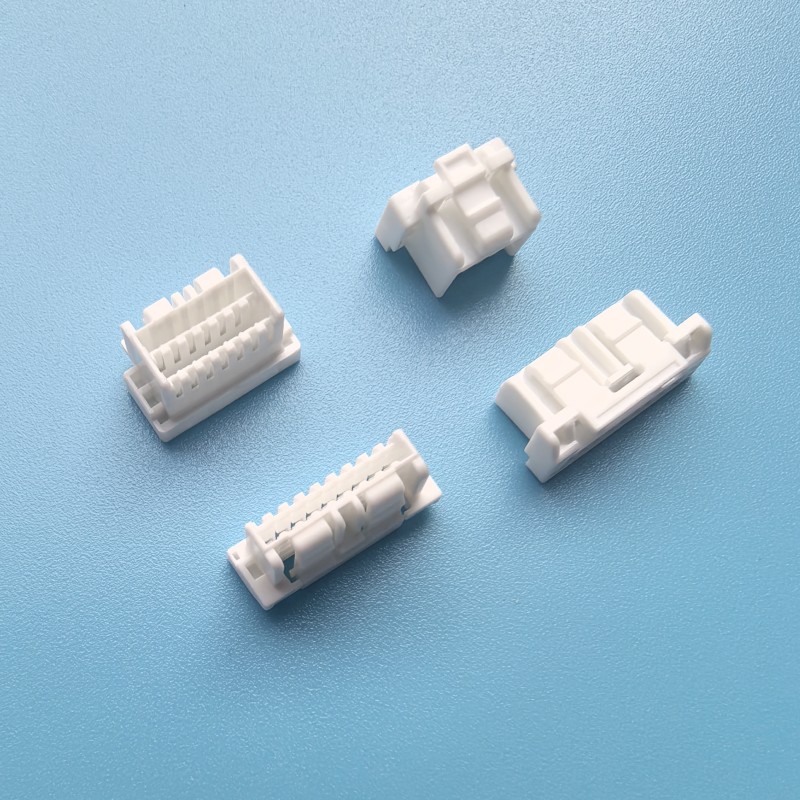

Housing: PBT 94V-0 White/Black

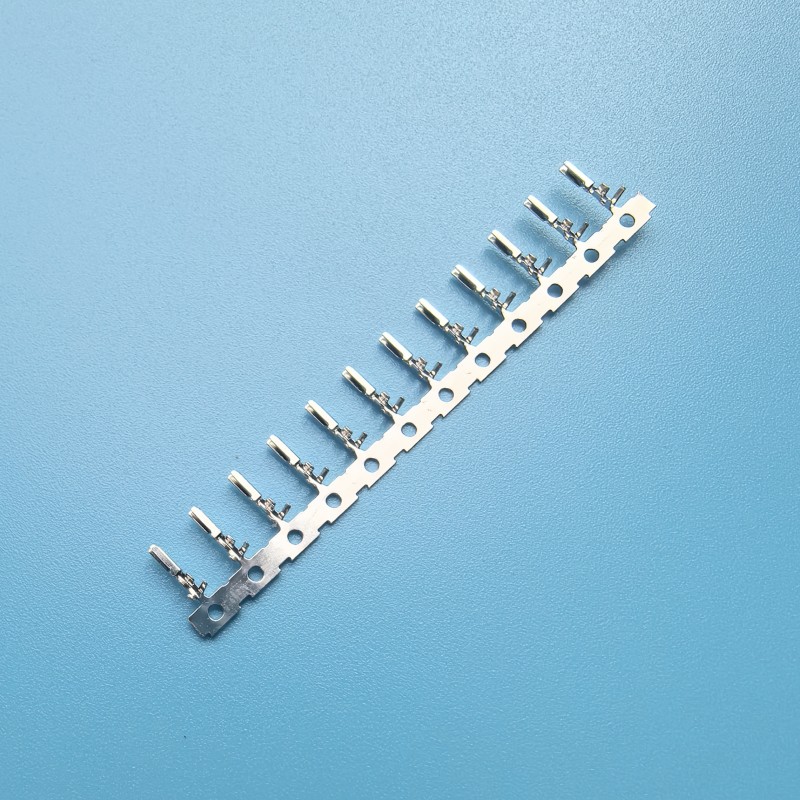

Terminal material: phosphor copper tin
SMT pin body material: PA9T 94V-0 natural color
PIN Pin material: phosphorus copper gold /tin plating
Pin holder ground disc material: brass tin plated
