A2008(205341)alternative 205341/205342/205338 Housing Terminal Wafer

Specifications:

Rated current: 6.5A AC, DC

Rated voltage: 250V DC

Temperature range: -25 deg C to +105 deg C

Contact resistance: 30m Omega Max.

Insulation resistance: 1000M Omega Min.

Voltage: 800V AC/minute

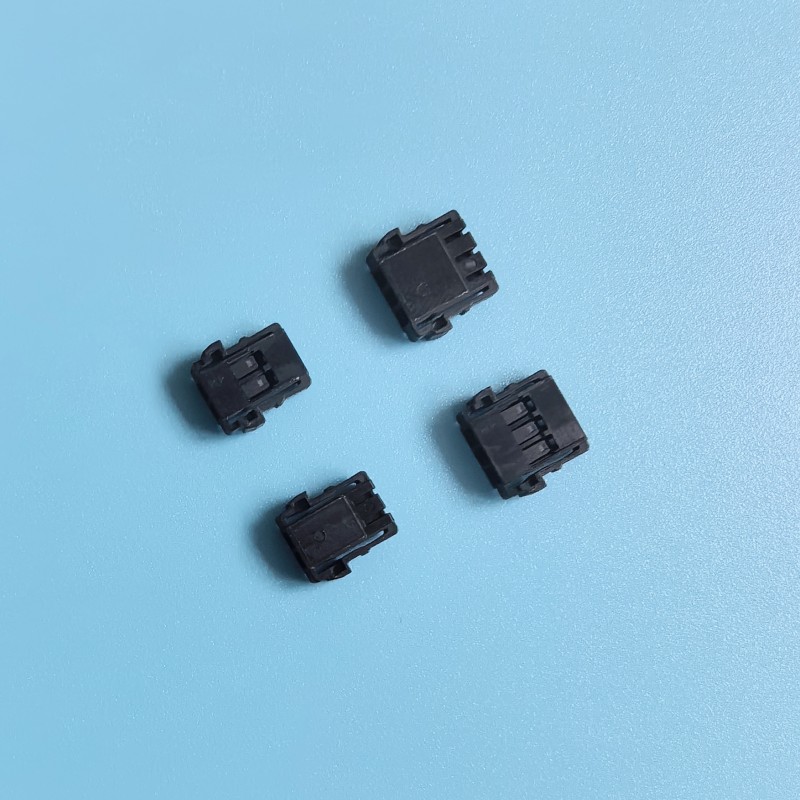

Housing: PA66 94V-0 Black

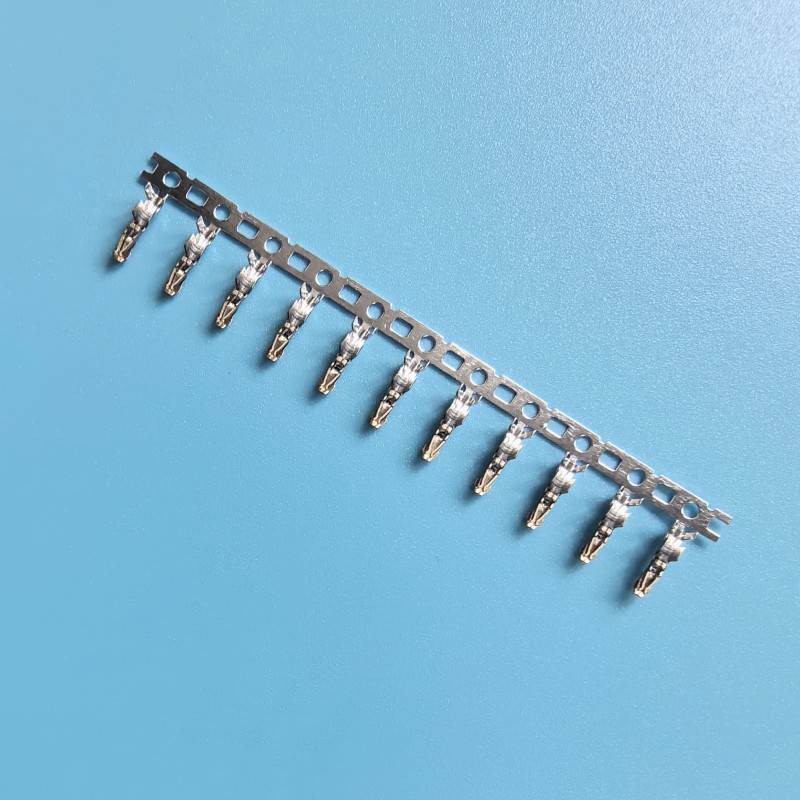

Terminal material: phosphor copper tin/Gold plating

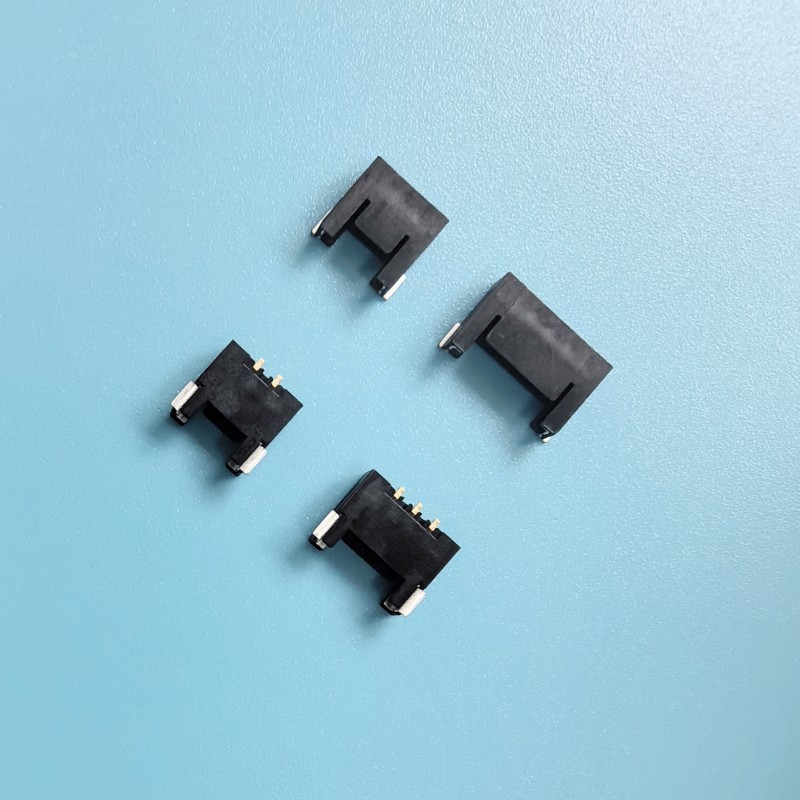

DIP pin body material: PA4T 94V-0 Black

PIN material: brass tin plated

Pin holder ground disc material: brass tin plated
