C3002 alternative 3.00mm 44133 Housing Terminal Wafer Cable

Specifications:

Rated current: 5A AC, DC

Rated voltage: 250V DC

Temperature range: -40 deg C to +105 deg C

Contact resistance: 20m Omega Max.

Insulation resistance: 1000M Omega Min.

Withstand pressure: 1500V AC/minute

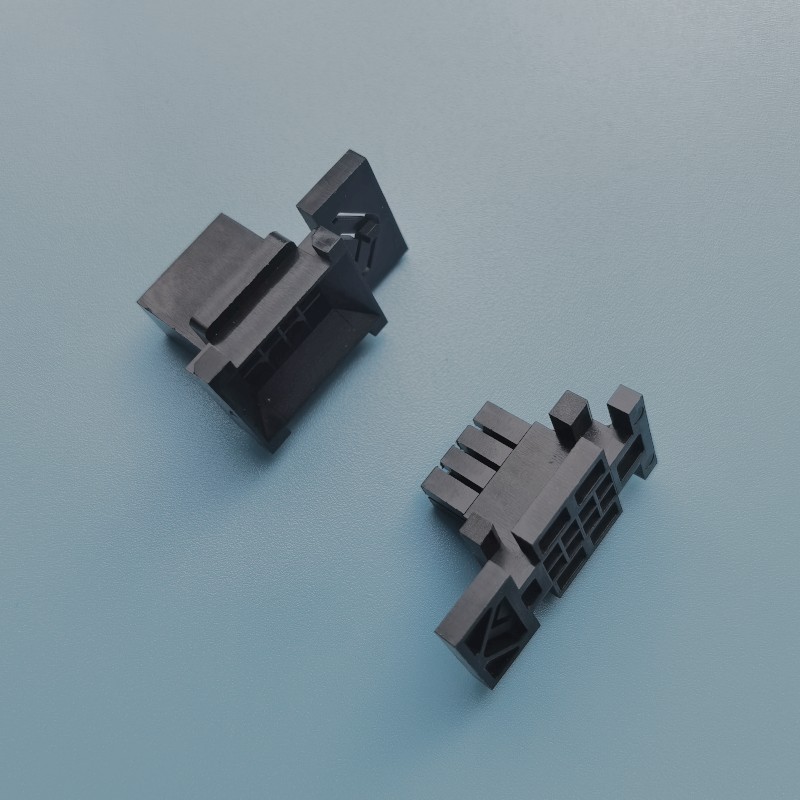

Housing: PA66 94V-2 black

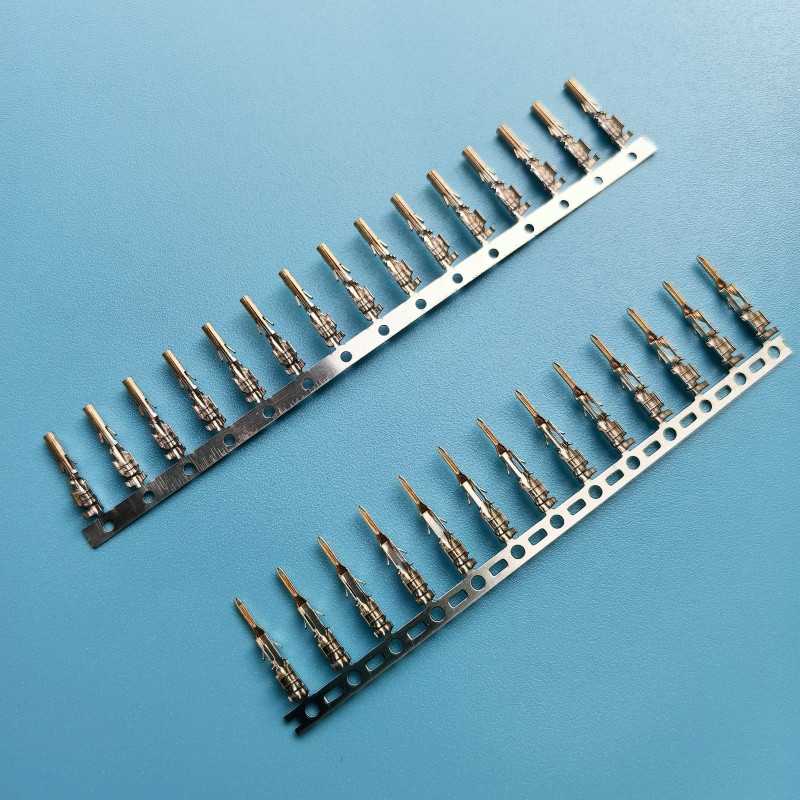

Terminal material: phosphor/C1100 copper tin/gold plated

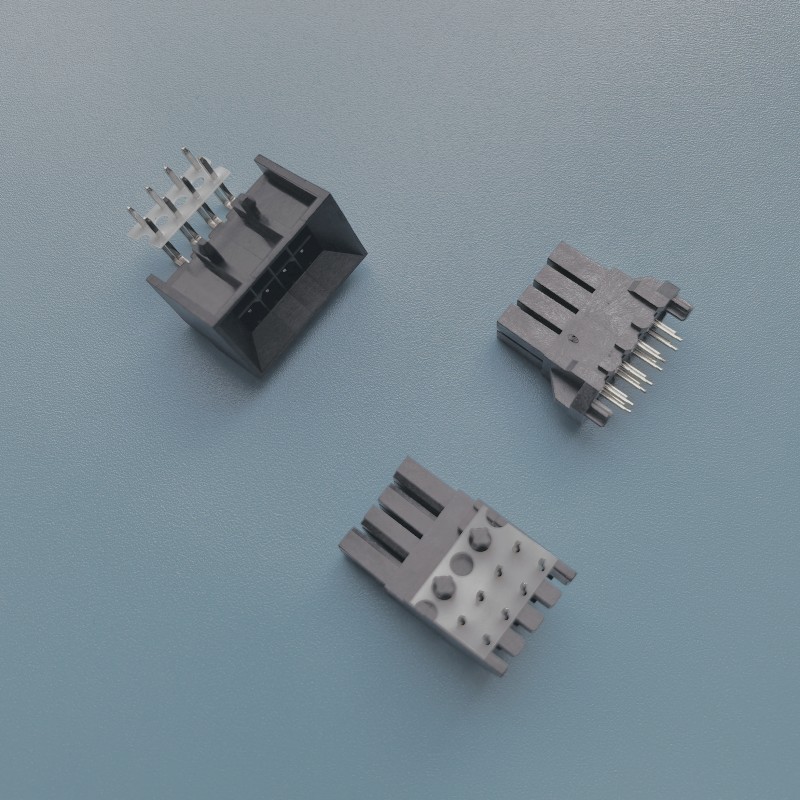

DIP pin base main material: PA9T-94V-0 black

PIN material:Phosphorus copper -- tin plated/gold plated
