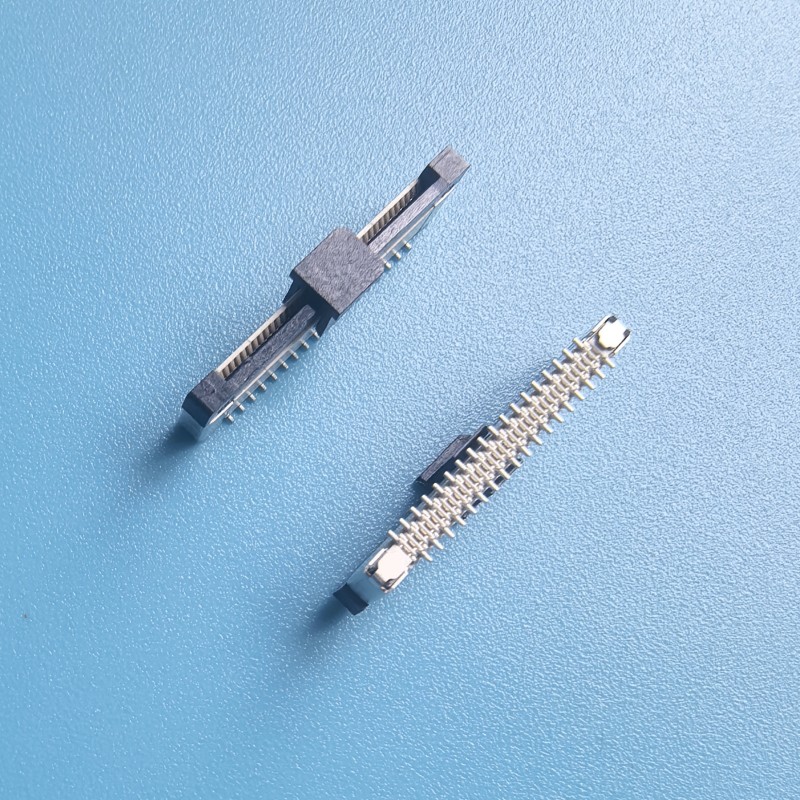

11-55-XX01-XX(0.50mm Pitch FPC Vertical)
Product detailsSpecifications:
Rated current: 0.5A AC, DC
Rated voltage: 50V DC
Temperature range: -40 deg C to +105 deg C
Contact resistance: 20m Omega Max.
Insulation resistance: 500M Omega Min.
Voltage: 200V AC/minute
Body material: LCP-94V-0 Natural color
Cover material: LCP-94V-0 Black
PIN Pin material: phosphorus copper tin plating
Ground lug material: phosphor copper tin plating
