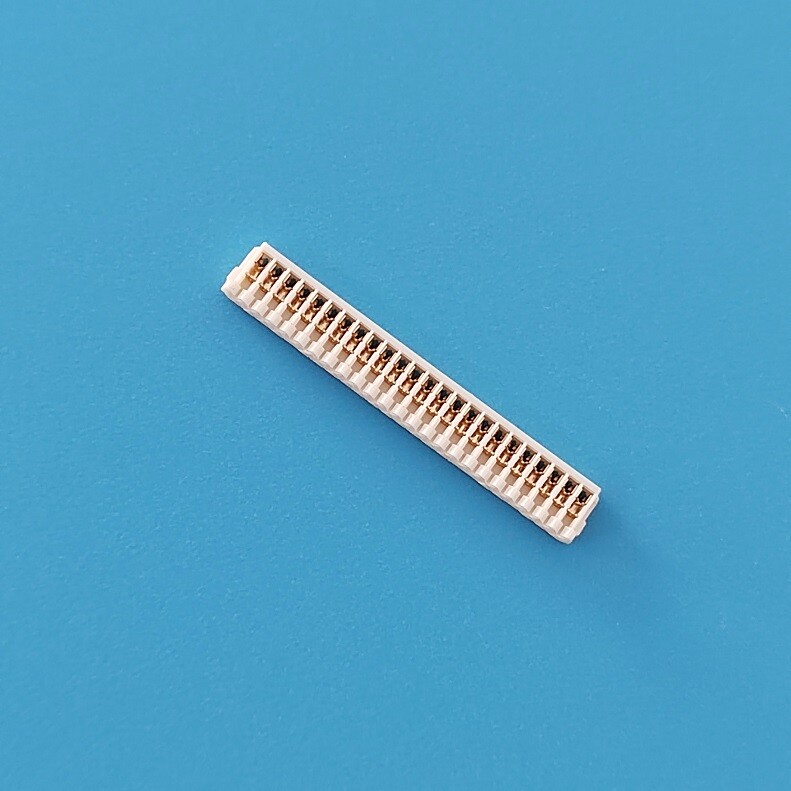

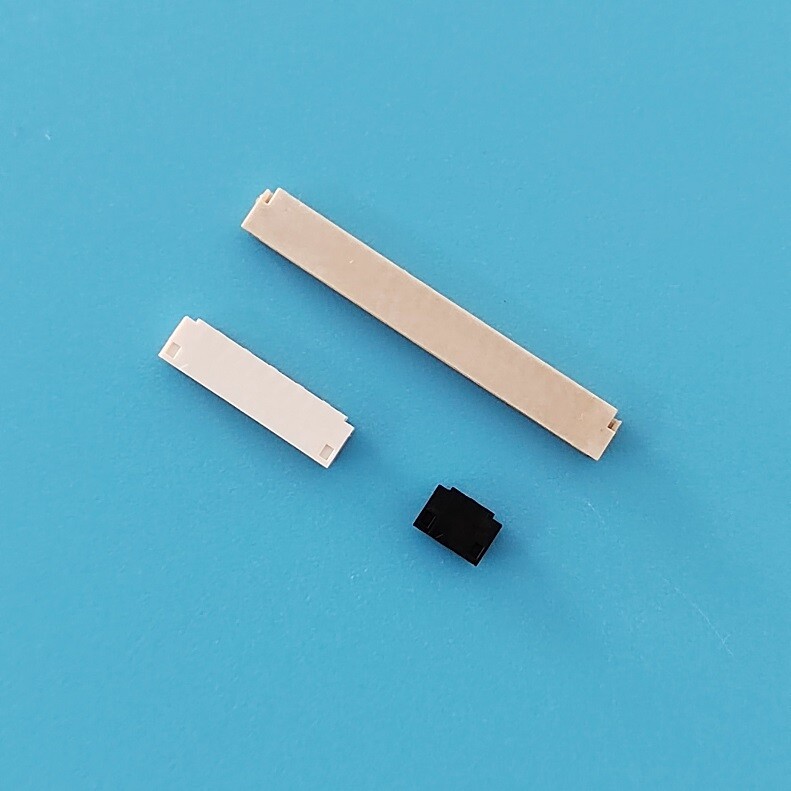

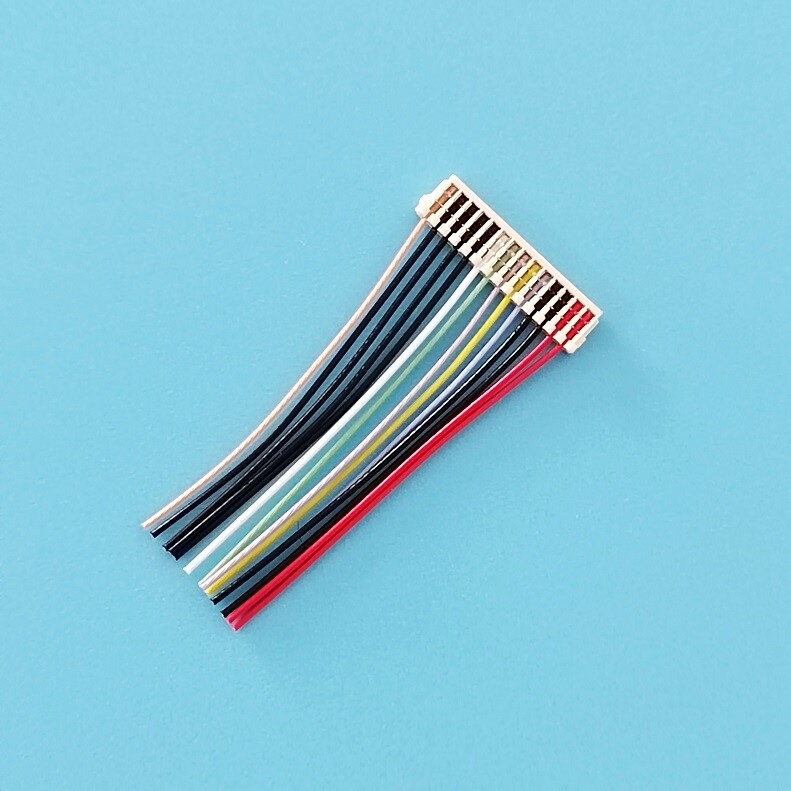

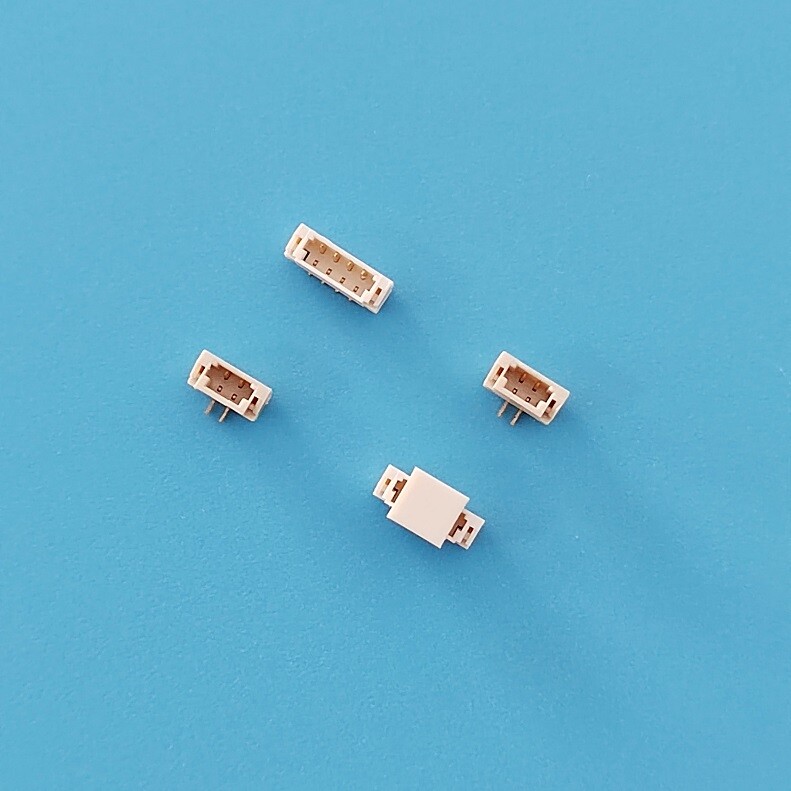

A0800(SUR)alternative SUR 0.80 IDC housing,SMT Wafer,Cable
Product detailsSpecifications:
Rated current: 0.3 to 0.5A AC, DC
Rated voltage: 30V DC
Temperature range: -40 deg C to +105 deg C
Contact resistance: 20m Omega Max.
Insulation resistance: 100M Omega Min.
Withstand pressure: 200V AC/minute
Housing: PA66 94V-0 Natural color/black
Terminal material: phosphor copper gold plated/tin
Pin body material: LCP-94V-0 Natural color/black
PIN Pin material: phosphor copper gold plated/tin
Pin holder ground disc material: phosphor tin plated
