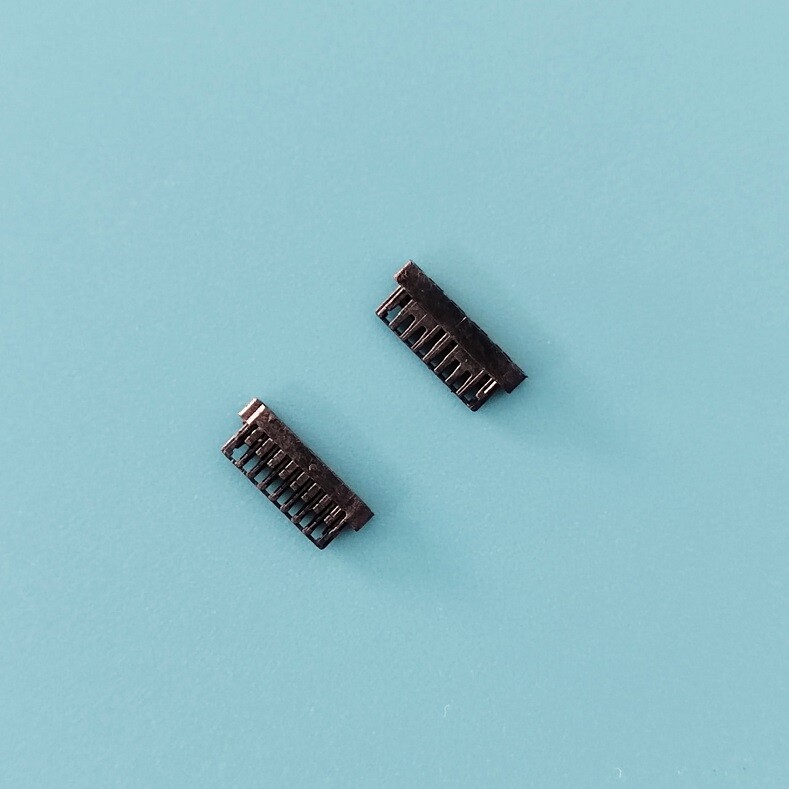

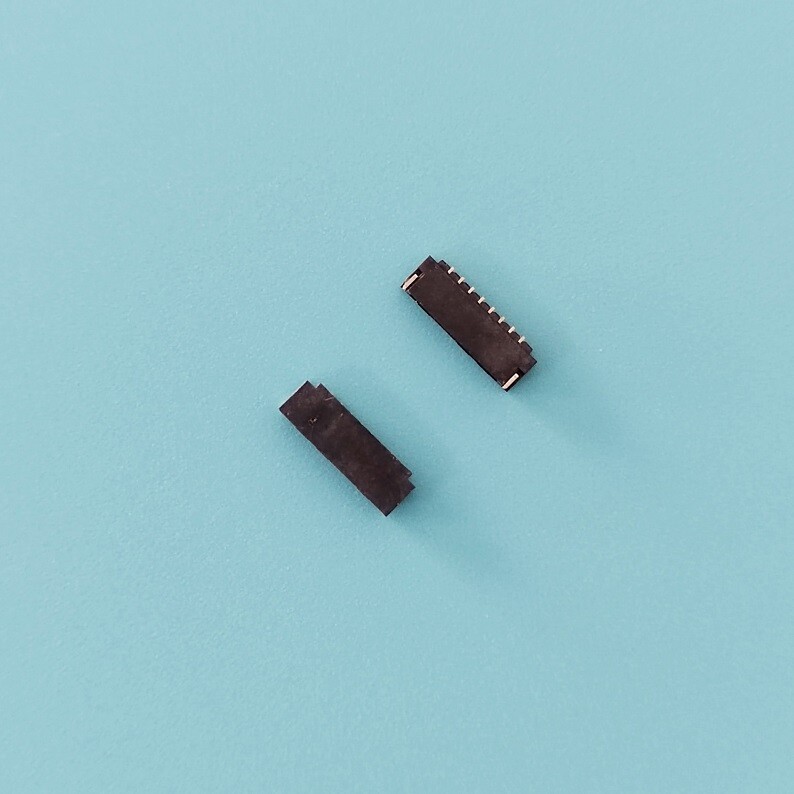

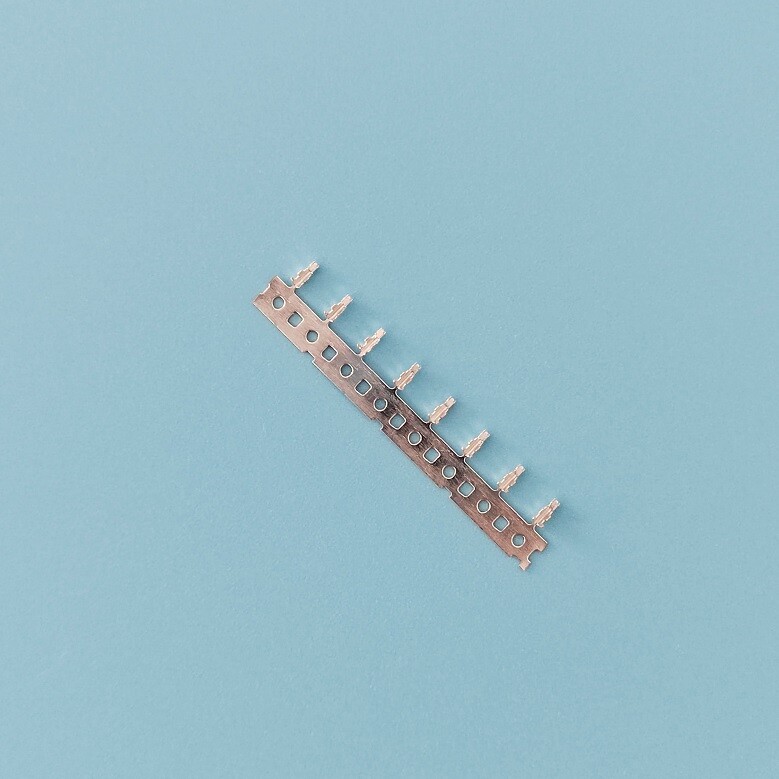

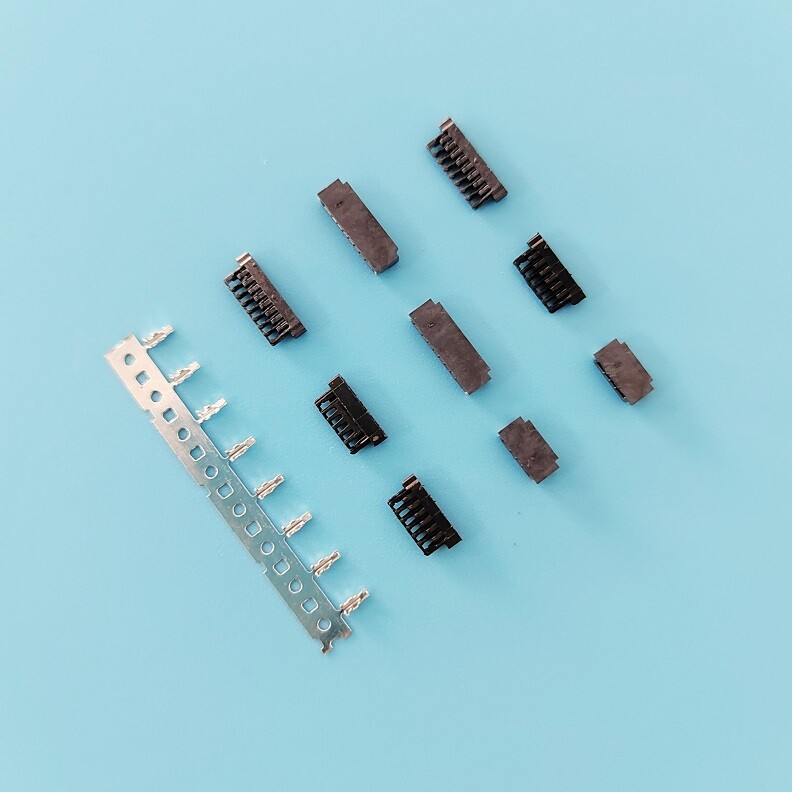

A0802(DF52)alternative DF52 0.80mm Housing Terminal
Product detailsSpecifications:
Rated current: 1A AC, DC
Rated voltage: 30V DC
Temperature range: -40 deg C to +105 deg C
Contact resistance: 20m Omega Max.
Insulation resistance: 100M Omega Min.
Withstand pressure: 200V AC/minute
Housing: PA4T 94V-0 black
Terminal material: phosphor copper tin/gold plated
Pin body material: LCP-94V-0 black
PIN Pin material: phosphorus copper tin plating
Pin holder ground disc material: brass tin plated
