SHR-02V-S-B,SHR-04V-S-B,SHR-06V-S-B,SHR-08V-S-B,SHR-10V-S-B,SHR-12V-S-B,SHR-20V-S-B,SM02B-SRSS-TB,SM04B-SRSS-TB,SM06B-SRSS-TB.SM08B-SRSS-TB,SM10B-SRSS-TB,SHDR-12V-S-B,SHDR-14V-S-B,SHDR-20V-S-B,SHDR-30V-S-B,SM20B-SRDS-TF(LF)(SN),SM30B-SRDS-TF(LF)(SN),BM20B-SRDS-TF(LF)(SN),1.00 Housing,1.0 Cable,1.0 T

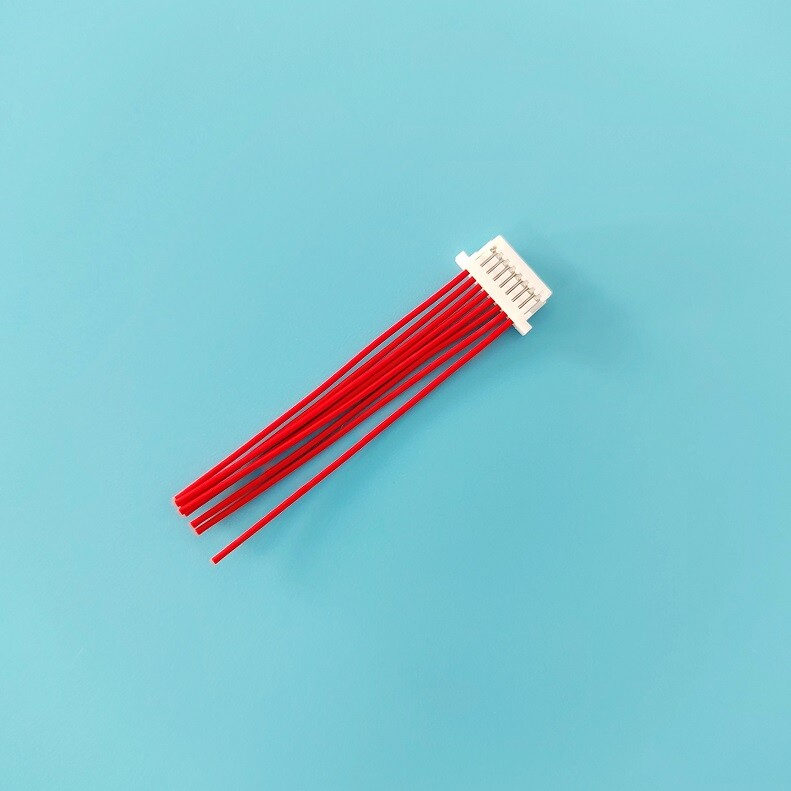

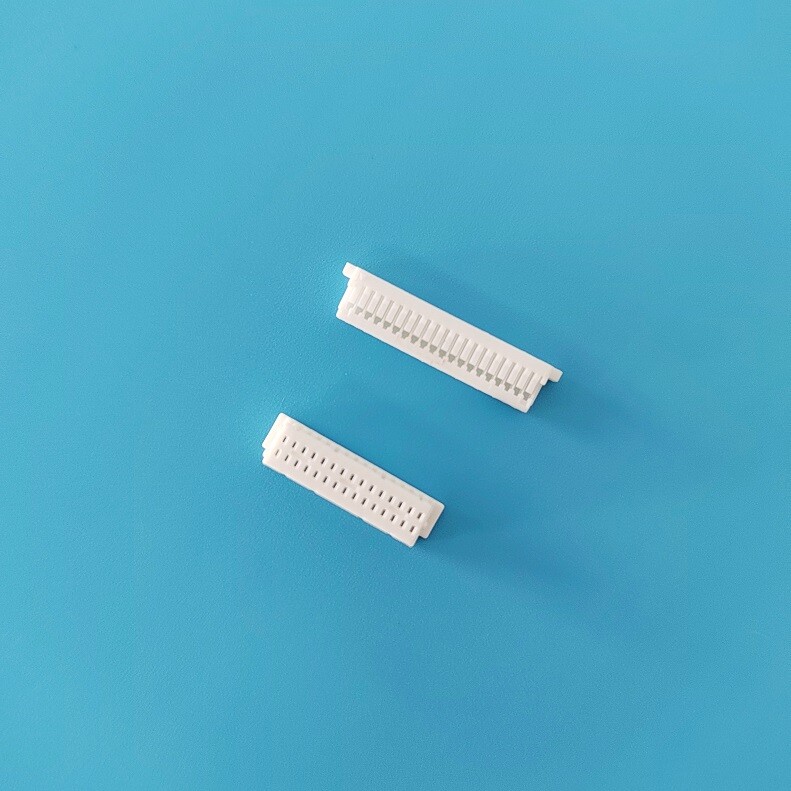

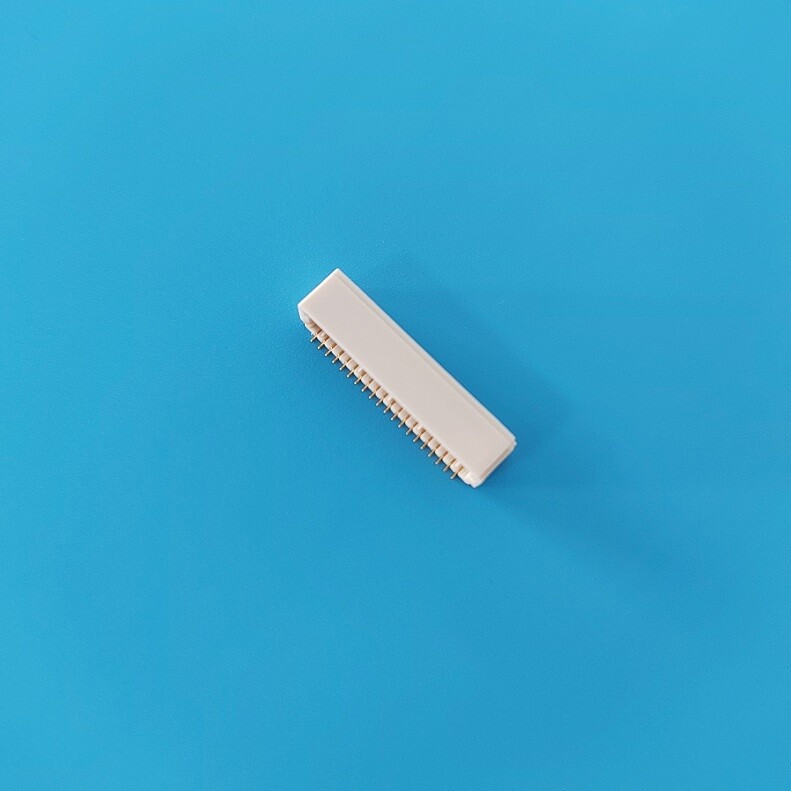

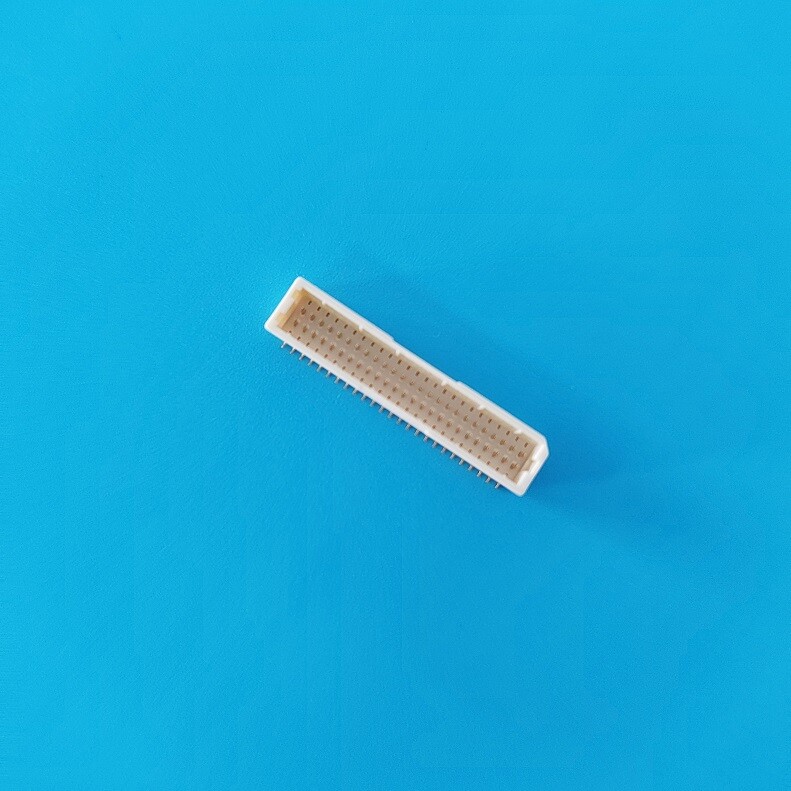

A1000(SH)alternative SH 1.00 Housing Terminal SMT Wafer Cable

Specifications:

Rated current: 1A AC, DC

Rated voltage: 50V DC

Temperature range: -40 deg C to +105 deg C

Contact resistance: 20m Omega Max.

Insulation resistance: 100M Omega Min.

Voltage: 500V AC/minute

Housing: PA66/PBT 94V-0 White

Terminal material: phosphor copper tin/gold plated

Pin body material: LCP/PA9T-94V-0 Gray/Beige

PIN PIN material: phosphorus copper tin/gold plating

Pin holder ground disc material: phosphorus copper tin/gold plating
