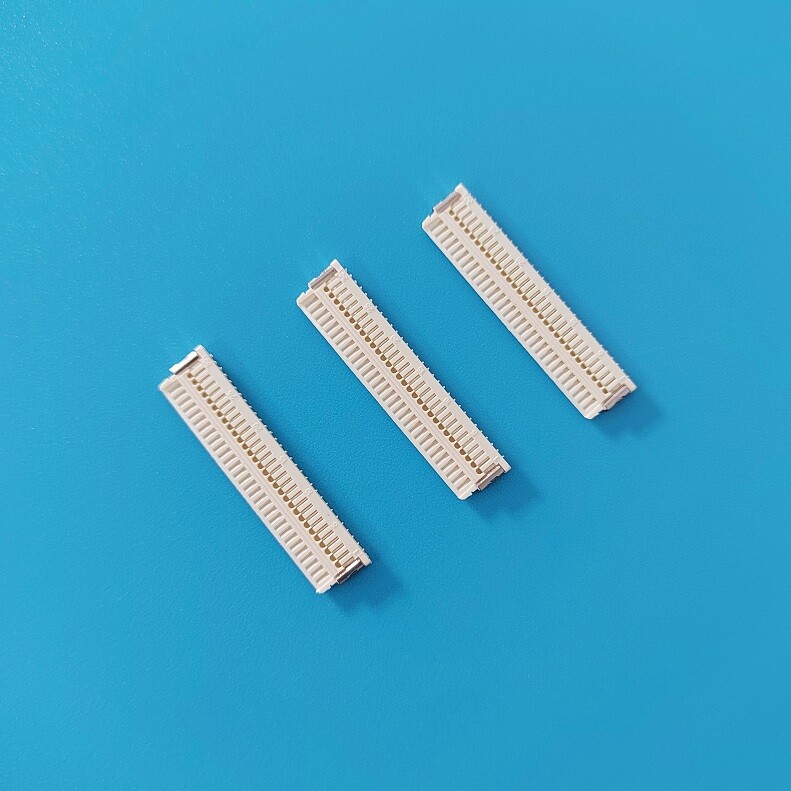

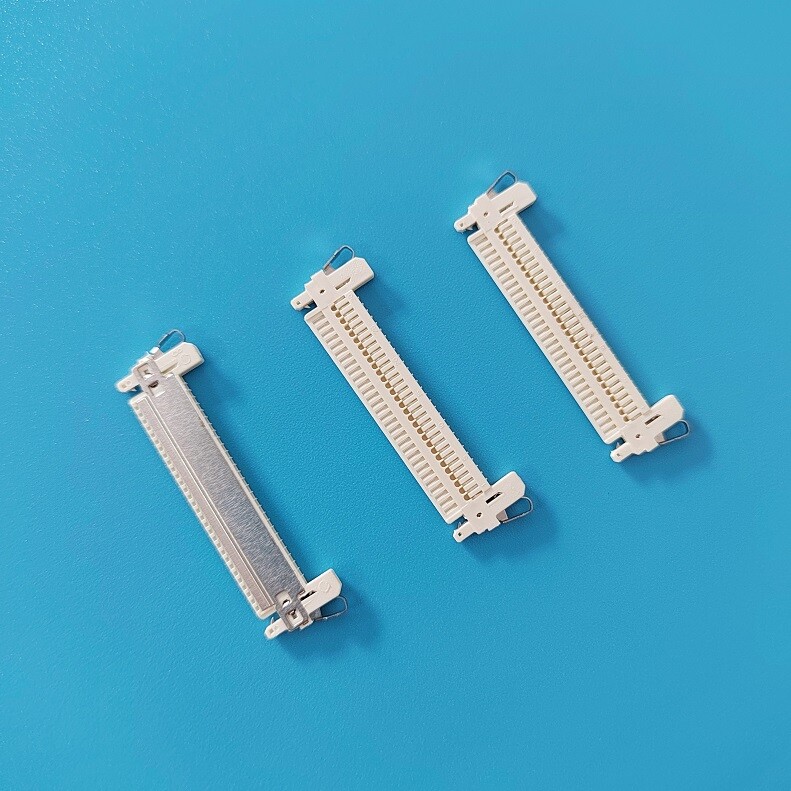

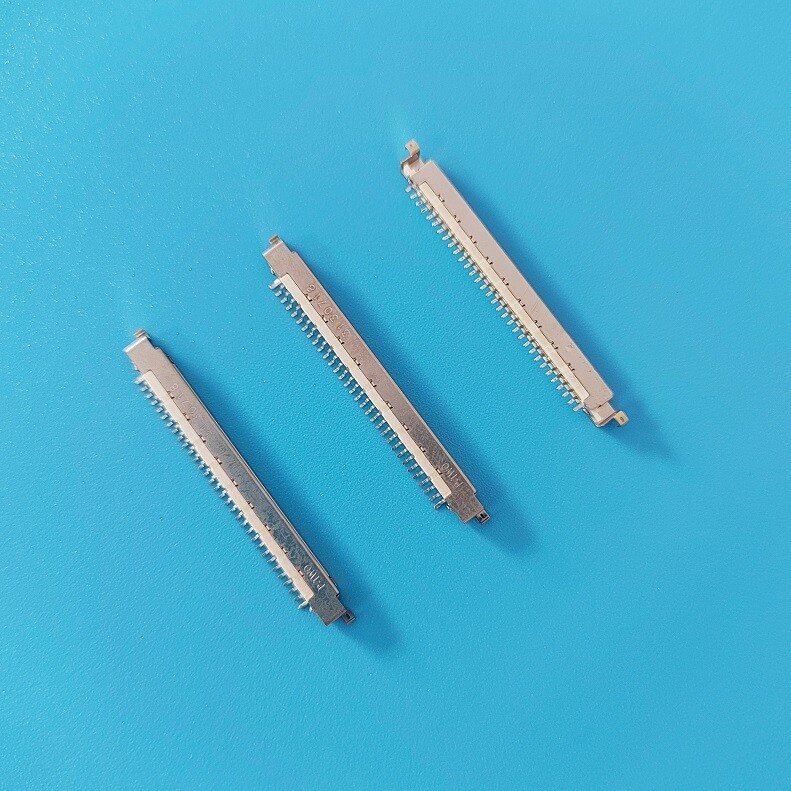

A1001(FI-X)alternative FI-X Housing Terminal LVDS Connector
Product detailsSpecifications:
Rated current: 1A AC, DC
Rated voltage: 200V DC
Temperature range: -40 deg C to +105 deg C
Contact resistance: 40m Omega Max.
Insulation resistance: 100M Omega Min.
Voltage: 500V AC/minute
Housing: PA46/PA66 94V-0 natural/blacl
Terminal material: gold-plated phosphor copper
Pin body material: LCP 94V-0 gray/black

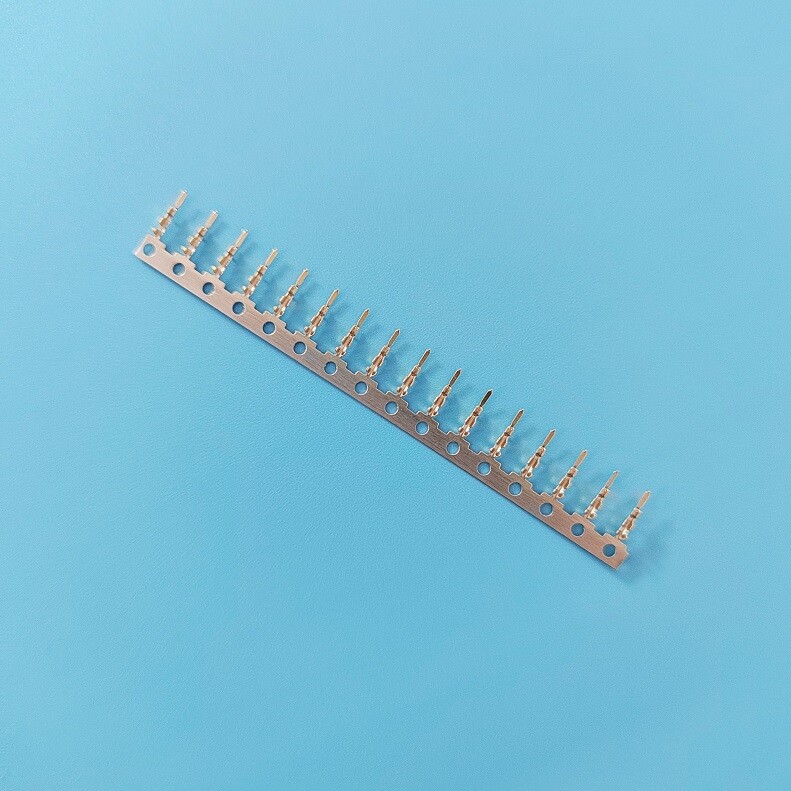

PIN Pin material: phosphorus copper tin plating
Pin holder ground disc material: brass tin plated
