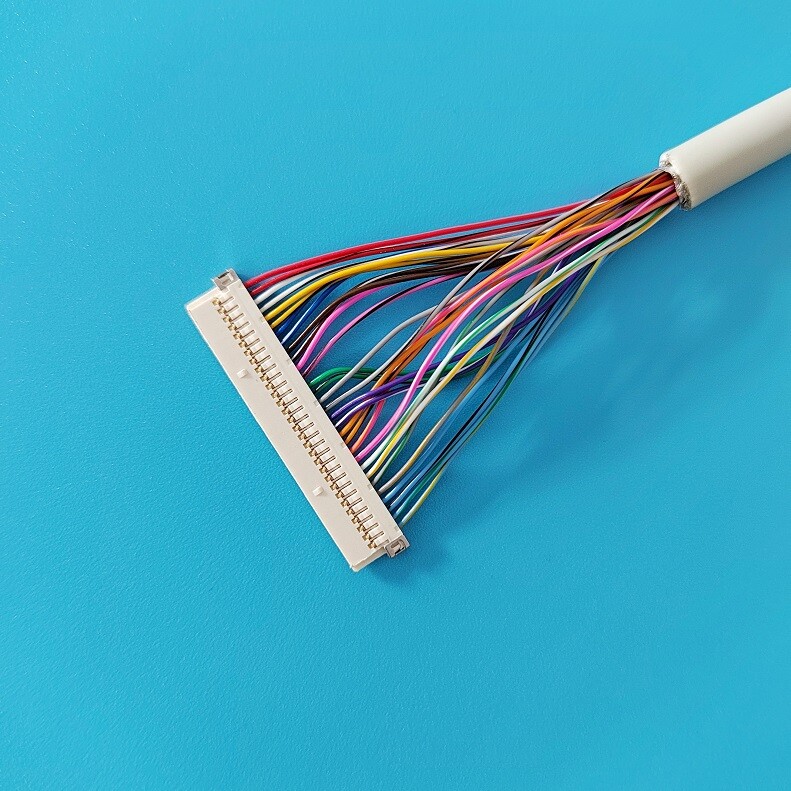

A1003(DF19)alternative DF19 Housing Terminal LVDS Connector Cable
Product detailsSpecifications:
Rated current: 1A AC, DC
Rated voltage: 100V DC
Temperature range: -40 deg C to +105 deg C
Contact resistance: 30m Omega Max.
Insulation resistance: 500M Omega Min.
Voltage: 500V AC/minute
Housing: PA66 94V-0 beige
Terminal material: gold-plated phosphor copper
Pin body material: PA6T 94V-0 beige
PIN Pin material: phosphorus copper tin plating
Pin holder ground disc material: brass tin plated
