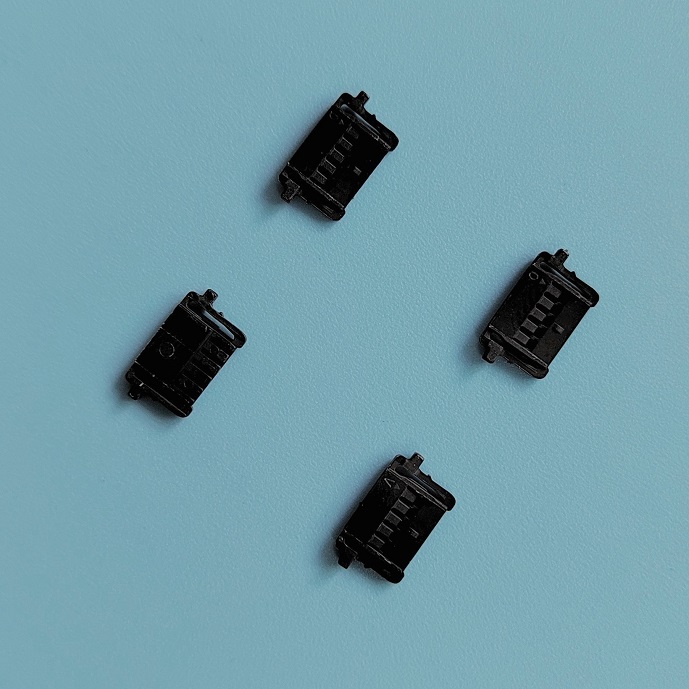

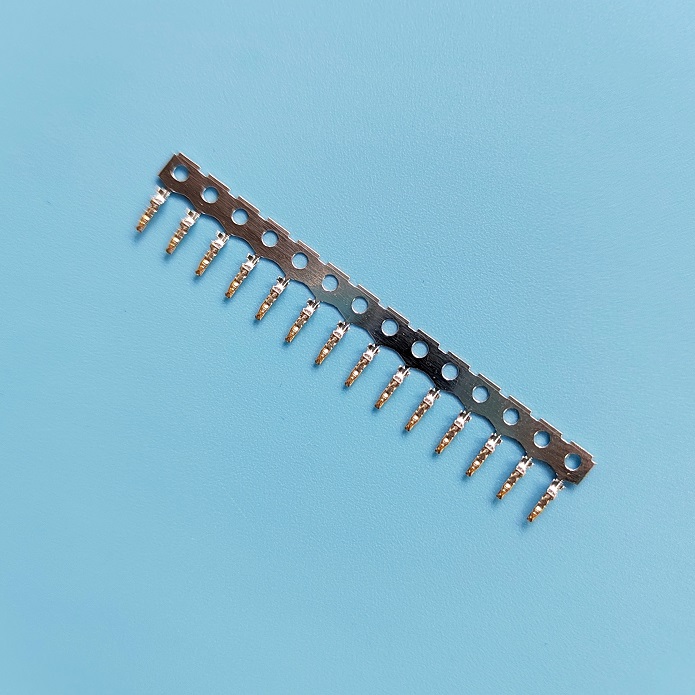

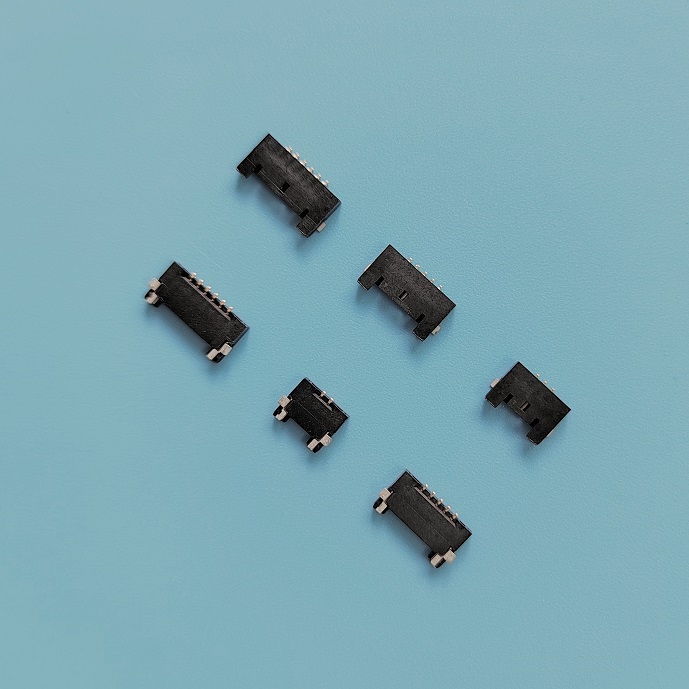

A1004(503764) Domestic replacement 503764 1.00 rubber shell 503765 terminal 503763 pin holder
Product detailsSpecifications:
Rated current: 1.5~2AA AC, DC
Rated voltage: 150V DC
Temperature range: -40 deg C to +105 deg C
Contact resistance: 20m Omega Max.
Insulation resistance: 1000M Omega Min.
Voltage: 500V AC/minute
H: PA66 94V-0 black
Terminal material: gold-plated phosphorous copper/tin
Pin body material: PA4T 94V-0 black
PIN PIN material: phosphorus copper gold/tin
Pin base ground lug material: brass tinned
