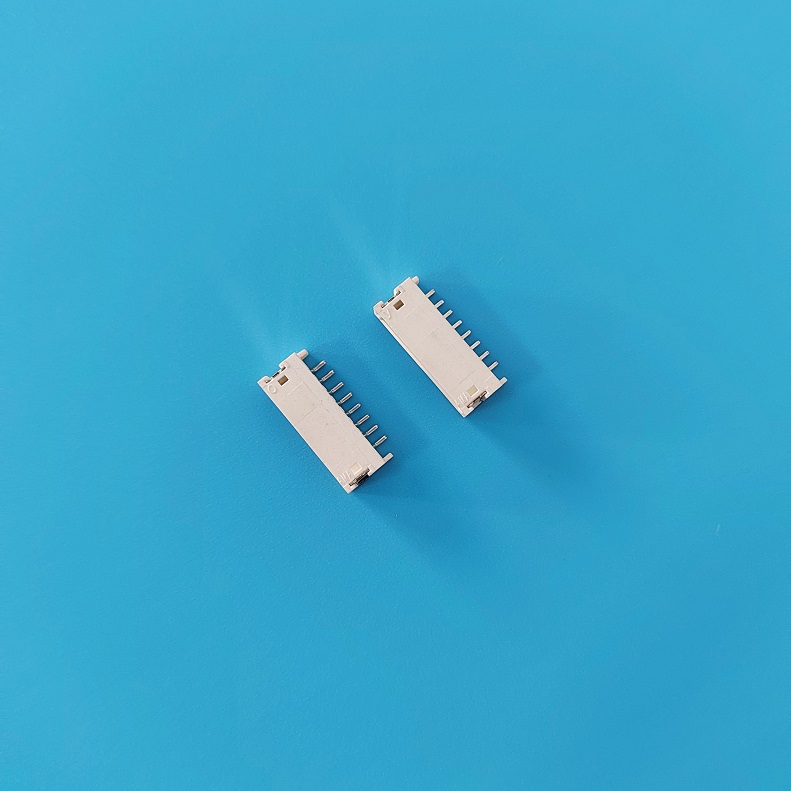

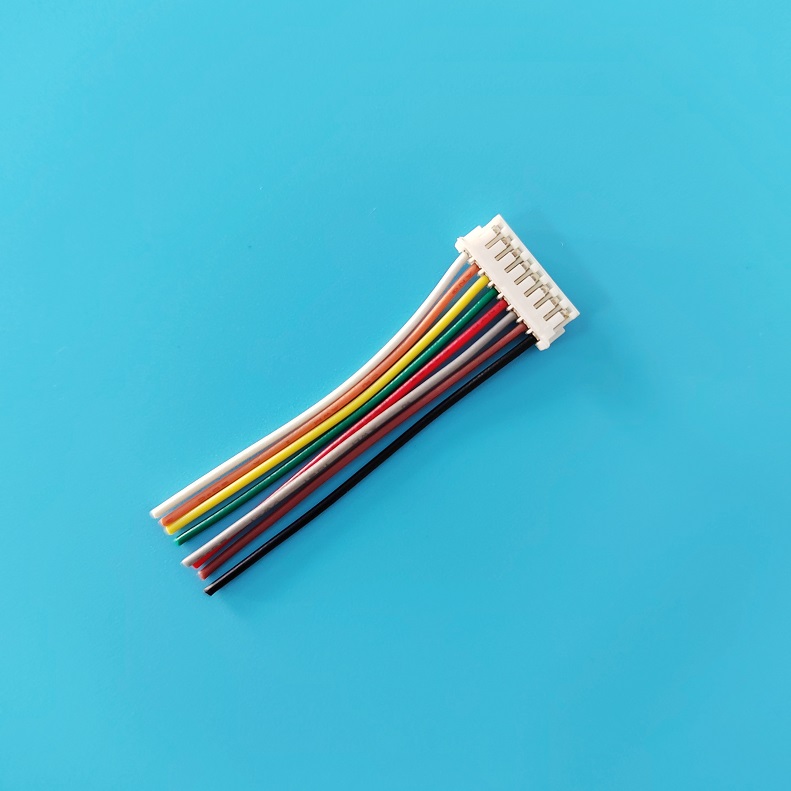

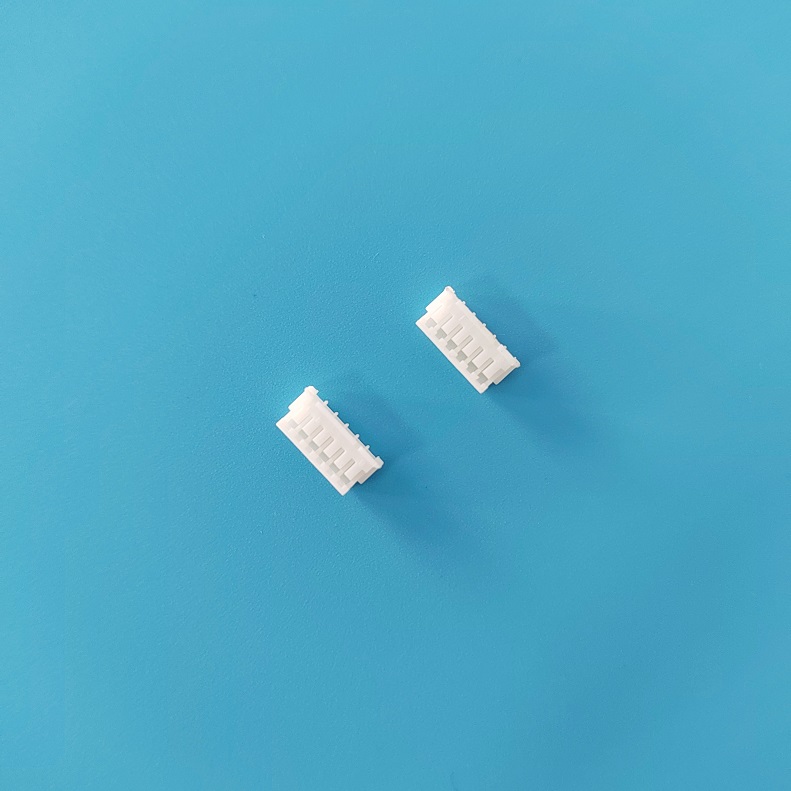

A1500(ZH)alternative ZH 1.50mm Housing Terminal Cable Wafer
Product detailsSpecifications:
Rated current: 1A AC, DC
Rated voltage: 100V DC
Temperature range: -40 deg C to +105 deg C
Contact resistance: 20m Omega Max.
Insulation resistance: 500M Omega Min.
Voltage: 500V AC/minute
Housing: PA66 94V-0 White
Terminal material: phosphor copper tin plating
DIP pin body material: PA66 94V-0 White/gray
SMT pin body material: LCP 94V-0 natural color
PIN material: brass tin plated
Pin holder ground disc material: brass tin plated
