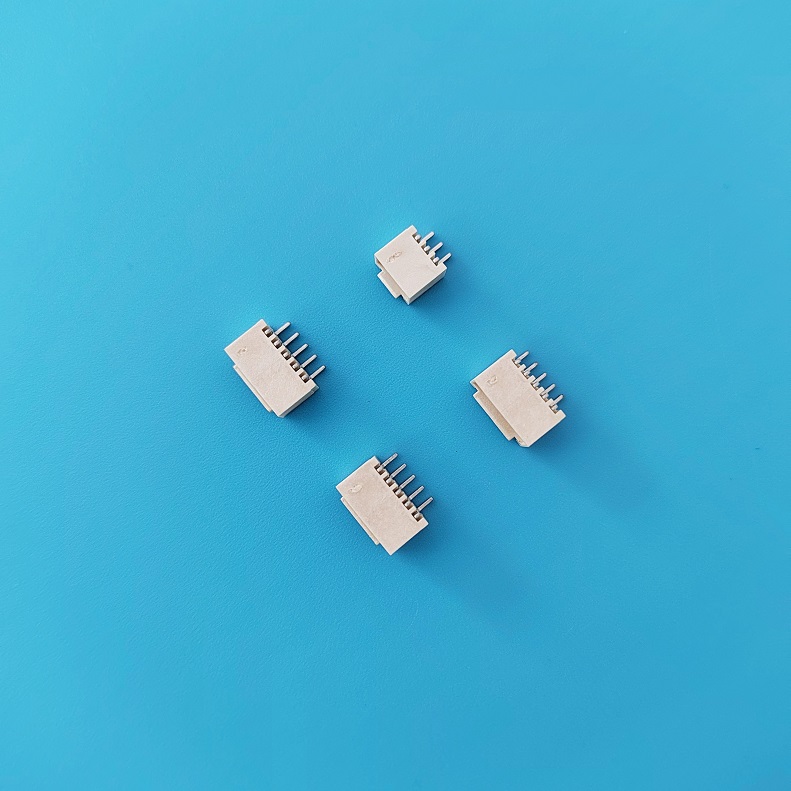

A1501(87439)alternative 1.50mm Housing Terminal Cable Wafer
Product detailsSpecifications:
Rated current: 3A AC, DC
Rated voltage: 350V DC
Temperature range: -40 deg C to +105 deg C
Contact resistance: 20m Omega Max.
Insulation resistance: 1000M Omega Min.
Voltage: 500V AC/minute
Housing: PA66 94V-0 White

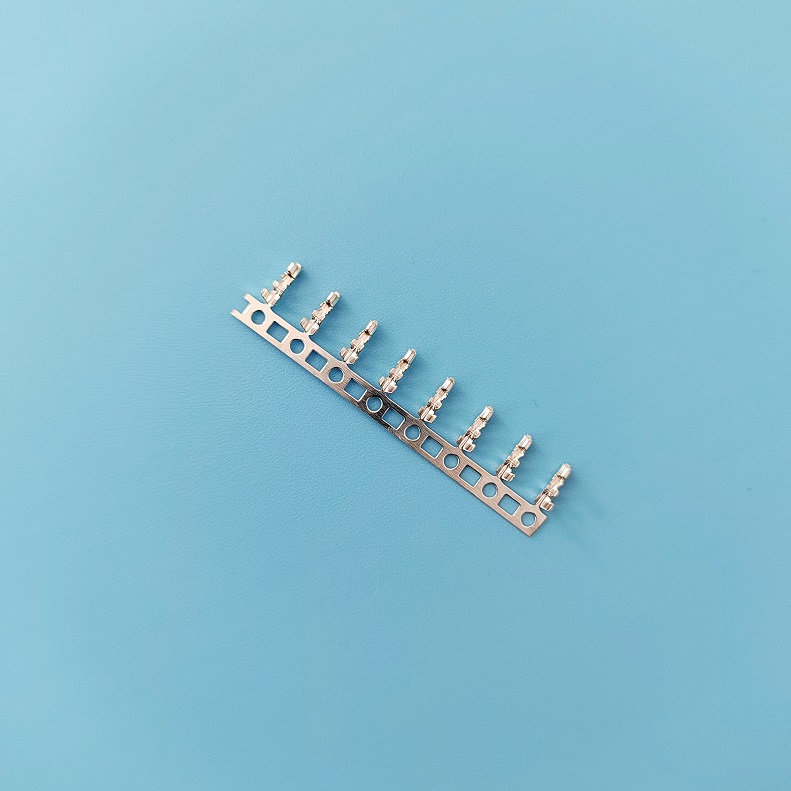

Terminal material: phosphor copper tin plating
SMT pin body material: LCP 94V-0 natural color
PIN material: brass tin plated
