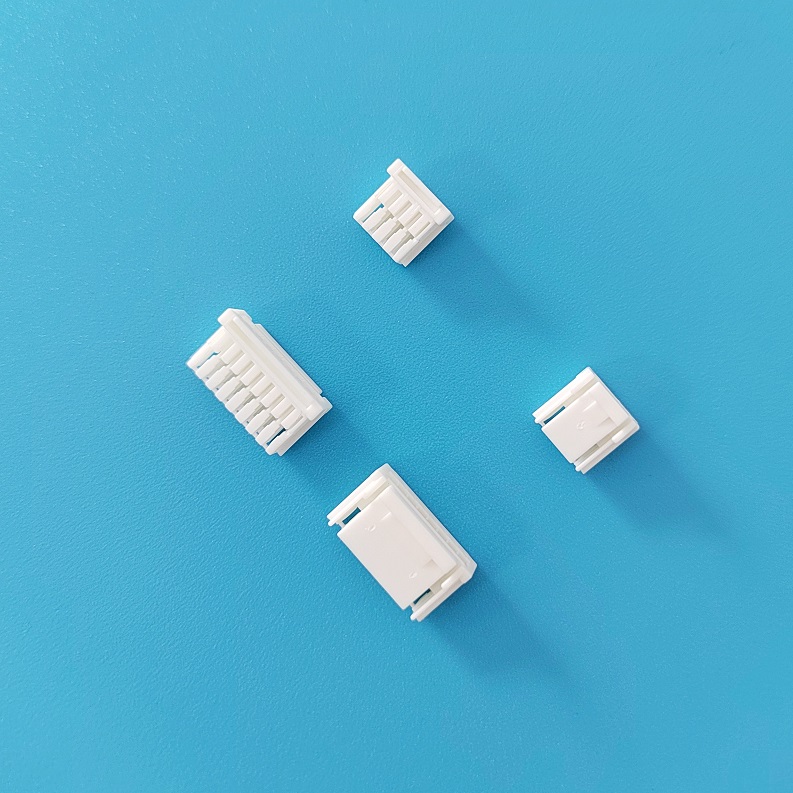

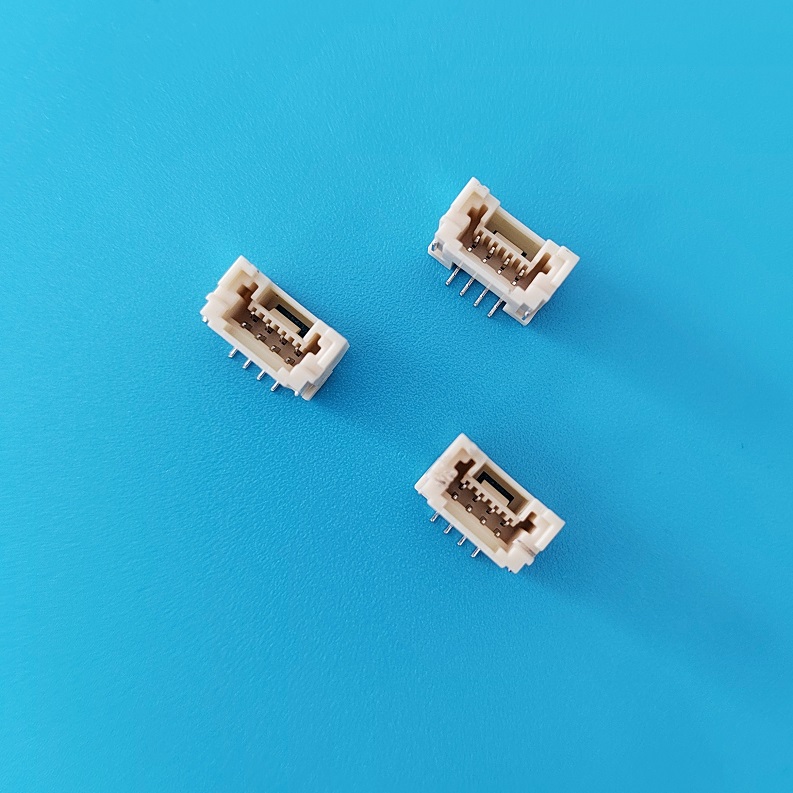

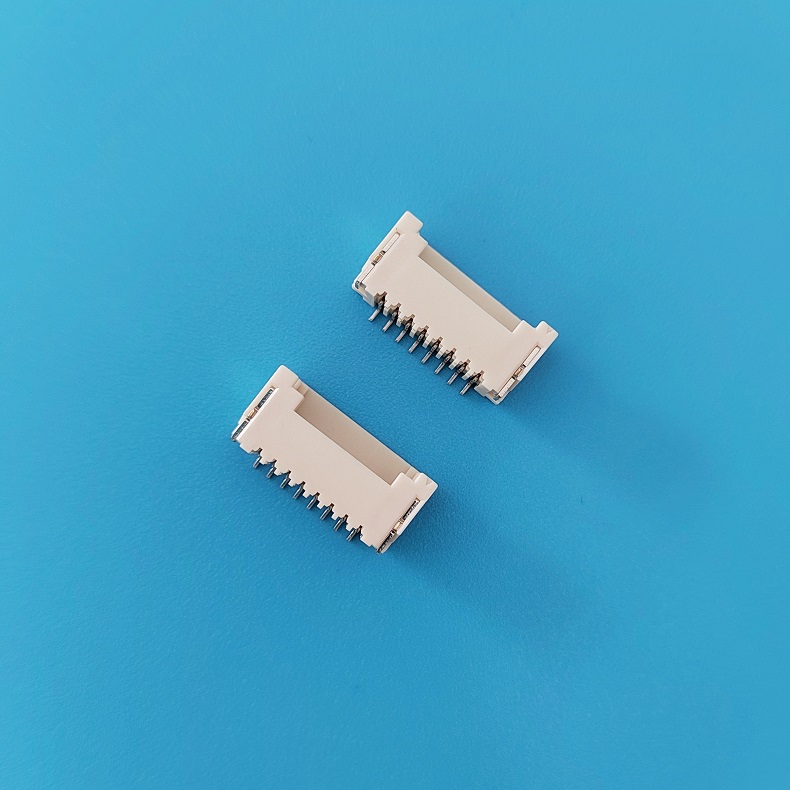

A1502(ZE)alternative ZE 1.50mm Housing Terminal Cable Wafer
Product detailsSpecifications:
Rated current: 2A AC, DC
Rated voltage: 125V DC
Temperature range: -25 deg C to +105 deg C
Contact resistance: 20m Omega Max.
Insulation resistance: 500M Omega Min.
Voltage: 500V AC/minute
Housing: PA66 94V-0 White

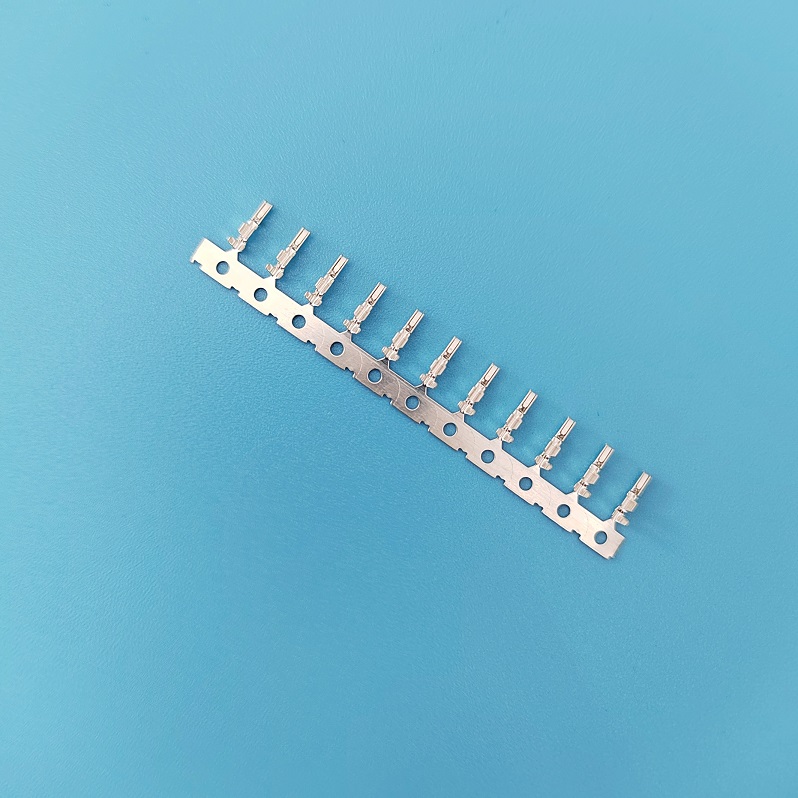

Terminal material: phosphor copper tin
DIP pin body material: PBT 94V-0 White
SMT pin body material: PA9T 94V-0 Beige
PIN Pin material: phosphorus copper tin plating
Pin holder ground disc material: brass tin plated
