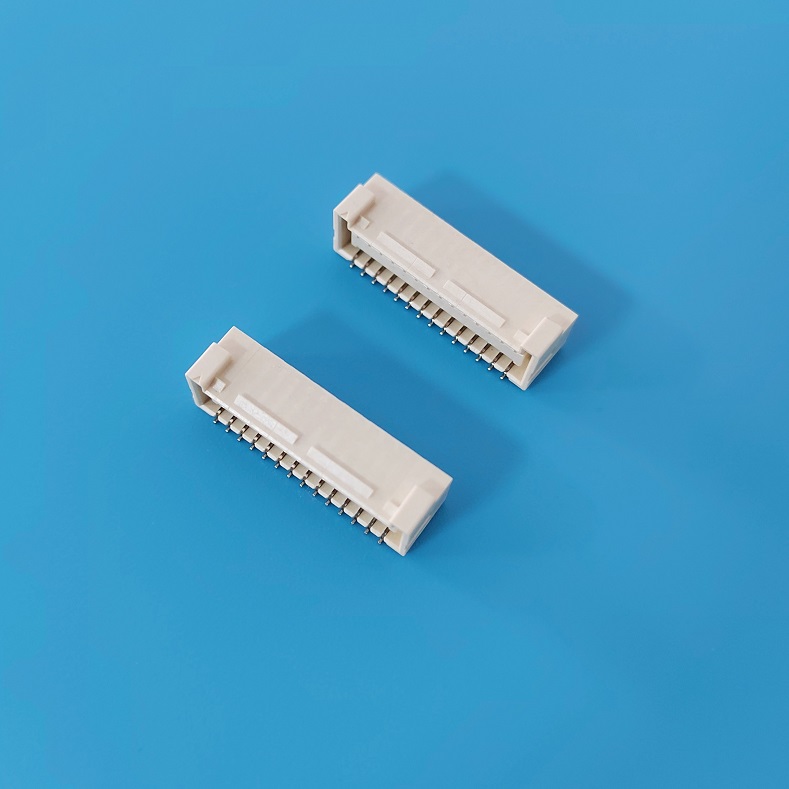

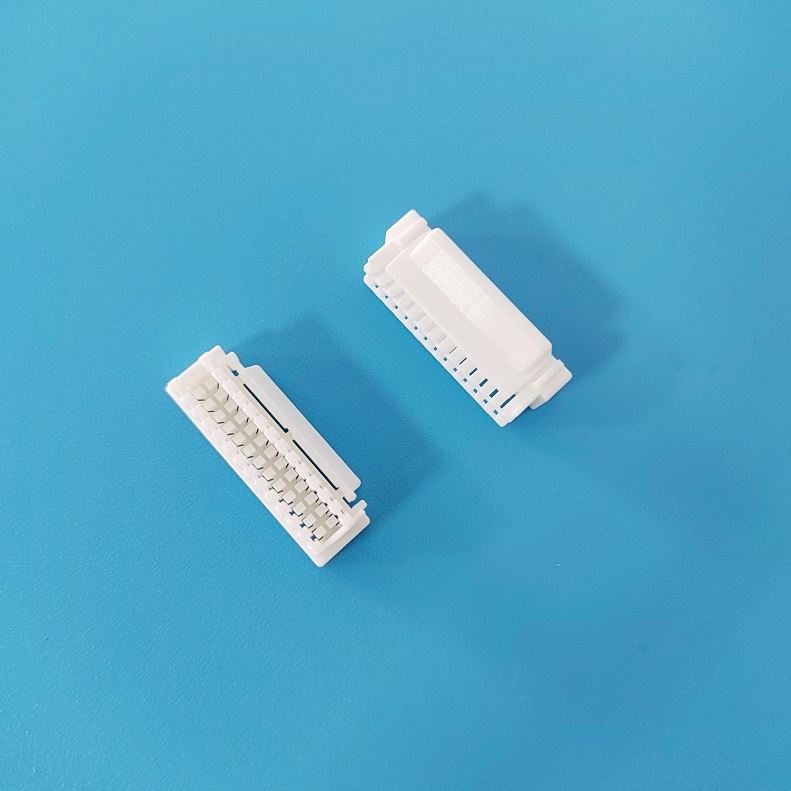

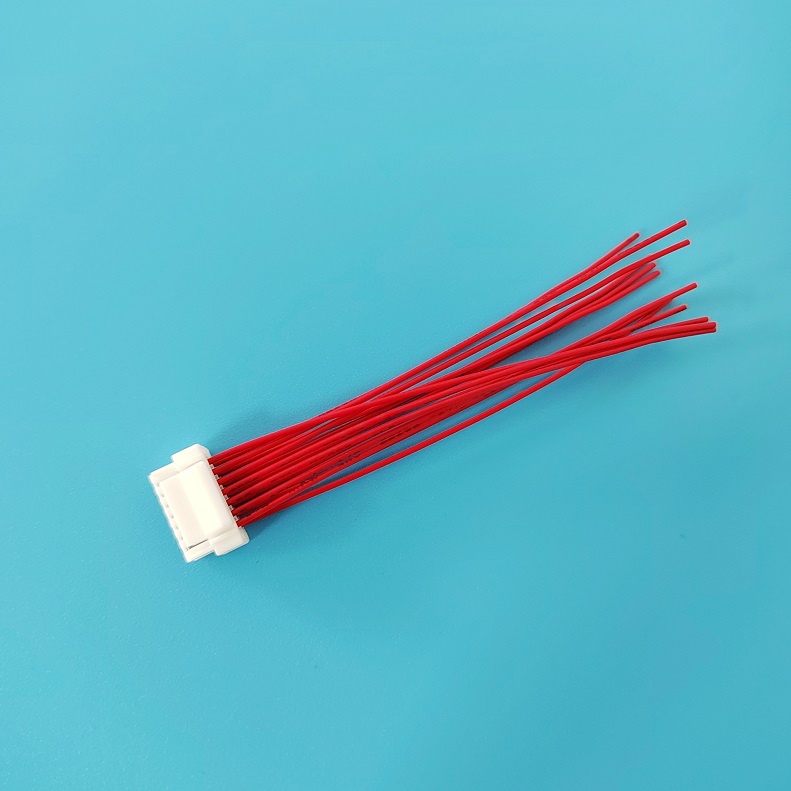

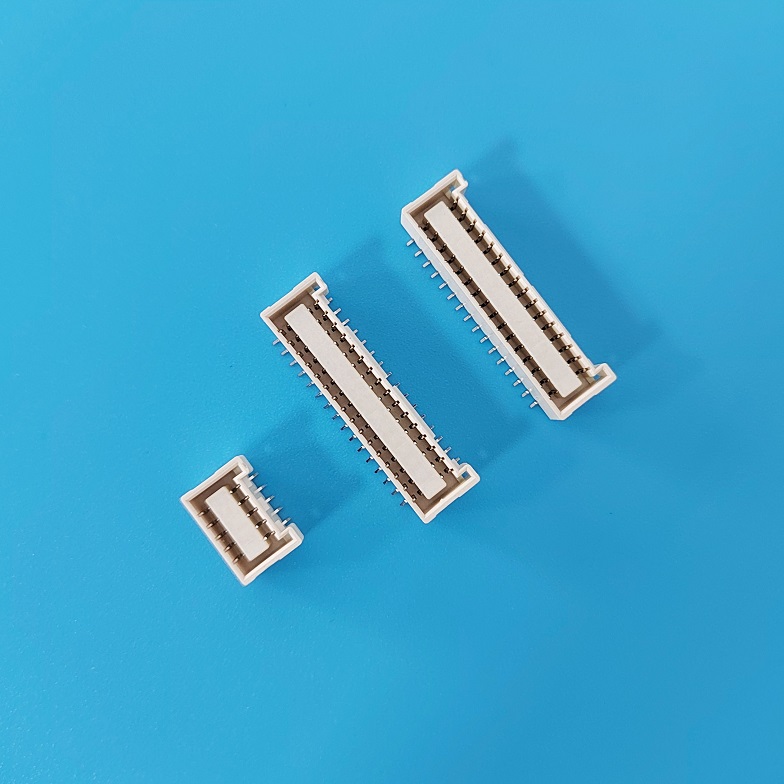

A1503(ZPD)alternative ZPD 1.50 Housing Terminal Wafer Cable
Product detailsSpecifications:
Rated current: 1.5 to 2A AC, DC
Rated voltage: 100V DC
Temperature range: -25 deg C to +105 deg C
Contact resistance: 30m Omega Max.
Insulation resistance: 500M Omega Min.
Voltage: 500V AC/minute
Housing: PA66 94V-0 White
Terminal material: phosphor copper tin/gold plated
SMT pin body material: LCP 94V-0 Gray
PIN Pin material: phosphorus copper tin plating
Pin holder ground disc material: brass tin plated
