A1504(504051)alternative 504051 1.50mm Housing Terminal Cable Wafer
Product detailsSpecifications:
Rated current: 3A AC, DC
Rated voltage: 150V DC
Temperature range: -25 deg C to +105 deg C
Contact resistance: 20m Omega Max.
Insulation resistance: 1000M Omega Min.
Voltage: 500V AC/minute

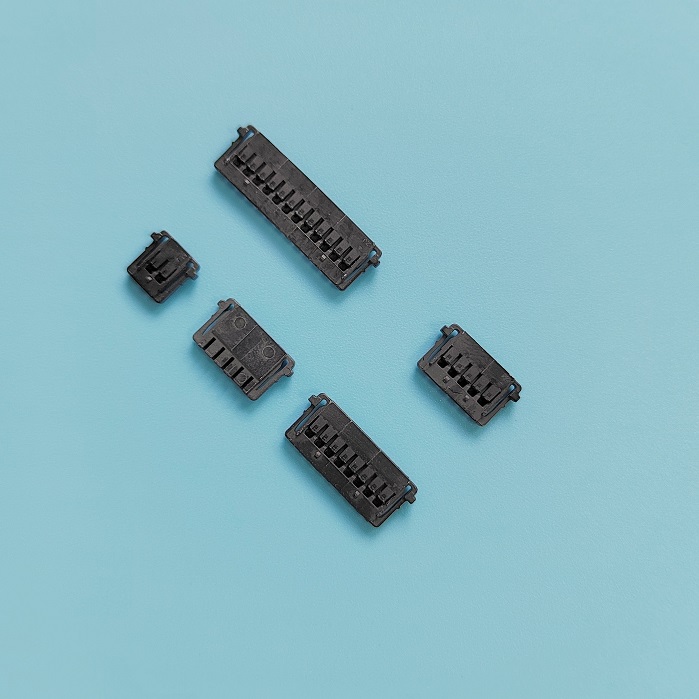

Housing: PA66 94V-0 black

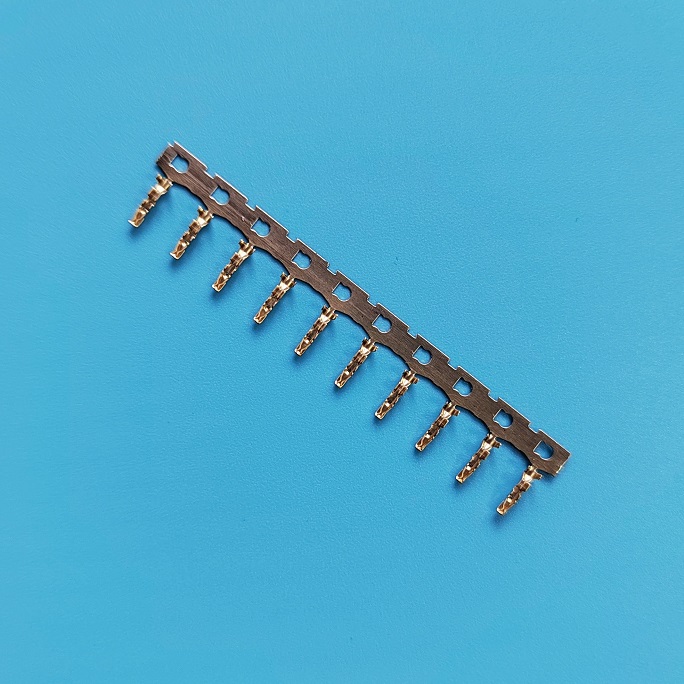

Terminal material: phosphor copper tin/gold plating

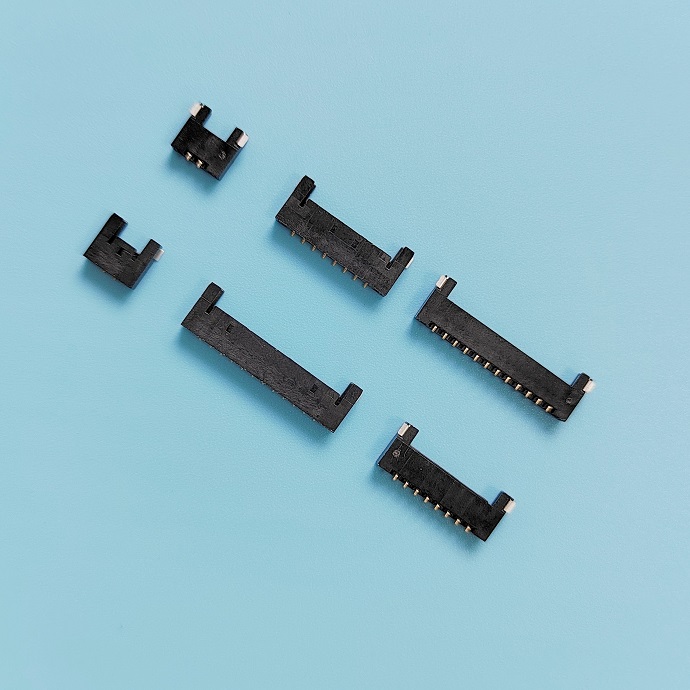

SMT pin body material: PA4T 94V-0 black
PIN Pin material: gold-plated phosphorus copper
Pin base earth plate material: brass tinned
