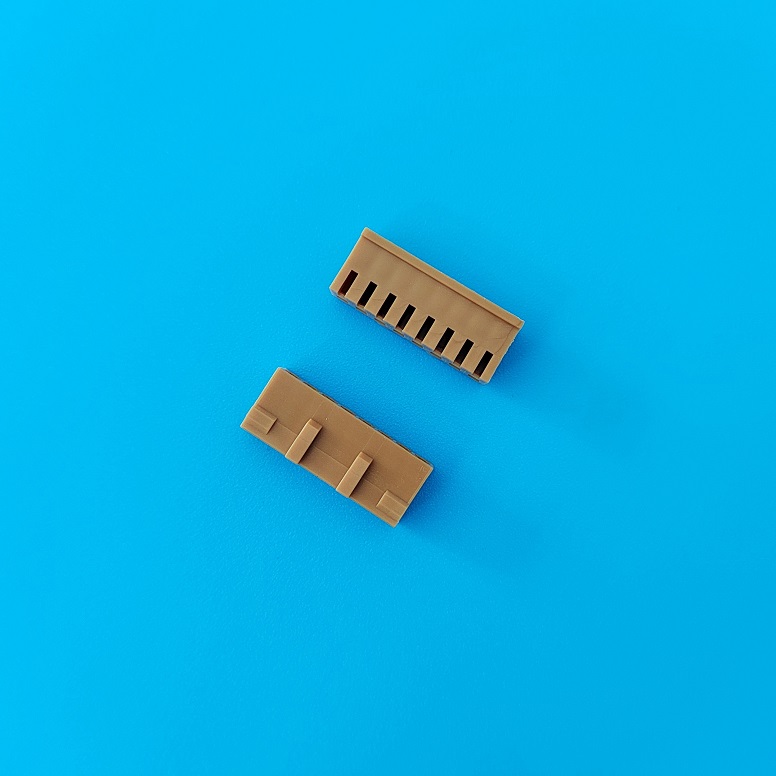

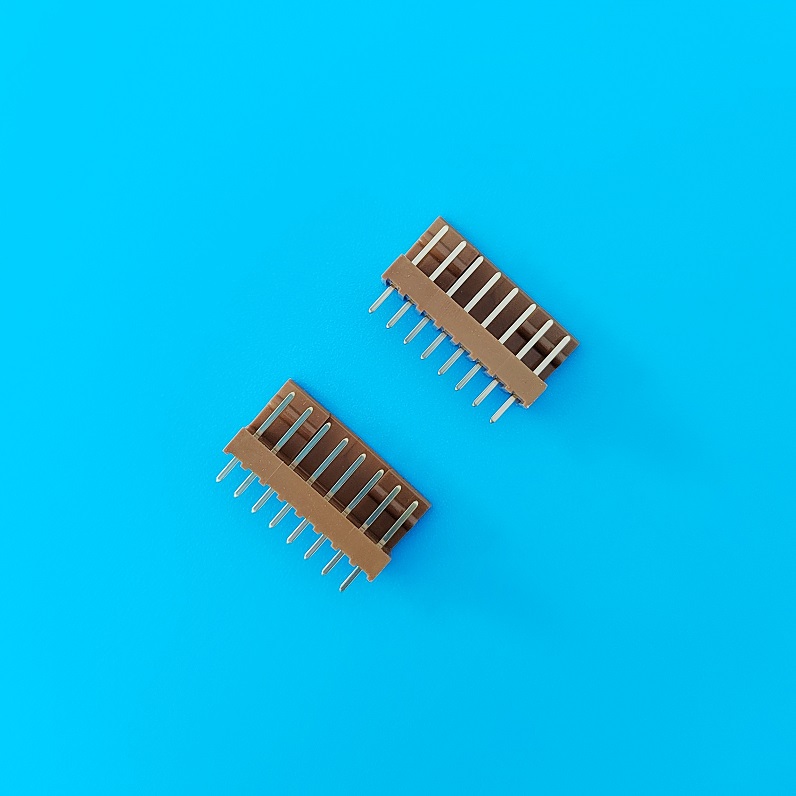

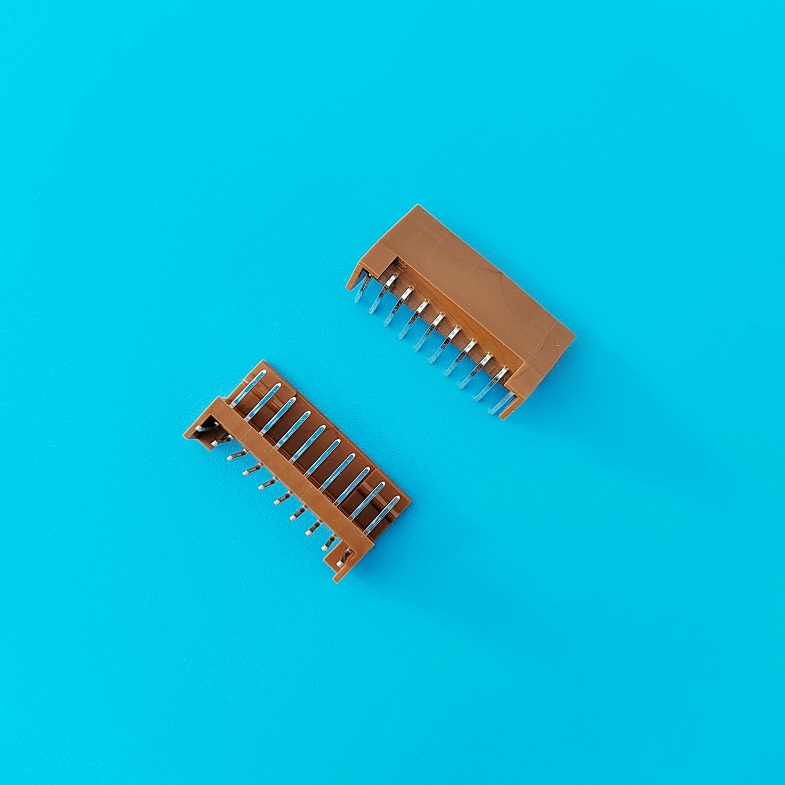

A2500 alternative 2.50mm Housing Terminal Cable Wafer

Specifications:

Rated current: 3A AC, DC

Rated voltage: 500V DC

Temperature range: -40 deg C to +105 deg C

Contact resistance: 20m Omega Max.

Insulation resistance: 1000M Omega Min.

Withstand pressure: 1500V AC/minute

Housing: PA66 94V-0 brown

Terminal material: phosphor copper tin plating

DIP pin body material: PA66 94V-0 brown

PIN material: brass tin plated
