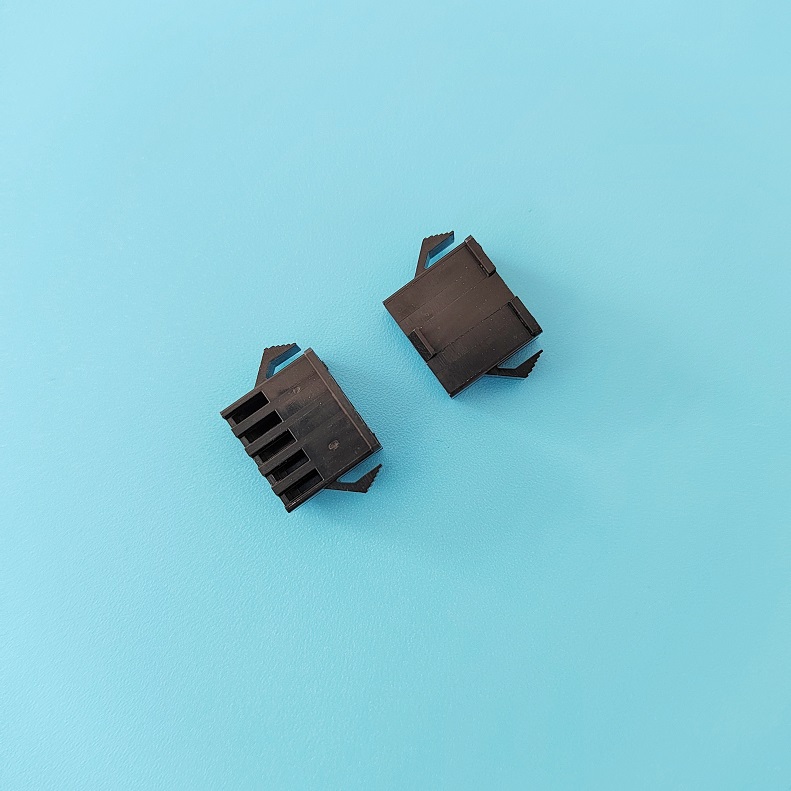

C2500(SM)alternative SM 2.50mm Housing Terminal Cable
Product detailsSpecifications:
Rated current: 3A AC, DC
Rated voltage: 250V DC
Temperature range: -25 deg C to +105 deg C
Contact resistance: 20m Omega Max.
Insulation resistance: 1500M Omega Min.
Withstand pressure: 500V AC/minute
Housing: PA66 94V-0 Back

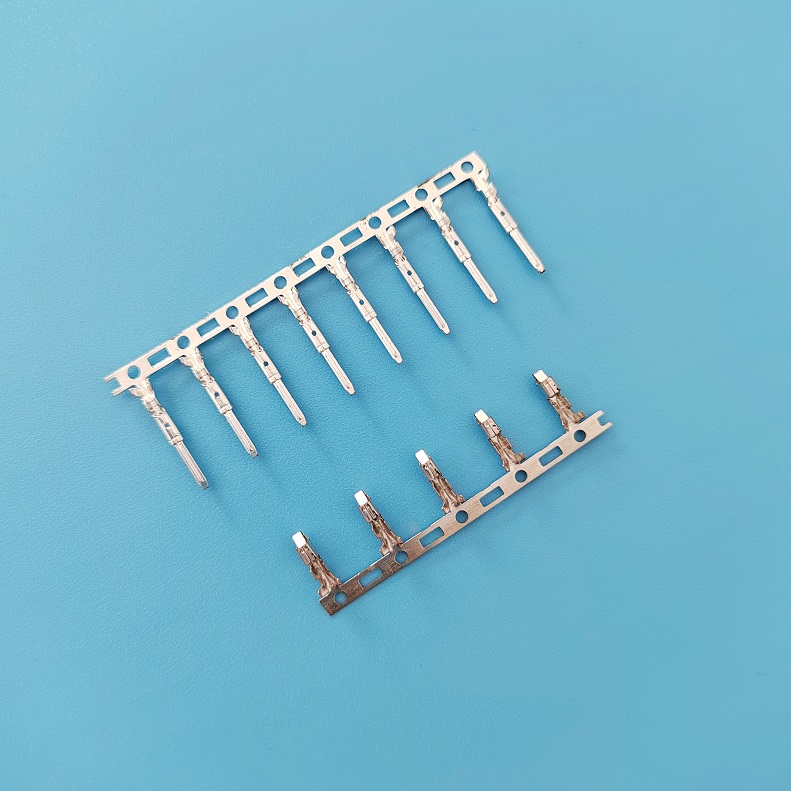

Terminal material: phosphor copper tin plating
