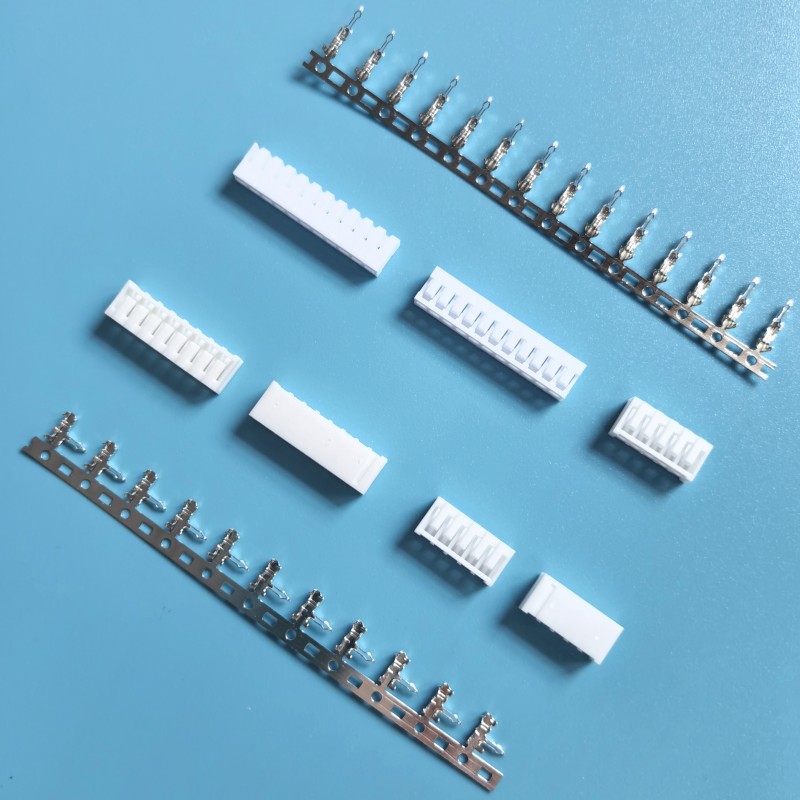

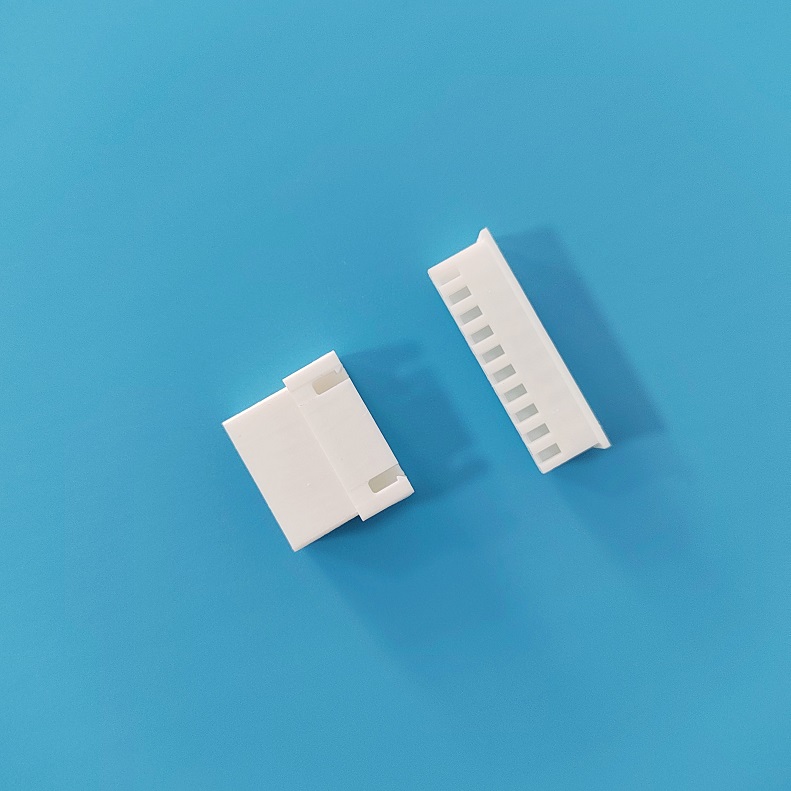

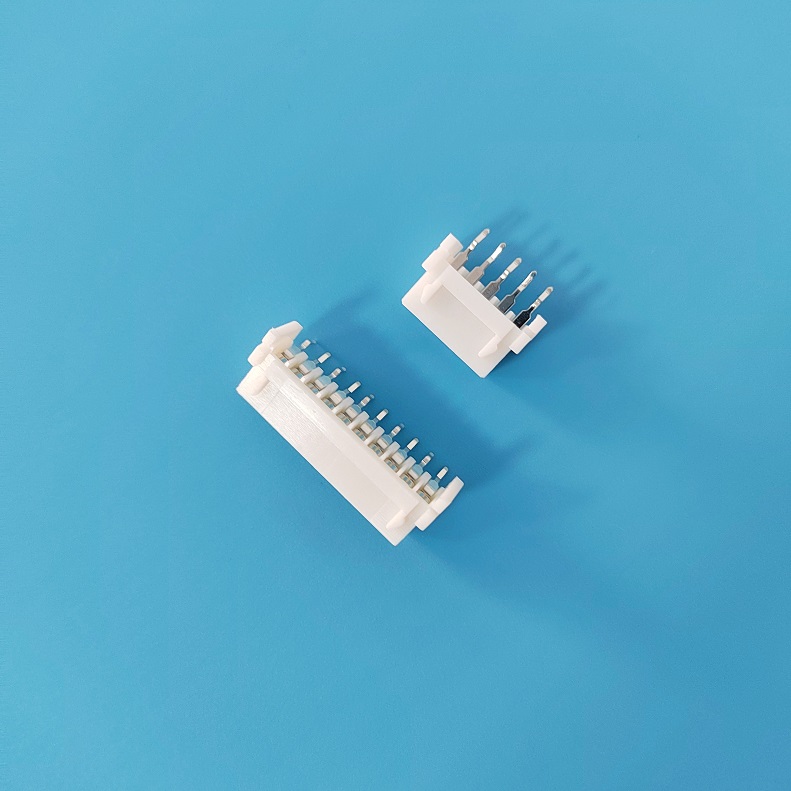

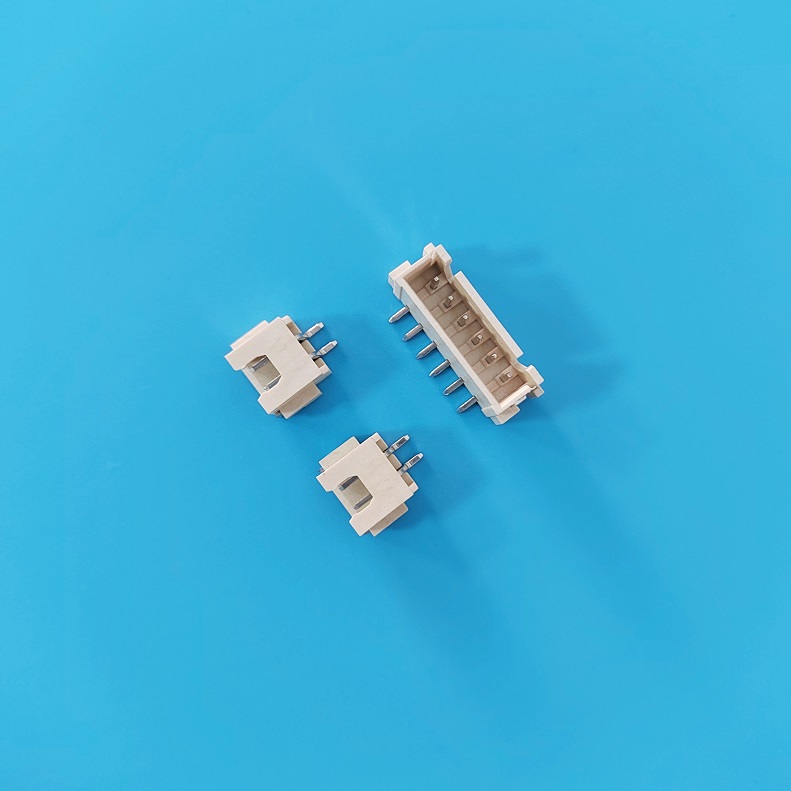

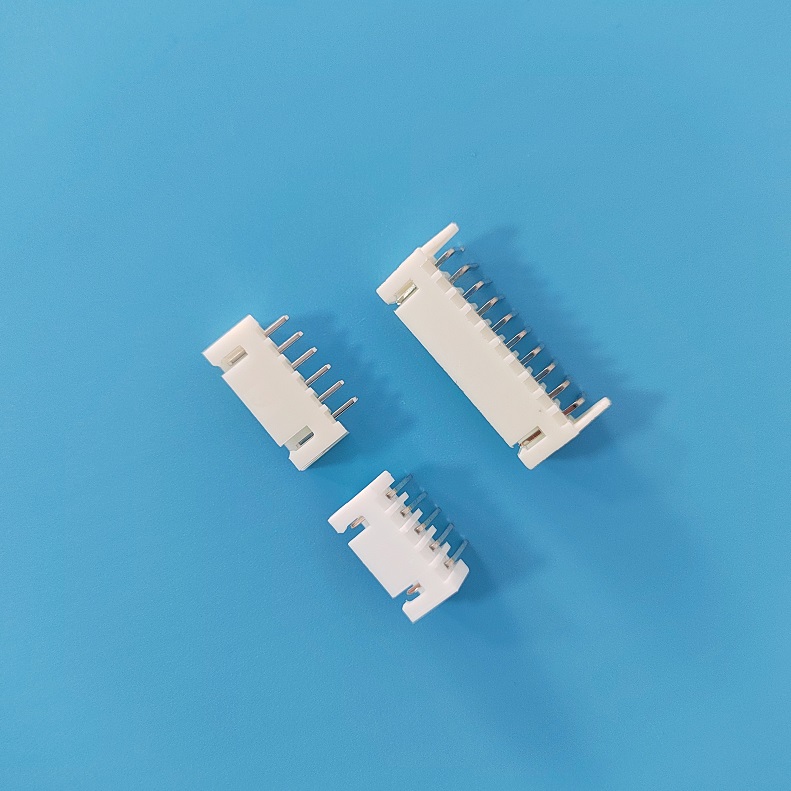

A2501(XH)alternative XH 2.50mm Housing Wafer Cable Terminal
Product detailsSpecifications:
Rated current: 3A AC, DC
Rated voltage: 250V DC
Temperature range: -40 deg C to +105 deg C
Contact resistance: 20m Omega Max.
Insulation resistance: 1000M Omega Min.
Voltage: 1000V AC/minute
Housing: PA66 94V-0 White
Terminal material: phosphor copper tin plated
DIP pin base main material: PA66/PA46-94V-0 White/Natural color
SMT pin body material: LCP-94V-0 natural color
PIN material: brass tin plated
Pin holder ground disc material: brass tin plated
