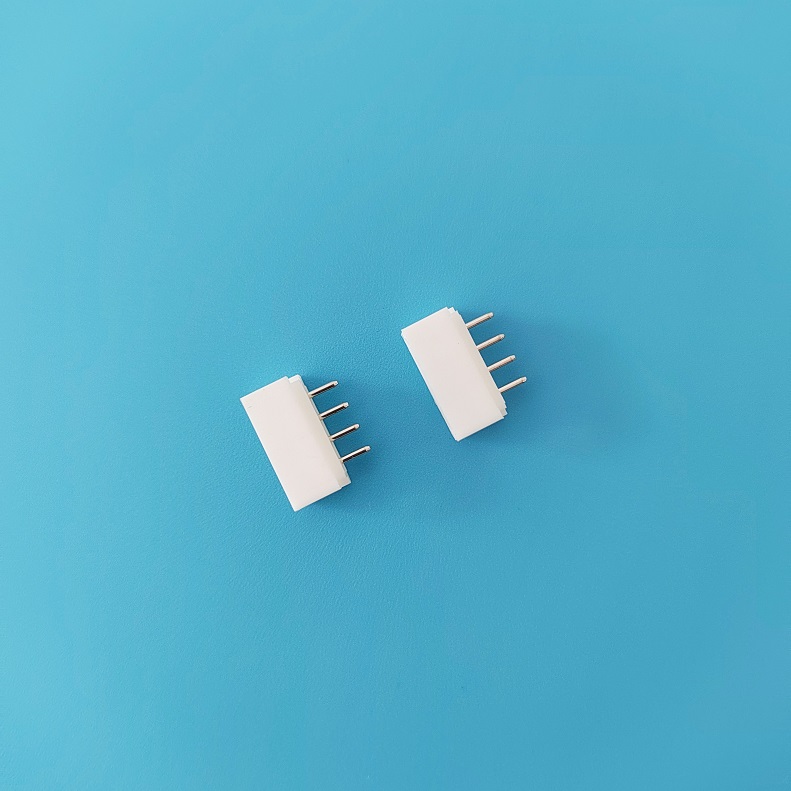

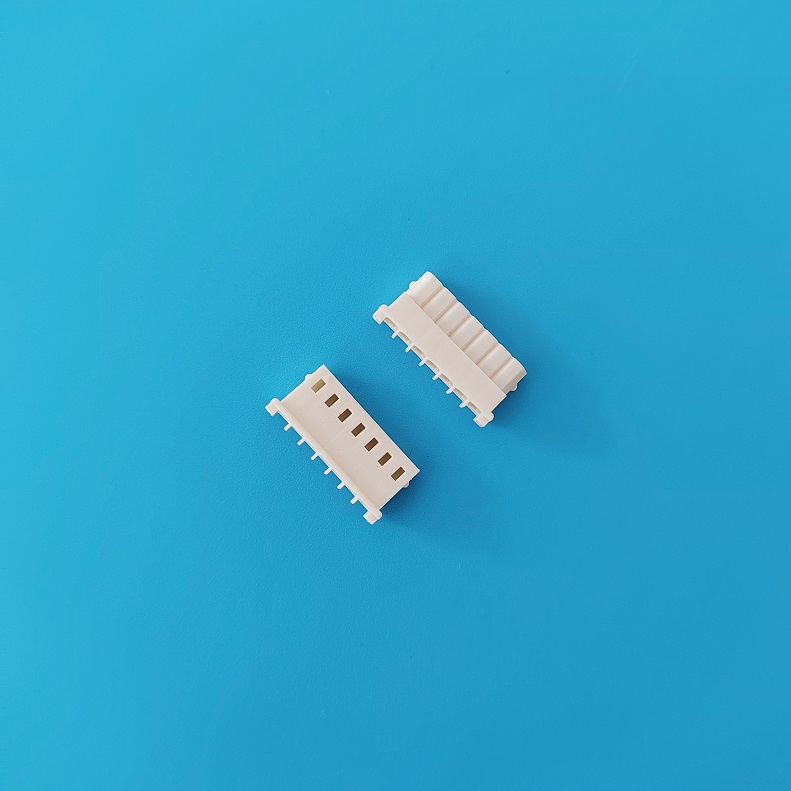

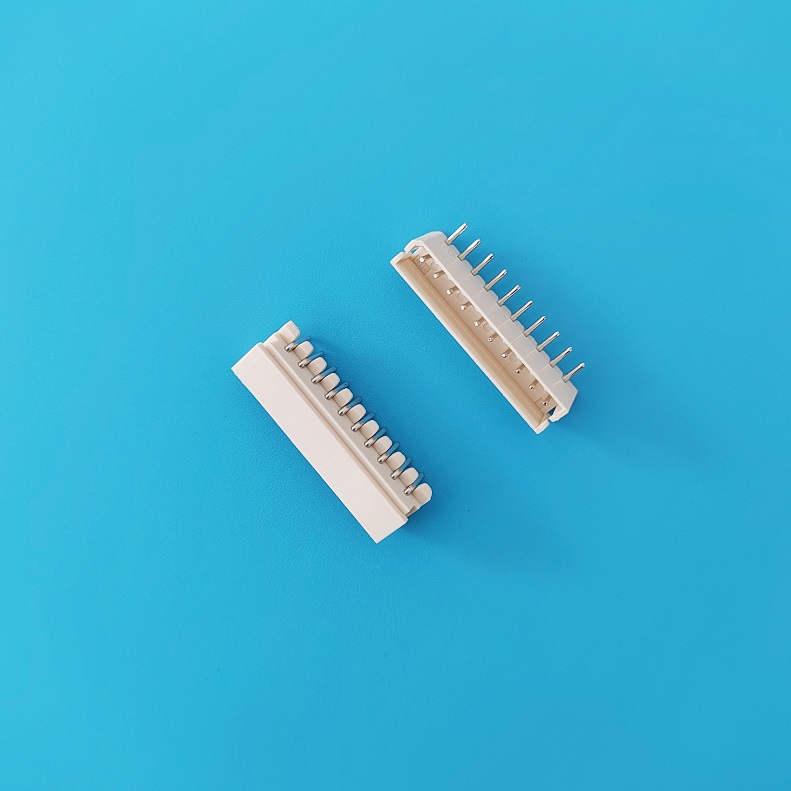

A2504(5264)alternative 5264 2.50mm Housing Terminal Cable Wafer
Product detailsSpecifications:
Rated current: 3A AC, DC
Rated voltage: 250V DC
Temperature range: -40 deg C ~ +105 deg C
Contact resistance: 20m Omega Max.
Insulation resistance: 1000M Omega Min.
Voltage: 1000V AC/minute
Housing: PA66 94V-0 Natural color/beige

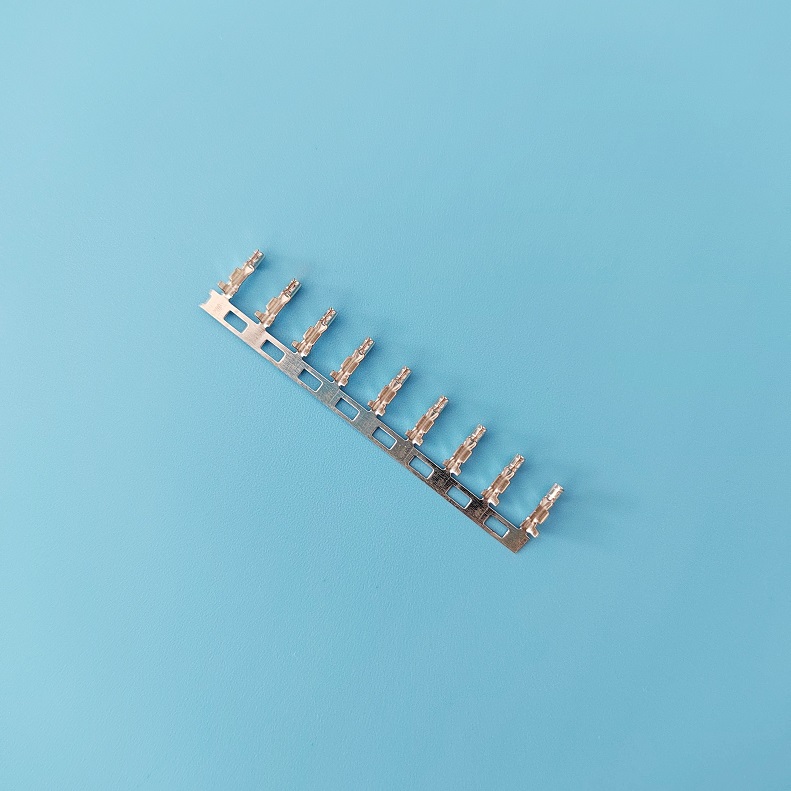

Terminal material: phosphor copper tinned
DIP pin base body material: PA66 94V-0 natural color/beige
PIN PIN material: brass tinned
