A2508(XA)alternative XA 2.50 Housing Terminal Cable Wafer
Product detailsSpecifications:
Rated current: 3A AC, DC
Rated voltage: 250V DC
Temperature range: -40 deg C to +105 deg C
Contact resistance: 20m Omega Max.
Insulation resistance: 1000M Omega Min.
Voltage: 1000V AC/minute

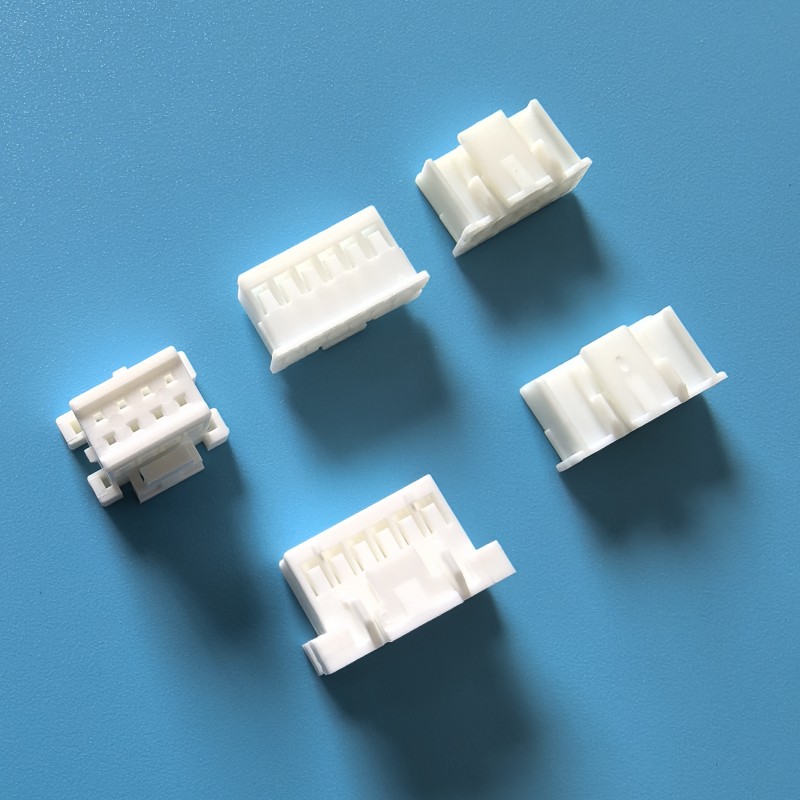

Housing: PA66 94V-0 White
Terminal material: phosphor copper tin plated

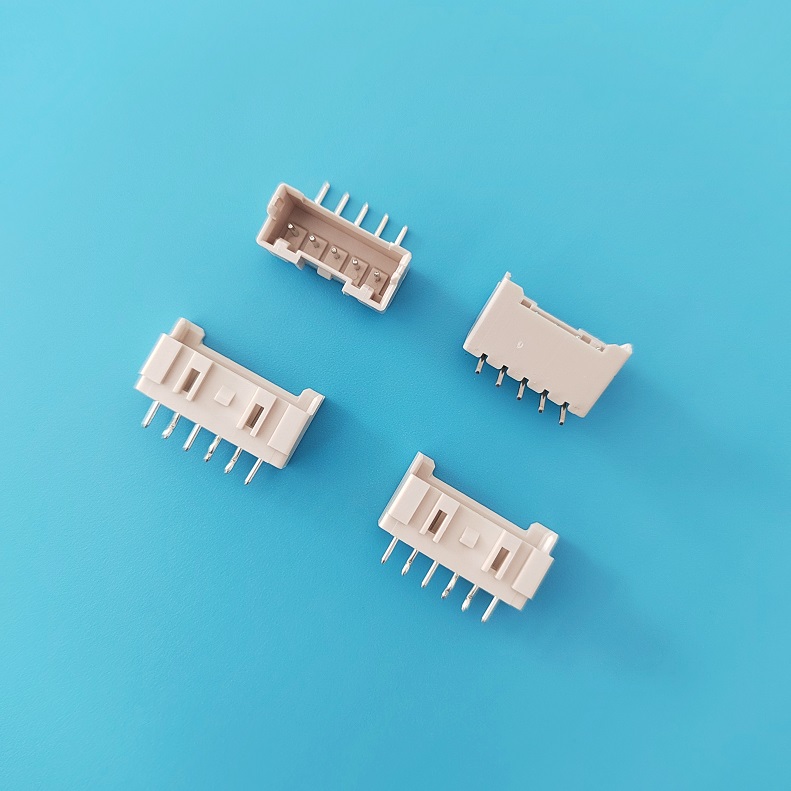

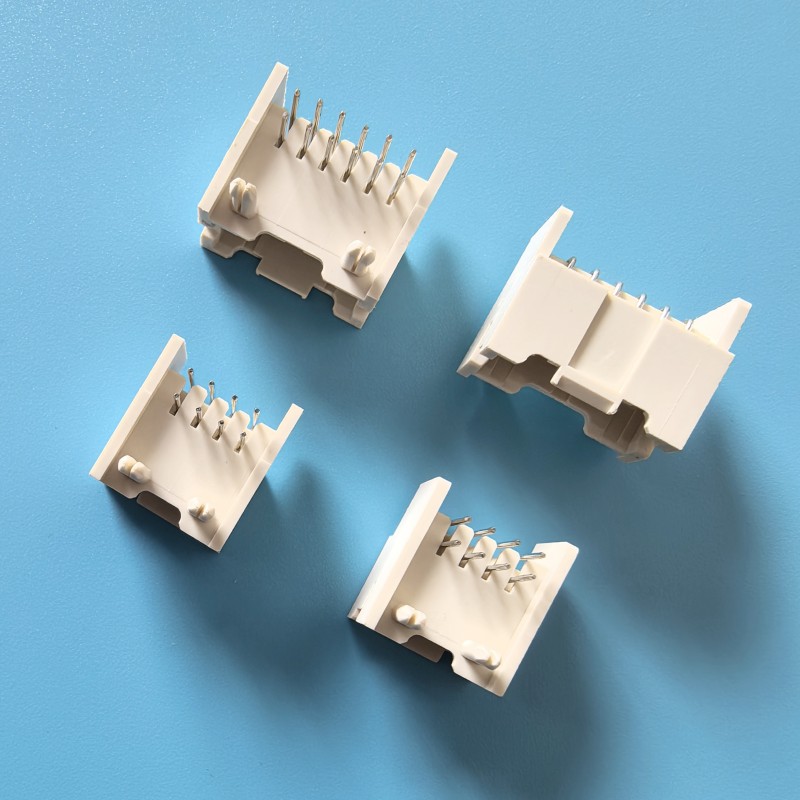

DIP pin base main material: PA66 94V-0 White/Beige

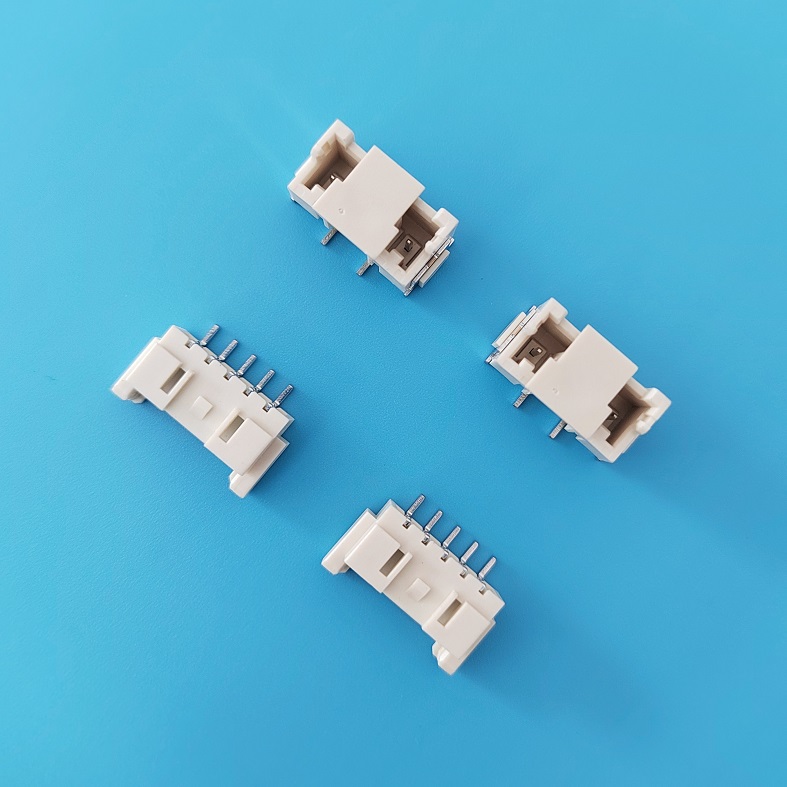

SMT pin body material: LCP-94V-0 natural color
PIN material: brass tin plated
Pin holder ground disc material: brass tin plated
