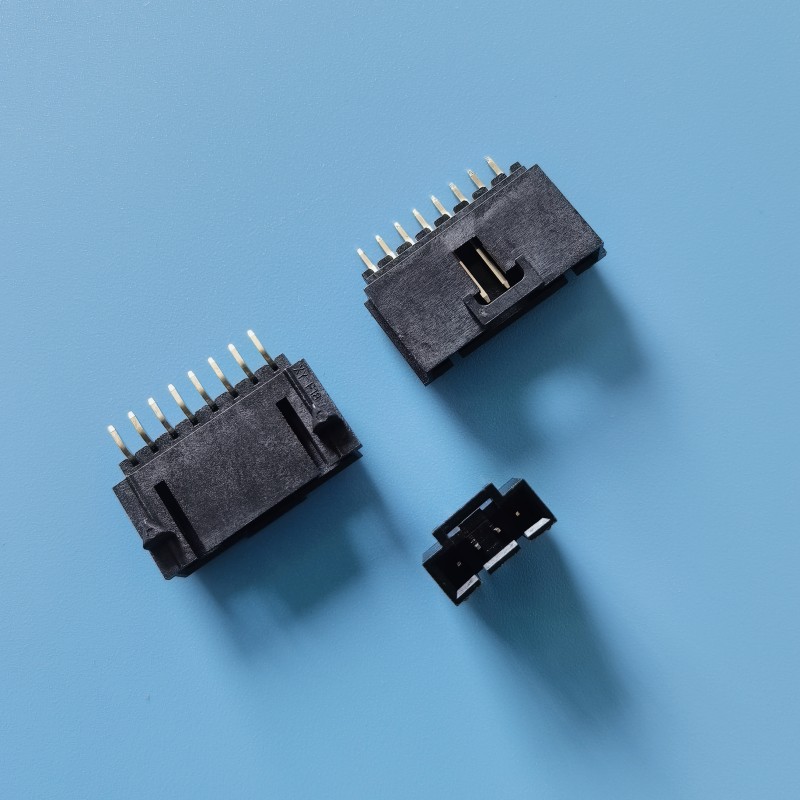

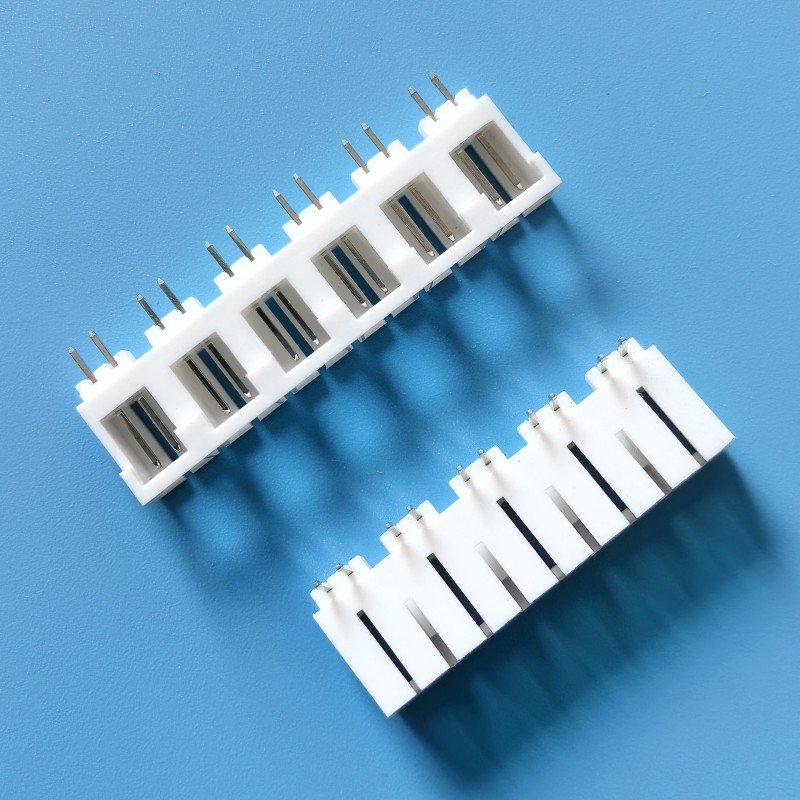

A2541(70066)alternative CD-RON 2.54 Housing Termminal Wafer Cable
Product detailsSpecifications:
Rated current: 3A AC, DC
Rated voltage: 250V DC
Temperature range: -25 deg C to +105 deg C
Contact resistance: 20m Omega Max.
Insulation resistance: 1000M Omega Min.
Withstand pressure: 1500V AC/minute

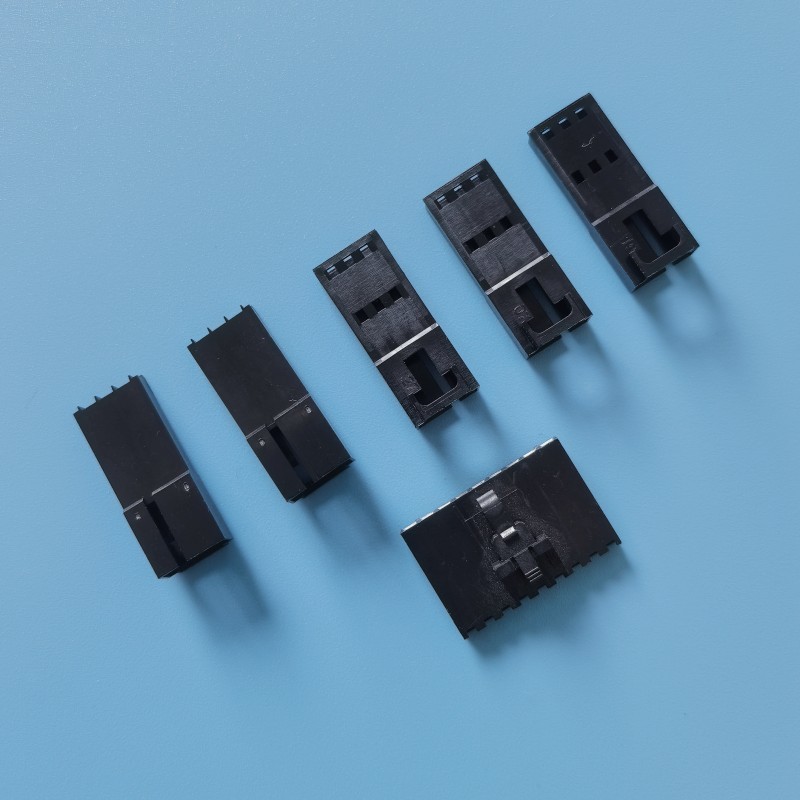

Housing: PA66 94V-0 black

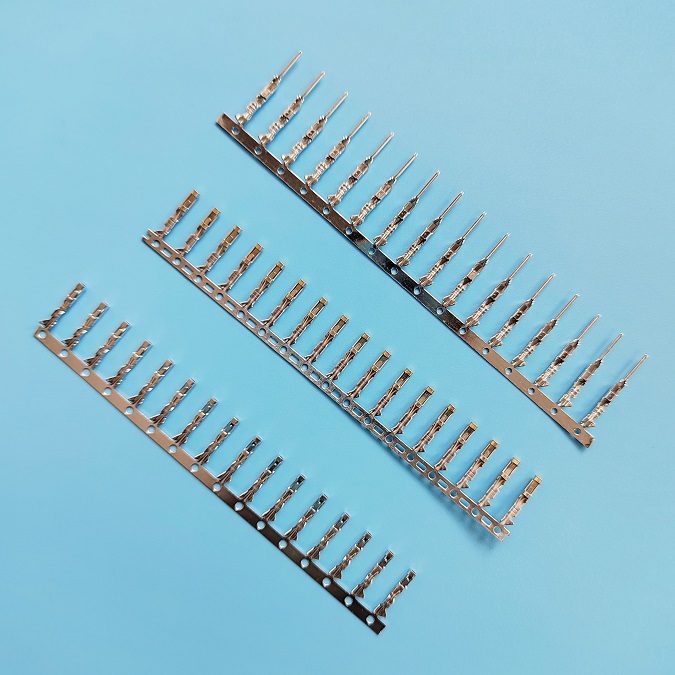

Terminal material: phosphor copper tin plating/gold
DIP pin base main material: PA66/PA9T 94V-0 black/White
SMT pin body material: PA9T 94V-0 black
PIN material: brass tin plated/gold
