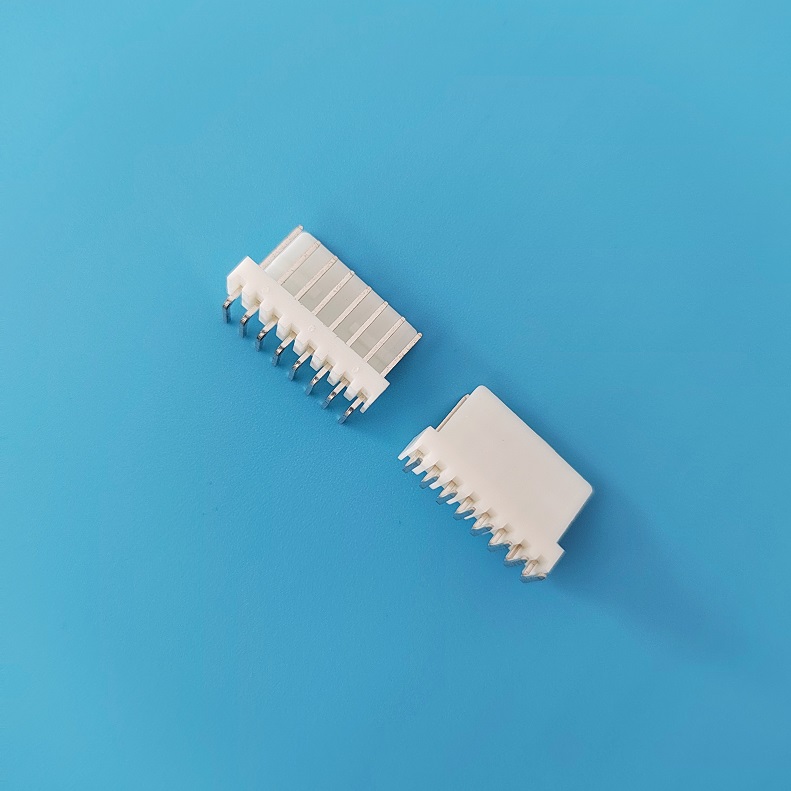

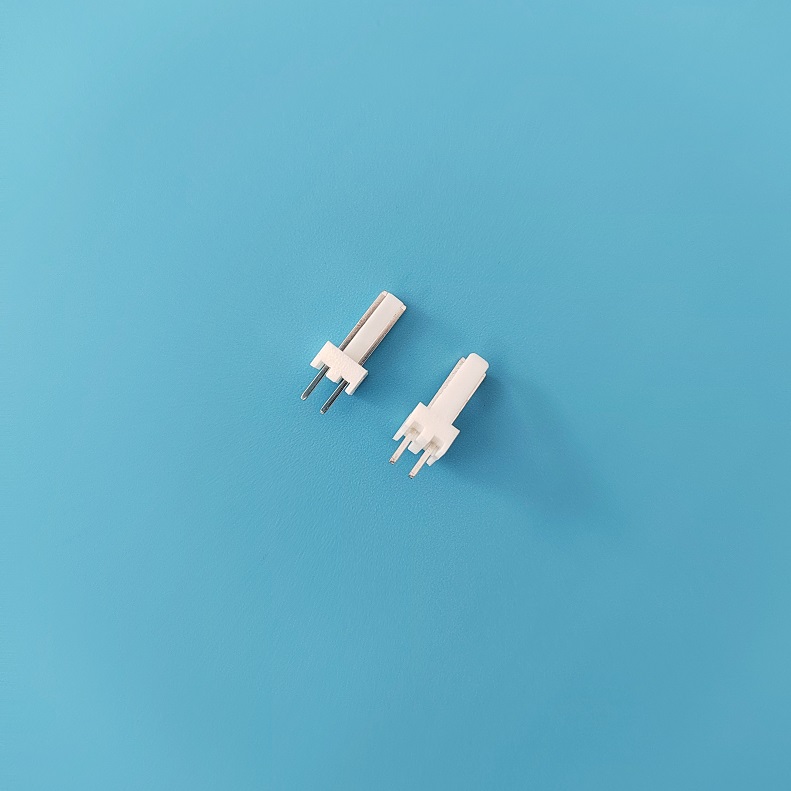

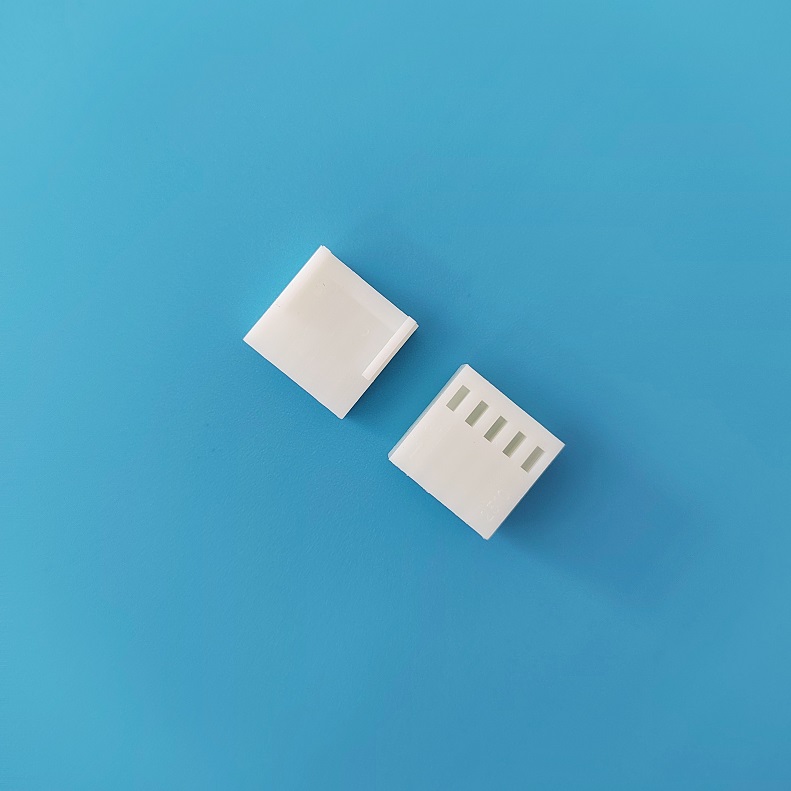

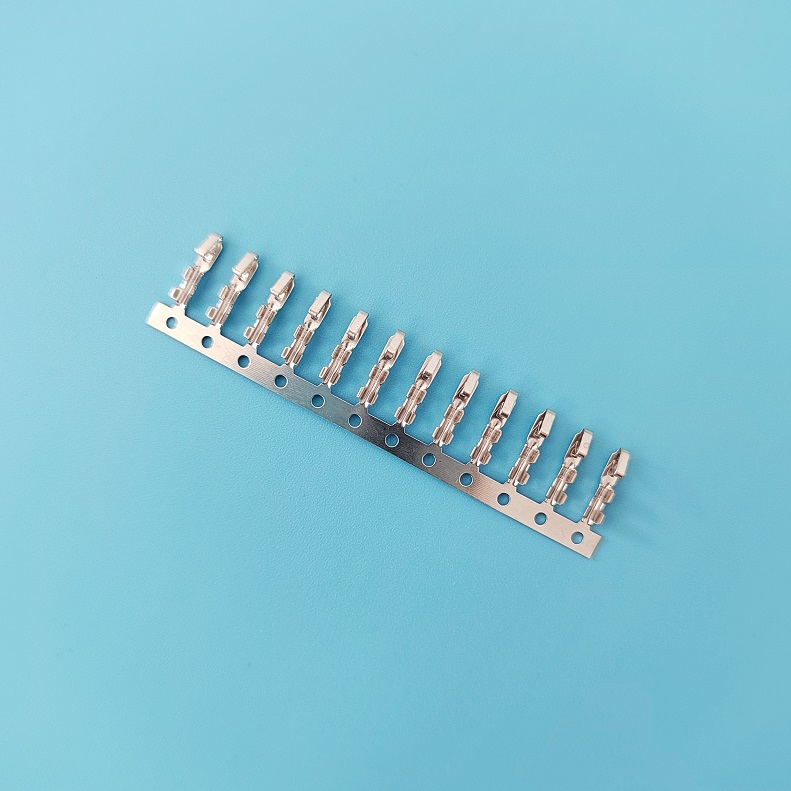

A2542(2510)alternative 2510 2.54mm Housing Terminal Cable Wafer
Product detailsSpecifications:
Rated current: 4A AC, DC
Rated voltage: 250V DC
Temperature range: -40 deg C to +105 deg C
Contact resistance: 20m Omega Max.
Insulation resistance: 1000M Omega Min.
Voltage: 1000V AC/minute
Housing: PA66 94V-0 White/black/beige/brown
Terminal material: phosphor copper tin/gold plated
DIP pin body material: PA66 94V-0 white/black/beige
PIN material: brass tin plated
