A2506(NH)alternative NH Pitch 2.50mm Housing Terminal Cable Wafer
Product detailsSpecifications:
Rated current: 3A AC, DC
Rated voltage: 250V DC
Temperature range: -40 deg C to +105 deg C
Contact resistance: 20m Omega Max.
Insulation resistance: 1000M Omega Min.
Withstand pressure: 1000V AC/minute
Housing: PA66 94V-0 White

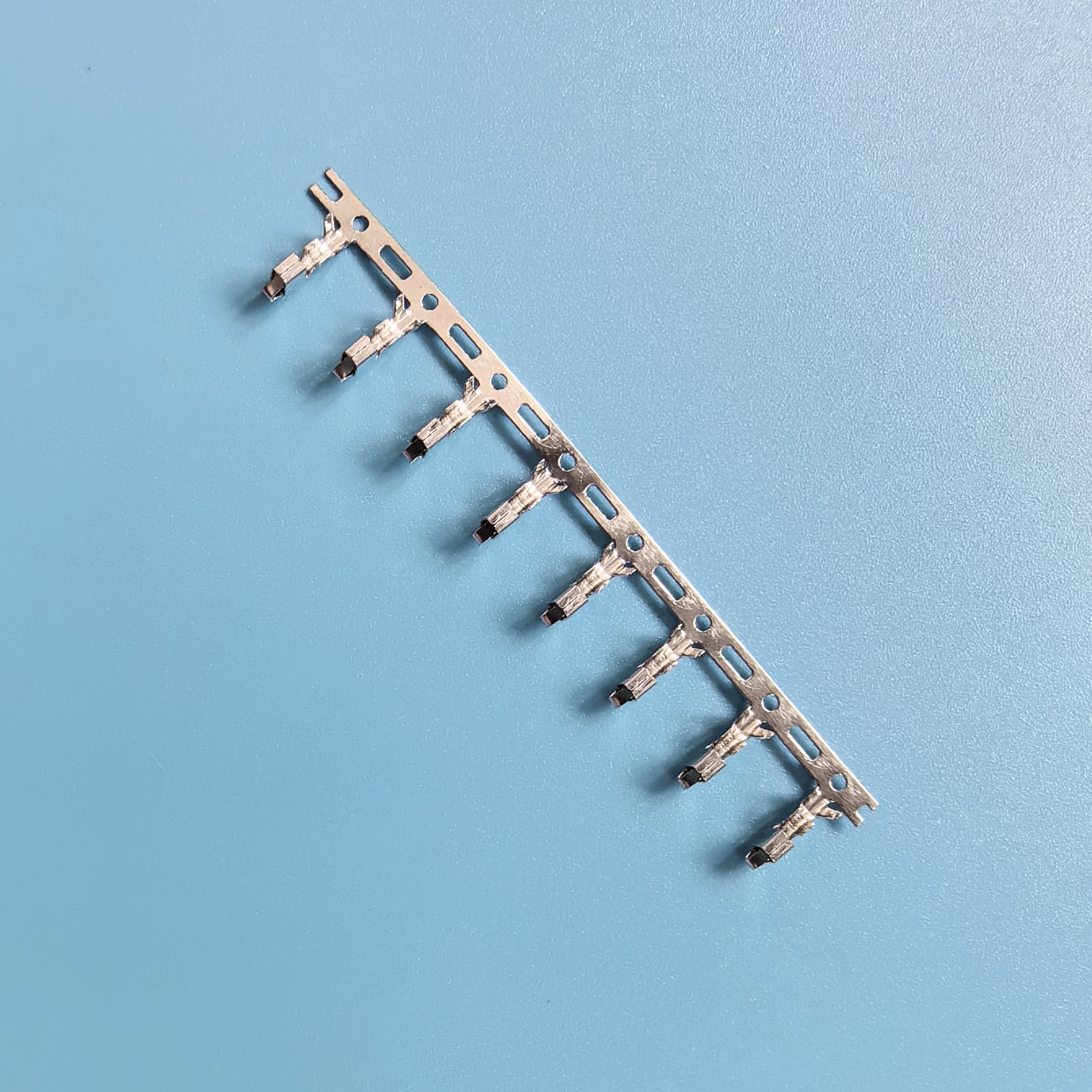

Terminal material: Phosphor tin plated

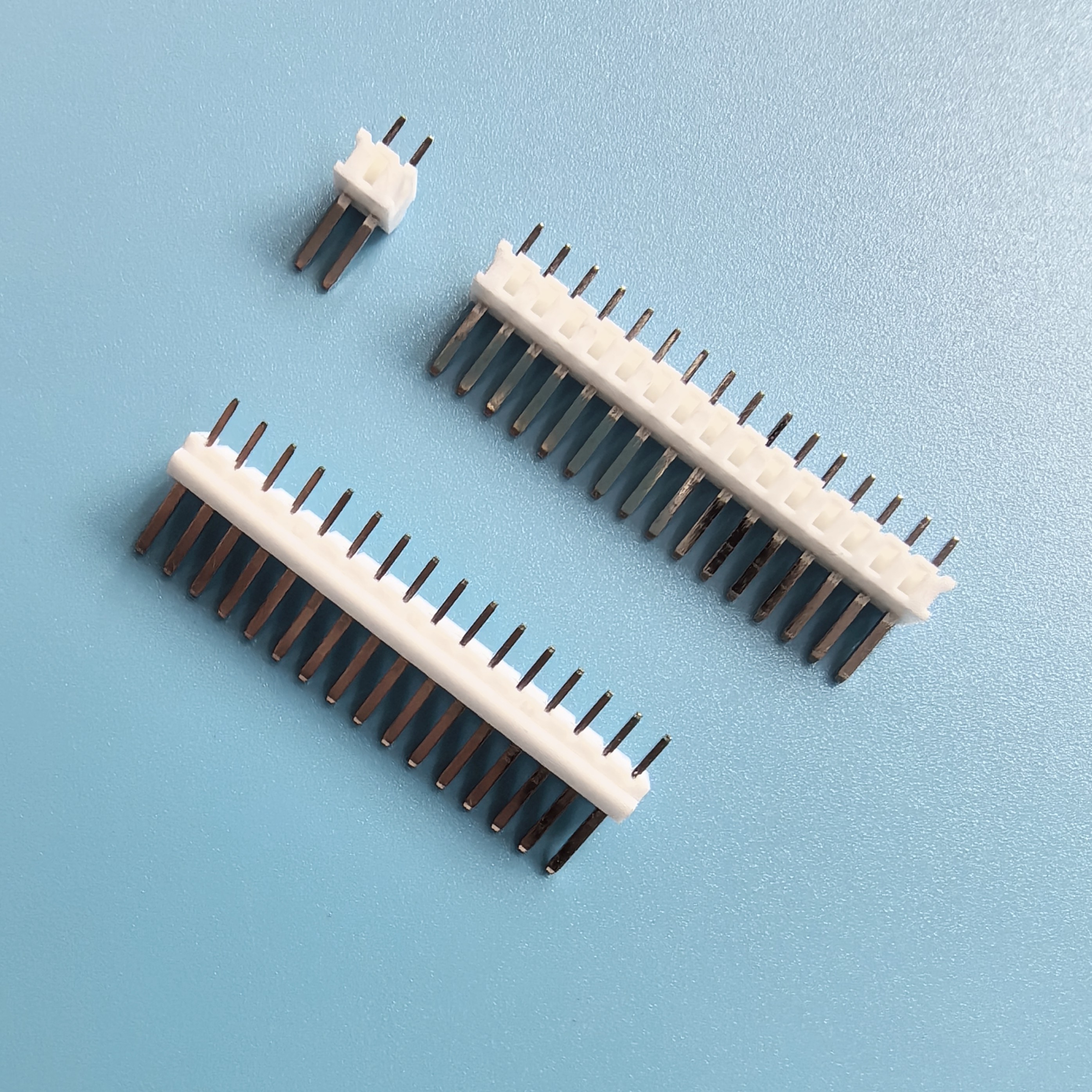

DIP pin body material: PA66 94V-0 White
PIN material: brass tin plated
