A3961(VH) alternative VH 3.96mm Housing Terminal Wafer Cable
Product detailsSpecifications:
Rated current: 7A AC, DC
Rated voltage: 250V DC
Temperature range: -25 deg C to +105 deg C
Contact resistance: 20m Omega Max.
Insulation resistance: 1000M Omega Min.
Withstand pressure: 1500V AC/minute
Plastic shell material: PA66 94V-0 natural color

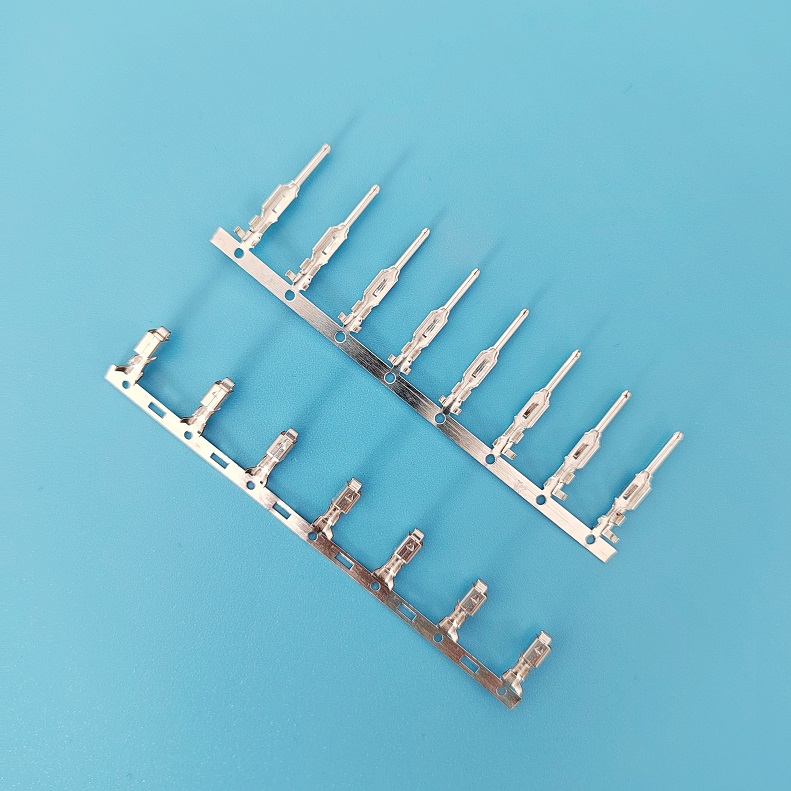

Terminal material: phosphor copper tin plating

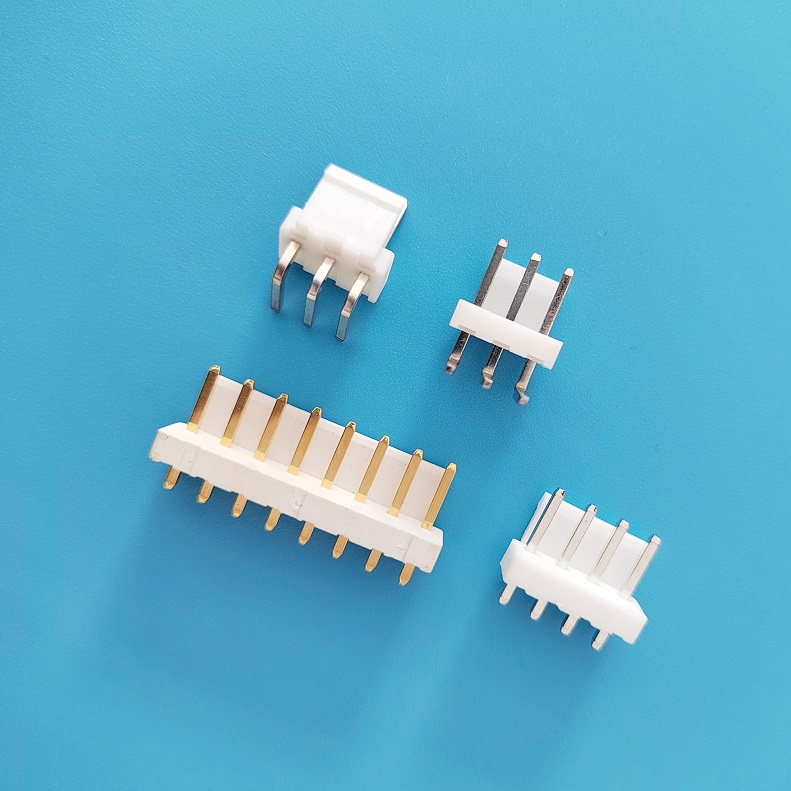

DIP pin body material: PA66/PA46-94V-0 Natural color

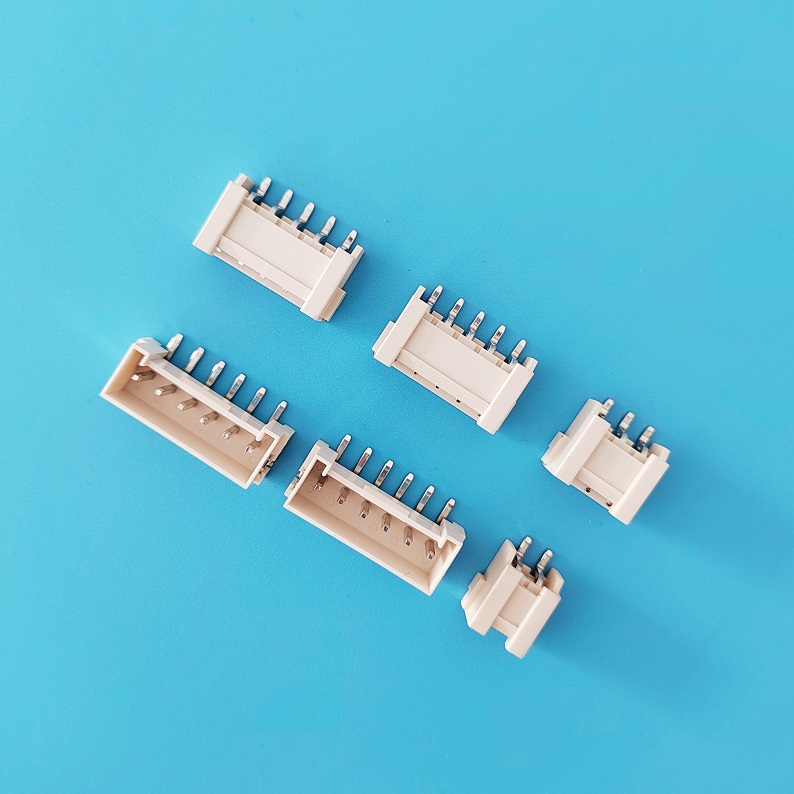

SMT pin body material: LCP-94V-0 natural color
PIN material: brass tin plated
