B3960(SDN)alternative SDN 3.96mm Housing Terminal Cable

Specifications:

Rated current: 7A AC, DC

Rated voltage: 250V DC

Temperature range: -40 deg C to +105 deg C

Contact resistance: 20m Omega Max.

Insulation resistance: 1000M Omega Min.

Voltage: 1500V AC/minute

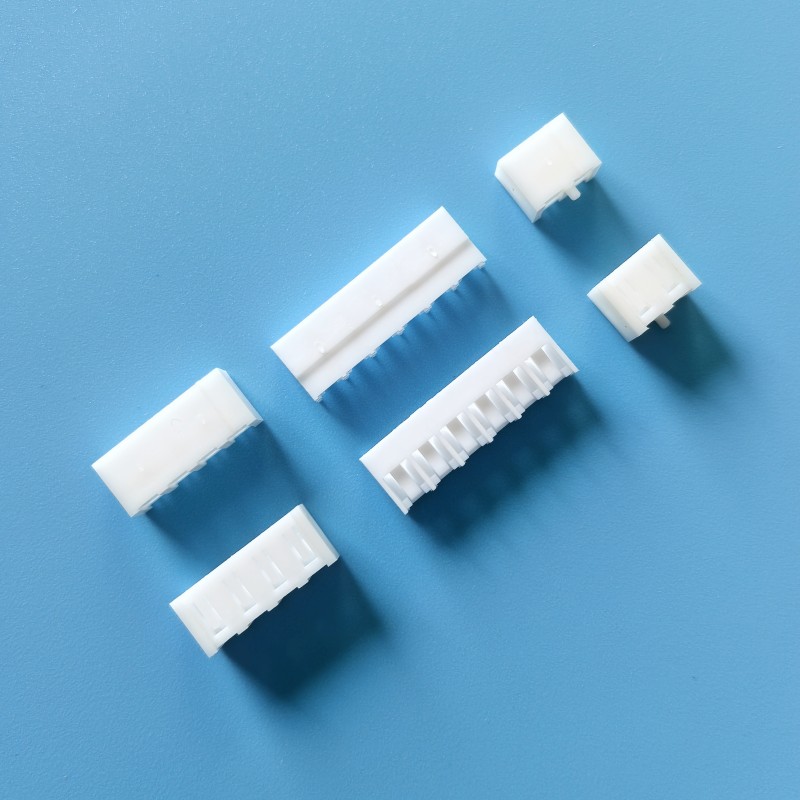

Housing: PA66 94V-0 White

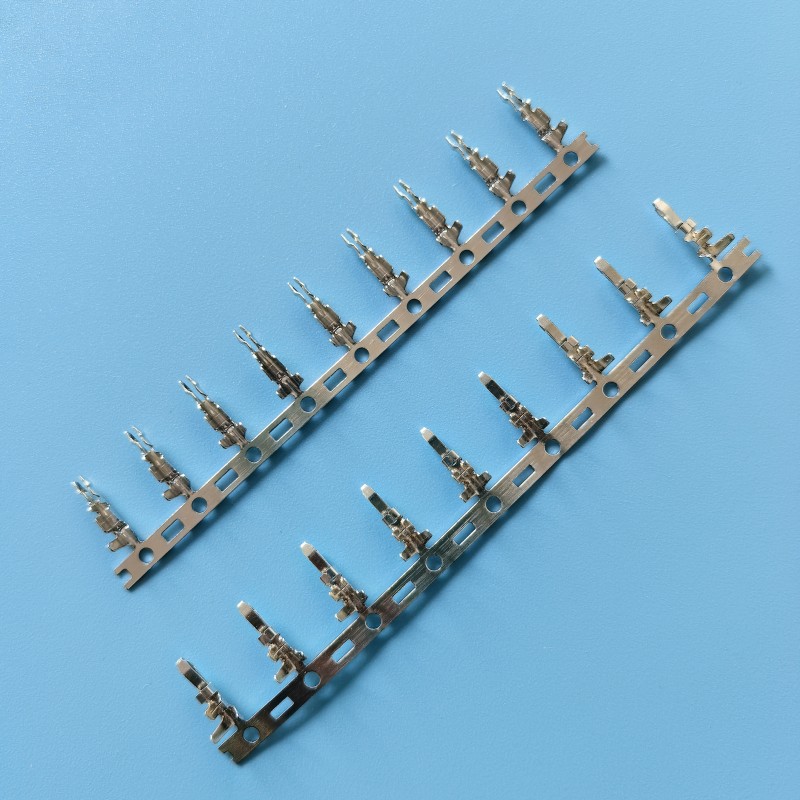

Terminal material: phosphor copper tin plating
