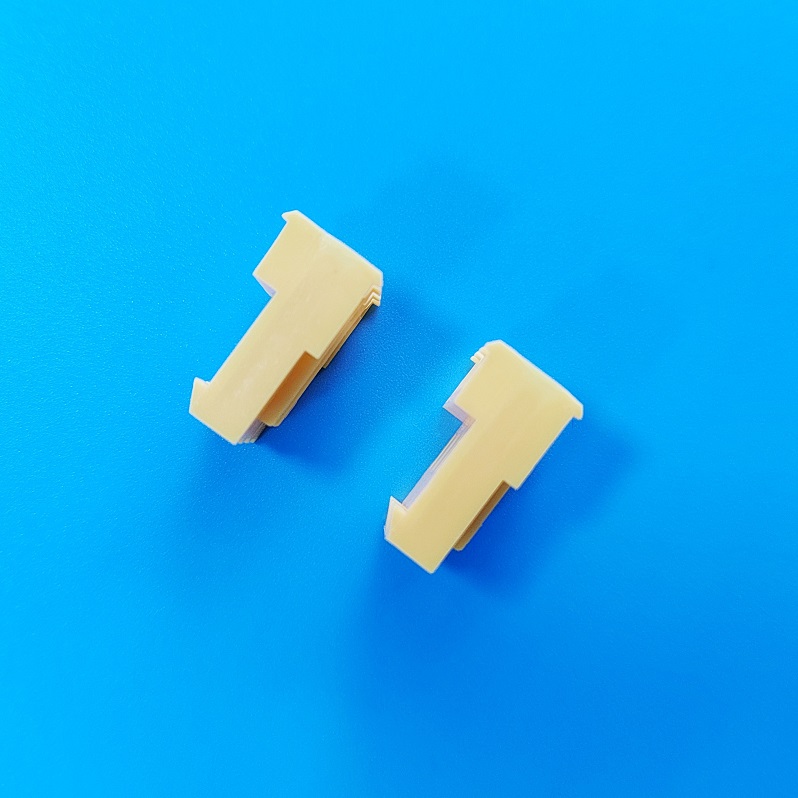

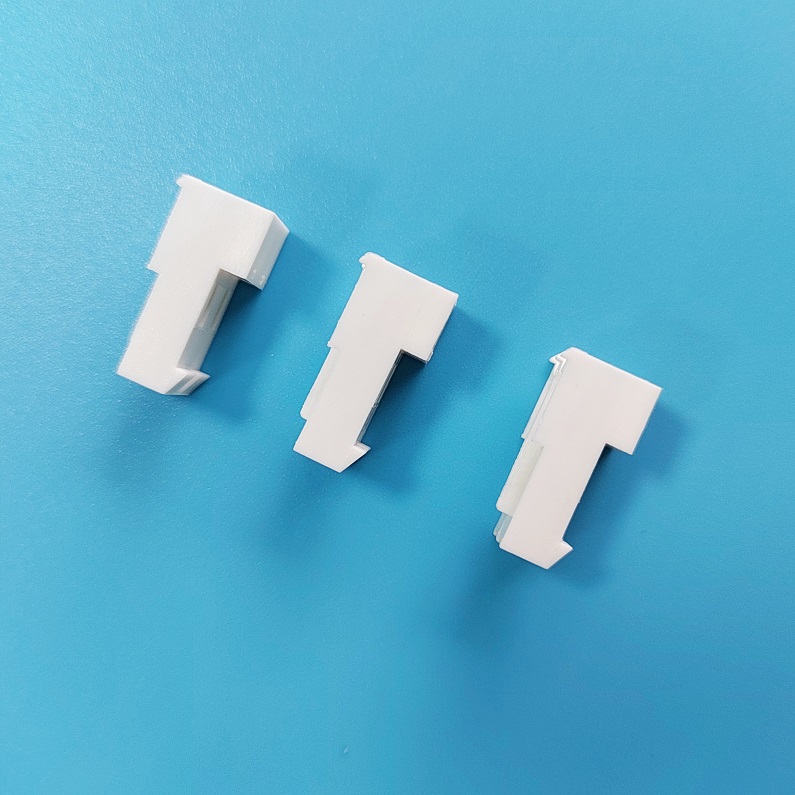

A3962 IDC 3.96mm Housing alternative 3.96

Product details

Specifications:

Rated current: 7A AC, DC

Rated voltage: 600V DC

Temperature range: -40 deg C to +105 deg C

Contact resistance: 20m Omega Max.

Insulation resistance: 1000M Omega Min.

Withstand pressure: 1500V AC/minute

Plastic shell material: PA66 94V-2 white/Red/Orange/Yellow

Gap:PA66 94V-2 Transparent

Terminal material: phosphor copper tin plating and SN+GF

DIP pin body material: PA66 94V-2 color White/Black

PIN material: brass tin plated
